Windows 10: Can not get partition back

Discus and support Can not get partition back in Windows 10 Network and Sharing to solve the problem; Hello! I was attempting to make a partition Drive D: so I could clone our PC onto our laptop. Ended up not needing it. I followed the steps given... Discussion in 'Windows 10 Network and Sharing' started by HornandoSpanwa, Mar 4, 2021.

  1. Can not get partition back


    Hello!


    I was attempting to make a partition Drive D: so I could clone our PC onto our laptop. Ended up not needing it.

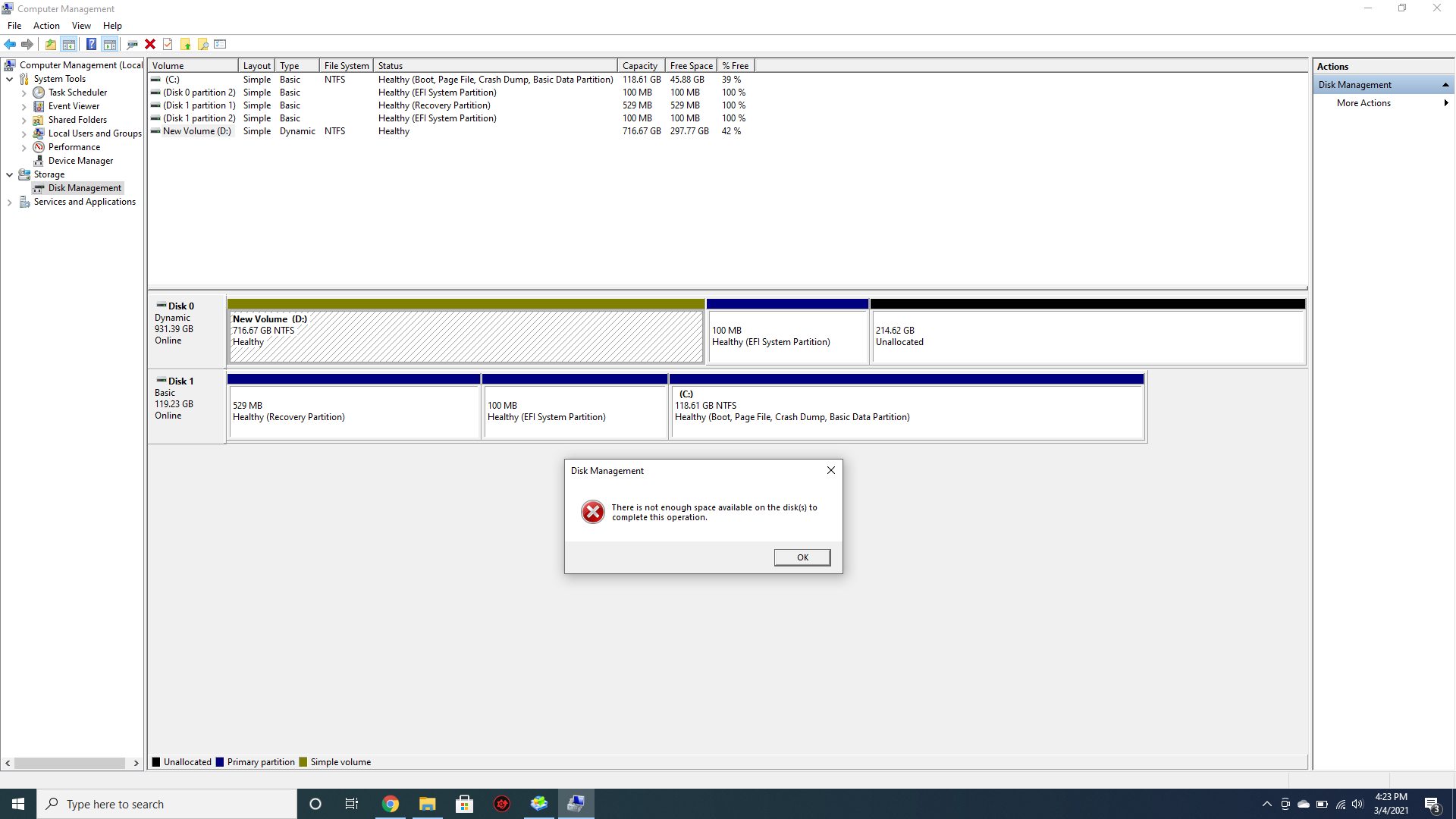

    I followed the steps given by a YouTube video https://www.youtube.com/watch?v=pdHjolzl7Gk&t=33s and followed them triple checking every action as well to reverse the partitioning again triple checking but ended up with the issue shown below. When I right click on the Unallocated partition the only option I'm given is "New Simple Volume". I've tried that and I get the same message. I hate to have that much space unusable. Any help would be great!!


    Can not get partition back e751552f-534d-4dbb-b6c9-e1e1c7ac076d?upload=true.png

    :)

    HornandoSpanwa, Mar 4, 2021
    #1
  2. W1zzard Win User

    W7 Hard drive partition issue

    to get rid of that 100 meg windows partition that setup creates for you on a new install on a blank hdd:

    - press shift+f10 when on the partition management screen in setup <-- this opens a command prompt
    - diskpart <-- start the windows command line partition management tool
    - list disk <--- list the installed hdds in this computer for the next step
    - select disk 0 <- might have to replace 0 with the number of the correct disk
    - clean <-- this will erase all data on the disk you selected one step up- dont use the wrong disk!
    - create partition primary <- creates a primary partition taking up all space on the drive, adjust the command if necessary
    - exit, exit to exit diskpart and the command prompt
    - click refresh in partition manager and select your newly created partition and install to that

    W1zzard, Mar 4, 2021
    #2
  3. Help! Data partition not showing under my computer

    This is happening on a windows 2000 server. Our second partition of the system, for data is not showing under my computer. Here are the properties of it in disk management:


    Can not get partition back partition.jpg


    Now under logical drives its listed as F and shows free space available.

    Suggestions on how to fix this?

    Hybrid_theory, Mar 4, 2021
    #3
  4. Can not get partition back

    hard partition

    Hi Prasad,

    Thank you for posting in Microsoft Community.

    I understand that you are trying to extend the Volume of Drives and create partitions from C: drive.

    I would suggest you to follow the steps and check if it helps you.

    • Press Windows + R keys, type diskmgmt.msc hit
      enter.
    • Disk management will open. Right click on the C: drive
      below in the segments of the partitions.
    • Select Shrink Volume. Select the Amount of space
      you want to extend in MBs (1GB = 1024MB).
    • Follow the instruction and check if it creates a Unallocated Drive.
    Later after the Unallocated drive is created follow the below steps to crate a partition.

    • Right click on the Unallocated drive and select
      New Simple Volume.
    • Select the Drive letter and follow the instructions and check if it
      creates a partition.
    • Follow the same to Create partition.
    Note: C: drive must be not less than 100GB if you are using a 1TB hard drive. partitions must not be more than 3 drives to have a better functioning of the system.

    Keep us posted to help you better.

    Sachin Venkatesh, Mar 4, 2021
    #4
