Windows 10: Cannot backup system image to internal HD

Hi,


I am trying to save a "system image" to my "E" drive but Windows does not detect it in the process.


Can someone help me?

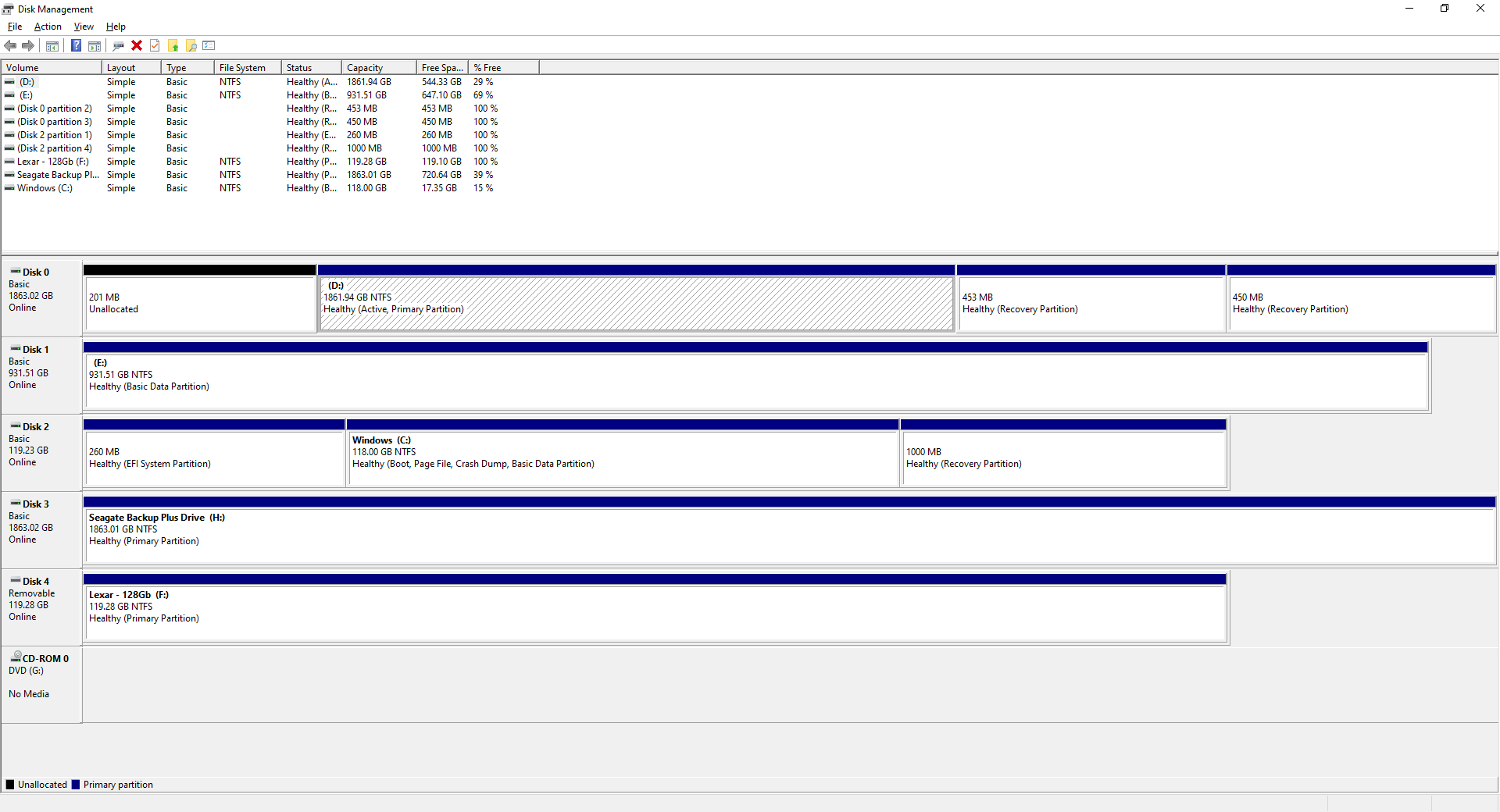

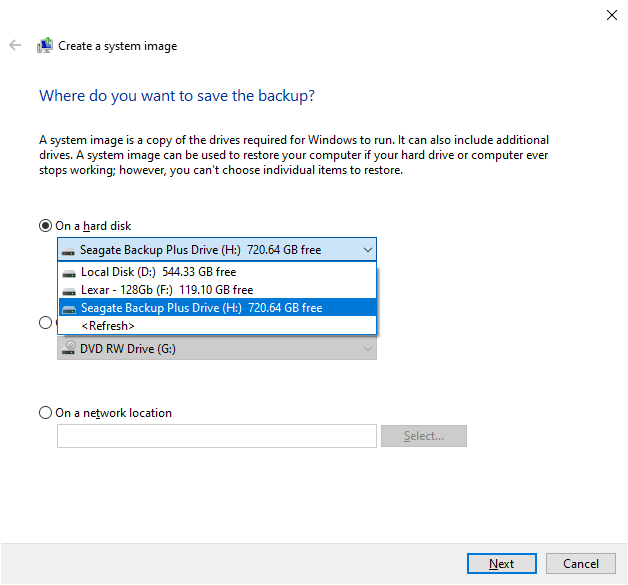

You will find below screenshots that be may help diagnose the problem.









Thanks in advance,

:)



System Image Backup question. "Internal Error"

I just upgraded to Windows 10 from 7. I also upgraded my WD My Book HD for a WD MyCloud. I am now trying to create a system image backup on the new device. When I click on the System Image Backup icon, I get "Internal Error. The specified resource name
cannot be found in the image file. 0x80070716". I have read and tried previous solutions to this issue and nothing works. What can I do now?



Restoring Windows 10 Image using Macrium Reflect


In addition to the above. Here's my suggestion in step by step.
I assume you have Macrium Installed in your current HD and already made a backup copy.

1. Connect your new HD via USB port and boot up.
2. Run Macrium, click on Restore tab then select the Backup Image that you made to restore
3. click on "select a different target disk" then select your new HD as destination



4. Proceed to restore then Shutdown and disconnect the old HD and replace with the new HD
5. Boot up with your new HD.



Creating a System Image backup - keeps looping

Hi,

Thank you for giving us an opportunity to assist you with the query.

I understand the inconvenience caused, now that you have me with you let me take care of this.

The system image is exactly like the mirrored copy of the Operating System which contains the configuration of the Operating System. When you create backup system image your windows 10 comes back to the same position at when the image was created earlier.

As an initial step, I suggest you to make sure that the services required for backup to run successfully is enabled. Refer to these steps:

•
  Press Windows + R
  keys, type services.msc and press Enter.

•
  In the services window, locate the services
  File history service and the Volume shadow copy service and check if they are running.

•
  If they are not running, right-click and select
  Start to manually start the service.

•
  Check if you are able to create a backup now.


Step 1: I suggest you to follow the steps from the below article created by

Andre Da Costa and check if it helps.

How to: Create a system image in Windows 10

How to: Create a system image in Windows 10

Step 2: If the issue still persists, I suggest you to boot the computer in a clean boot state and then check.

Booting the computer in a clean boot state can reduce software conflicts and help identify the root cause of the issue. You can refer to this article for more information:

http://support.microsoft.com/kb/929135

Note: After troubleshooting, reset the computer to start as usual. Refer to the step
How to set the computer to start as usual after clean boot troubleshooting under more information.

Hope it helps.

Let us know the status, we are glad to assist you further.
