Windows 10: Cannot boot from fresh install SSD

Discus and support Cannot boot from fresh install SSD in Windows 10 BSOD Crashes and Debugging to solve the problem; I bought SSD Samsung 860 evo recently and I want to use it to store the OS instead of my old HDD I try using the application out there to migrate OS... Discussion in 'Windows 10 BSOD Crashes and Debugging' started by puttimeth suppawawisit, Jan 3, 2021.

  1. Cannot boot from fresh install SSD


    I bought SSD Samsung 860 evo recently and I want to use it to store the OS instead of my old HDD

    I try using the application out there to migrate OS but there's sector problem so I decide to fresh install


    I did just like the forum said, first I create bootable device which is USB and go to BIOS, I clean the SSD and install windows 10 without any error


    But the problem is when I try to boot from SSD, it show the black screen with cursor and then cut to the bootable device. If I'm not wrong, it's because it cannot find windows right?


    This is the list I have done already.

    - the SSD is already in GPT but the HDD is in MBR and I'm not sure is that a problem

    - I'm using Asrock h310m-hdv as a main board and I just update the BIOS like today, the BIOS have no option for AHCI but from what I search, the default is already AHCI

    - I set the BIOS to UEFI

    - when I install windows, I have only SSD connect to the system

    - secure boot, fast boot is turn off

    - I try switch cable for SSD and HDD and also change port, the result is HDD still working but not for SDD.


    Other Info

    - in the BIOS there's no windows boot manager in the options, it have only the SSD, HDD and bootable device. But I'm not sure is this normal or something because I see in other forum that it's normal to have boot from windows boot manager when dealing with UEFI.

    - I'm pretty sure SSD is not broken because I used it as storage before


    More info

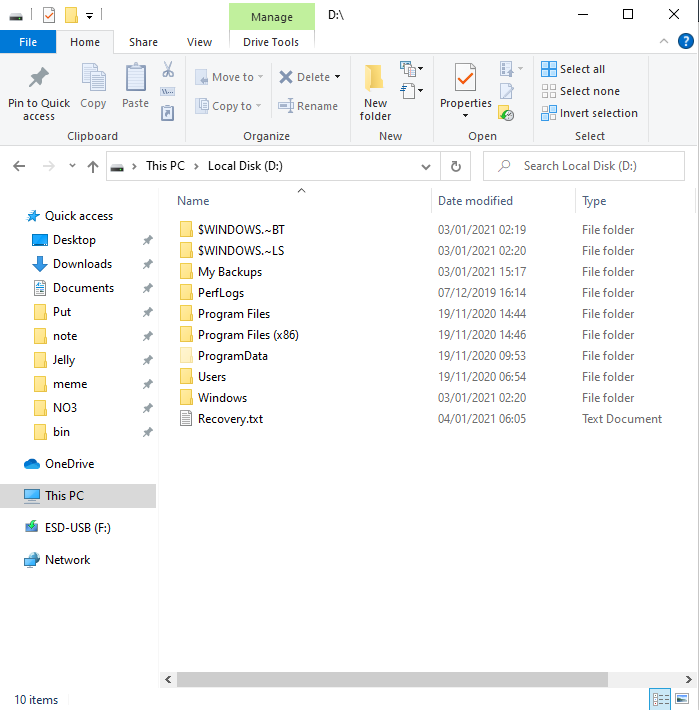

    This is the file system of SSD after I install windows HDD is C:/ and SSD is D:/

    Cannot boot from fresh install SSD d0937d4e-0d06-40b7-a526-8857750bd8d5?upload=true.png


    and this is respond for command 'bcdedit'


    Windows Boot Manager

    --------------------

    identifier {bootmgr}

    device partition=C:

    description Windows Boot Manager

    locale en-us

    inherit {globalsettings}

    default {default}

    resumeobject {78f0c8b7-4c41-11eb-81ec-ec4f121edda8}

    displayorder {default}

    {78f0c8b6-4c41-11eb-81ec-ec4f121edda8}

    toolsdisplayorder {memdiag}

    timeout 30



    Windows Boot Loader

    -------------------

    identifier {default}

    device partition=C:

    path \Windows\system32\winload.exe

    description Windows 10

    locale en-us

    inherit {bootloadersettings}

    allowedinmemorysettings 0x15000075

    osdevice partition=C:

    systemroot \Windows

    resumeobject {78f0c8b7-4c41-11eb-81ec-ec4f121edda8}

    nx OptIn

    bootmenupolicy Standard



    Windows Boot Loader

    -------------------

    identifier {78f0c8b6-4c41-11eb-81ec-ec4f121edda8}

    device partition=D:

    path \Windows\system32\winload.exe

    description Windows 10

    locale en-us

    inherit {bootloadersettings}

    allowedinmemorysettings 0x15000075

    osdevice partition=D:

    systemroot \Windows

    resumeobject {78f0c8b5-4c41-11eb-81ec-ec4f121edda8}

    nx OptIn

    bootmenupolicy Standard


    Thanks in advance.

    :)

    puttimeth suppawawisit, Jan 3, 2021
    #1
