Windows 10: Can't install apps on newly partitioned HDD

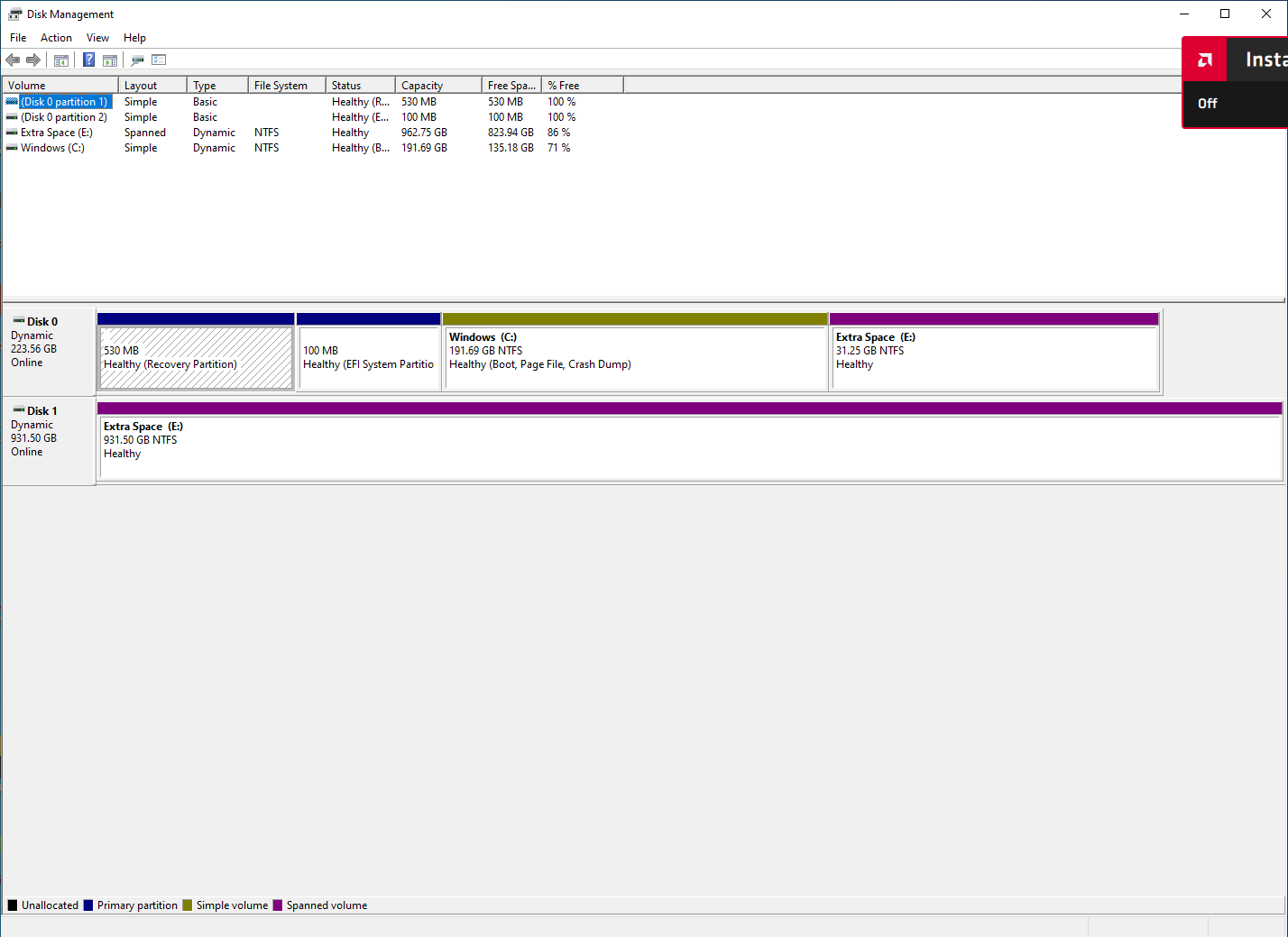

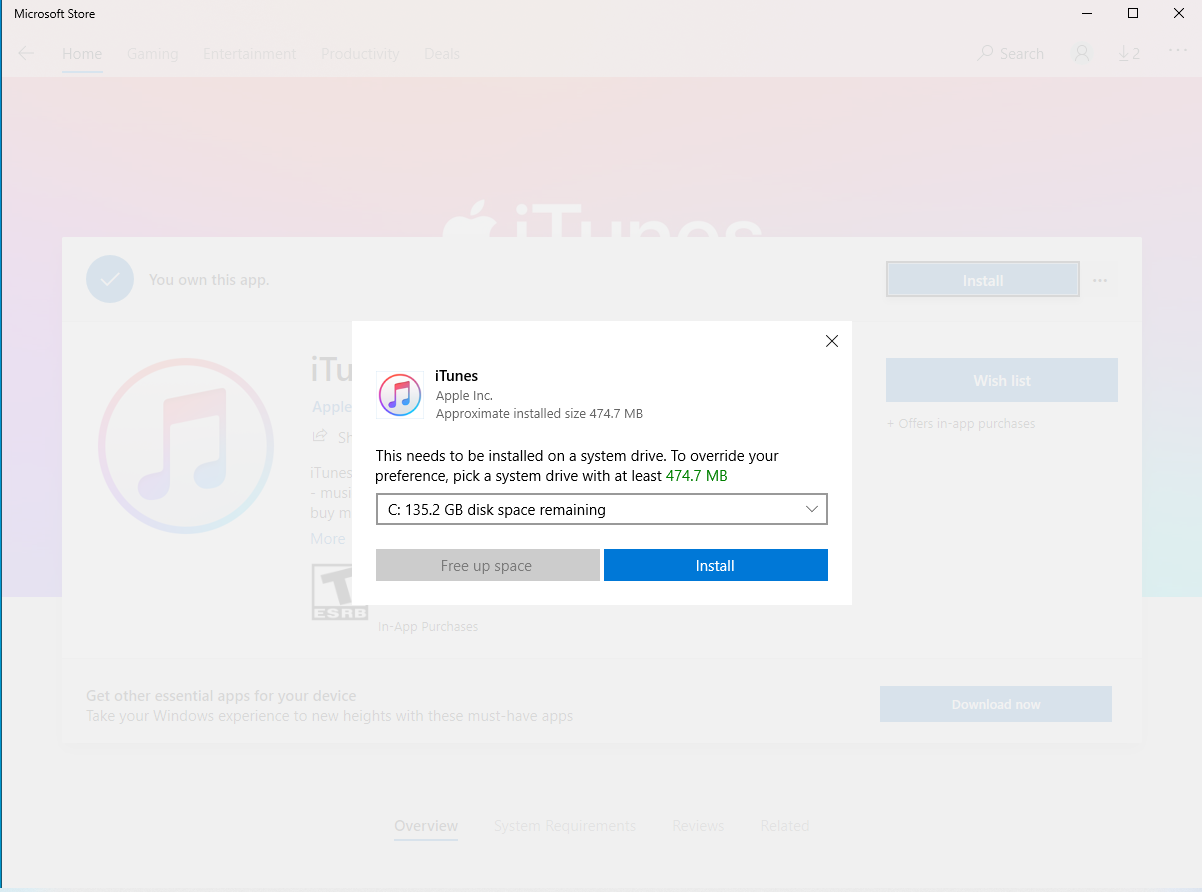

So I got my pc about 3 months ago for school and there were a number of applications they suggested we download. I have a 220 GB SSD and a 1TB HDD. As expected, I quickly started to run out of space on my SSD where my bootup files were stored along with most my other data. I went to my storage settings and set my E: drive to have all new data and apps to store there instead of my C: drive. But new data still continues to save to my C: drive and my PC crashes at least twice a day.. I need help bad for anyone who can assist me. I am attaching two screenshots, one of my partitioned drives and another of me trying to download itunes on my pc and the C: is the only drive it is allowing me to save it in.



:)



W7 Hard drive partition issue

to get rid of that 100 meg windows partition that setup creates for you on a new install on a blank hdd:

- press shift+f10 when on the partition management screen in setup <-- this opens a command prompt
- diskpart <-- start the windows command line partition management tool
- list disk <--- list the installed hdds in this computer for the next step
- select disk 0 <- might have to replace 0 with the number of the correct disk
- clean <-- this will erase all data on the disk you selected one step up- dont use the wrong disk!
- create partition primary <- creates a primary partition taking up all space on the drive, adjust the command if necessary
- exit, exit to exit diskpart and the command prompt
- click refresh in partition manager and select your newly created partition and install to that



HDD partitions format

Used a tool from the list and it worked..
Install won't start if windows can't recognize the partitions.



Unresponsive HDD Partition.

I somehow managed to format the partition & its now unallocated space. Now, I cant create a new partition neither I can allocated that free space to other Partition. Can you suggest a way to repair that space in HDD?

-Thanks
