Windows 10: Corsair Link Not fully detecting CPU

I have almost got this rig running perfectly, it's just this one little teeny weensy tiny issue....

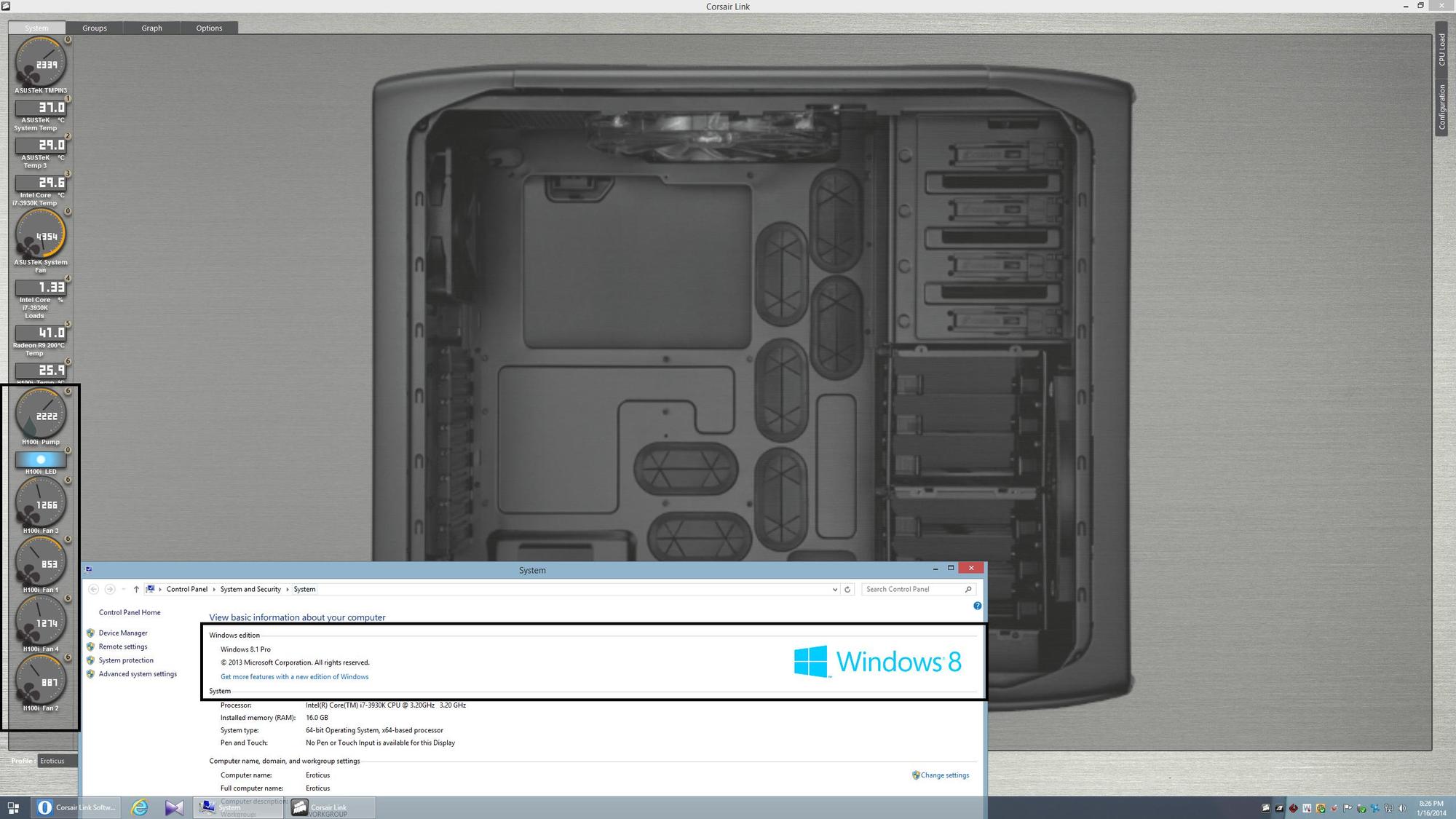

How or what do I have to do to get Corsair link to completely read my cpu?



:)



Corsair Link Software - Windows 8.1 Support

Please Note you must delete any saved Profiles and uninstall the old version and reboot the system before you install the latest software. And some CPU's may not show proper CPU Temp in C-Link application (AMD 6 Core and Intel Haswell CPU's)

Join the v2.5.5145 discussion

12/19/2013 - Corsair Link Software Update BETA Version 2.5.5145

• Windows 8 and 8.1 Support
• CPUID hardware monitoring engine
  • Motherboard fan speeds and temperatures are now shown. Fans from the motherboard are reporting only and cannot be controlled.
  • GPU temperatures for some cards are missing at this time.
• Firmware auto detection at first startup. User selectable option to update or not. Needs minimum versions listed below for detection inside software. Firmware files are part of the install package. No separate download needed.
  • CoolingFW_1.2.8 (Cooling Node)
  • HydroFW_1.2.8 (H80/H100)
  • LightingFW_1.1.9 (Lighting Node)
  • USBFW_2.0.6 (Commander unit)
  • H80i_v1.0.5 (H80i)
  • H100i_v1.0.5 (H100i)
• Tooltips have been added to key panels. This can be turned off in the options panel.
• System tray icon has new functionality for quick reference of displayed data and profile switching.



[FS][US] CPU, NForce4 skt 754 motherboard (with PCI-express slot, rare!), DDR RAM

bump, CPU's stepping is now listed.



Corsair Announces First Corsair Link Kits

Corsair, a worldwide designer and supplier of high-performance components to the PC gaming hardware market, today announced pricing and specifications for the Corsair Link Cooling Kit and the Corsair Link Cooling and Lighting Kit.

Corsair Link is a modular hardware and software system that provides comprehensive monitoring and control of PC cooling and lighting. The two starter packages announced today are complete solutions that allow customers to immediately enjoy the benefits of Corsair Link technology. Customers can then further expand their control with additional peripherals that offer Corsair Link connectivity.









Corsair Link Commander
At the heart of each Corsair Link system is the Corsair Link Commander. Enclosed in extruded aluminum housing and designed to mount into any available 3.5” drive bay, the Corsair Link Commander connects to the PC via USB and provides eight Corsair Link Digital terminals and one analog Corsair Link terminal for non-digital sensors and nodes.

Corsair Link Dashboard
Corsair Link Dashboard is a Windows application that offers at-a-glance parametric monitoring and sophisticated control options. Cooling can be adjusted manually or automatically, with customizable configurations to provide exactly the right balance of fan noise and system cooling performance for the customer’s needs. Lighting can be set to fixed colors, or programmed to change automatically according to system temperature or other parameters.

Corsair Link Cooling Node and Lighting Node
The Cooling Node and the Lighting Node connect to the digital terminals on Corsair Link Commander. The Cooling Node provides five fan control terminals, four sensor terminals, and three temperature sensors. The Lighting Node provides two lighting channels, each of which can control up to 33 LED strips. In addition to software control, integrated buttons allow the user to manually adjust lighting values. Each node is finished in plastic housing and includes cables for connecting to the power supply and the Corsair Link Commander.

Corsair Link Kits — Putting It All Together
The Corsair Link Cooling Kit is a starter package that includes:

• Corsair Link Commander
• One Corsair Link Cooling Node

The Corsair Link Cooling and Lighting Kit includes the above, and adds a Corsair Link Lighting Node and three LED Light Strips. Each light strip contains three RGB LEDs capable of displaying any of 16.7 million colors. Up to 33 strips can be connected together. Customers who start with the Corsair Link Cooling Kit may also purchase the Corsair Link Lighting Node separately. Corsair Link Dashboard is provided as a free download for Corsair Link customers.









Connectivity with Components and Peripherals
Any component with a Corsair Link Digital connector can be added to the Corsair Link system to provide monitoring and control via the desktop. The Corsair Hydro Series H80 and H100 Liquid CPU Coolers, also announced today, connects via Corsair Link Digital to allow precise coolant temperature monitoring and radiator fan control. They join the Airflow Pro in the first group of products to offer Corsair Digital connectivity.

The Hydro Series H60 Liquid CPU Cooler contains an analog Corsair Link connector which allows monitoring of coolant temperature from the desktop.

Corsair plans to publish specifications for the Corsair Link Digital interface, allowing open development of components that can be monitored and controlled by Corsair Link Dashboard.

“Corsair Link is a complete ecosystem of kits and components that will bring a new level of cooling and lighting customization to the PC enthusiast market.” said Ruben Mookerjee, VP and General Manager for Components at Corsair. “Fan and lighting control has traditionally required manual adjustments, and that’s the problem we’re solving. The Corsair Link Dashboard software offers complete on-the-spot or automatic control, and it’s fun to use.”

The Corsair Link Cooling Kit and the Corsair Link Cooling and Lighting Kit will be available from corsair.com and authorized etailers worldwide in July. The Cooling Kit will be available for a US suggested retail price of $99 USD, and the Cooling and Lighting Kit will be available for a US suggested retail price of $139 USD. For more information on the Corsair Link system and compatible components, please visit the Corsair web site.
