Windows 10: DRIVER_POWER_STATE_FAILUREBUGCHECK_CODE: 9f

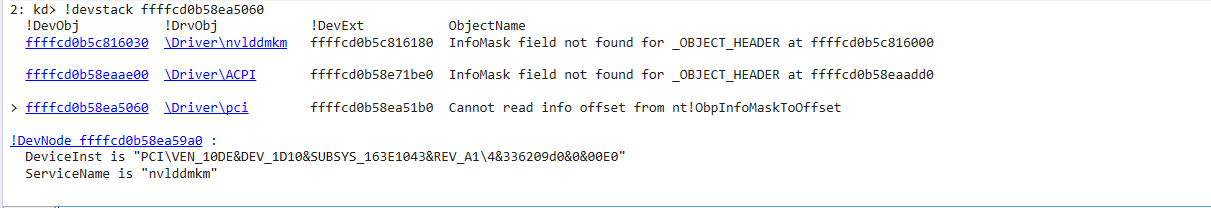

I am facing BSOD DRIVER_POWER_STATE_FAILURE once per day. I think there is some problem with the NVIDIA driver. The NVIDIA driver's version I am currently using is the same as suggested on my manufacturer'sASUS website. Here is the link to the dump file please look into it. In the screenshot, I can see there is some problem with nvlddmkm.sys. Please look into it.

:)



BSOD 9F

I started experiencing the following BSOD error a few days ago. I performed system restore to a date several days before the BSOD started with no success so I did a complete reinstall. Still no success.

Can anyone suggest steps I can take to isolate the problem?

Problem signature

Problem Event Name: BlueScreen

Code: 9f

Parameter 1: 3

Parameter 2: ffffce0ee33d2060

Parameter 3: ffffb58f9c8538b0

Parameter 4: ffffce0ef6e0d9a0

OS version: 10_0_18362

Service Pack: 0_0

Product: 256_1

OS Version: 10.0.18362.2.0.0.256.48

Locale ID: 1033



Thanks in advance!

Larry



DRIVER_POWER_STATE_FAILURE (9f) usbccgp.sys

Hi and thank you for your answer!

I spend the whole night, learning how to read dmp - files.

usbccgp.sys (I also have found a BSOD with UsbHub3.sys) is the one who crashed, but why?

I found this very useful article:

Bug Check 0x9F DRIVER_POWER_STATE_FAILURE - Windows drivers

Sample 1:

• WinDbg -> File -> Open Crash Dump -> c:\windows\minidump\xxx.dmp
• BugCheck 9F, {3, ffff9002b91f86c0, ffffa7018acff960, ffff9002bcd4e9f0}
• UsbHub3.sys

3: kd> !devstack ffff9002b91f86c0

!DevObj !DrvObj !DevExt ObjectName

ffff9002b91f0e20 *** WARNING: Unable to verify timestamp for Wdf01000.sys

*** ERROR: Module load completed but symbols could not be loaded for Wdf01000.sys

\Driver\USBHUB3 ffff9002b91ed310 InfoMask field not found for _OBJECT_HEADER at ffff9002b91f0df0
ffff9002b9218a00 \Driver\ACPI ffff9002b4de38b0 InfoMask field not found for _OBJECT_HEADER at ffff9002b92189d0
> ffff9002b91f86c0 \Driver\USBHUB3 ffff9002b91ef310 Cannot read info offset from nt!ObpInfoMaskToOffset
!DevNode ffff9002b91c4d30 :

DeviceInst is "USB\VID_174C&PID_3074\5&1cc0e58a&0&21"

ServiceName is "USBHUB3"

Google tells me that this may be my onboard USB Hub (Asmedia) of my Asus X99 Mainboard.

It could also be an internal USB Hub of some of my devices.

Im not sure but I think they are connected at the intel usb ports.

The Asus Sabertooth X99 has an additional Asmedia USB3.1 controller, but as far as I know without a hub...

Sampe 2:

• BugCheck 9F, {3, ffffd58f2a7e28d0, ffffac800ddff960, ffffd58f2d8e1580}
• usbccgp.sys

1: kd> !devstack ffffd58f2a7e28d0

!DevObj !DrvObj !DevExt ObjectName

ffffd58f2ad4de20 Unable to load image \SystemRoot\System32\drivers\ocusbvid111.sys, Win32 error 0n2

*** WARNING: Unable to verify timestamp for ocusbvid111.sys

*** ERROR: Module load completed but symbols could not be loaded for ocusbvid111.sys

*** WARNING: Unable to verify timestamp for Wdf01000.sys

*** ERROR: Module load completed but symbols could not be loaded for Wdf01000.sys

\Driver\OCUSBVID ffffd58f2ad4ae10 InfoMask field not found for _OBJECT_HEADER at ffffd58f2ad4ddf0
> ffffd58f2a7e28d0 \Driver\usbccgp ffffd58f2a7e2a20 Cannot read info offset from nt!ObpInfoMaskToOffset

!DevNode ffffd58f2a891260 :

DeviceInst is "USB\VID_2833&PID_0211&MI_00\7&2017bc24&0&0000"

ServiceName is "OCUSBVID"

This is from the Oculus Rift...

With also have an internal USB Hub and is connected to one of the Intel USB ports with internal Hub.

Im not sure if I have done it right, but I try to use the Asmedia USB3.1 ports for Oculus Rift the next days. I also will deactivate all power saving features on the device... Maybe this woraround helps, until all drivers are fixed.

Please correct me, if I have undestand something wrong!

BR!

Mathias



Bugcheck 9F Computer Shutting Down Instead of Standby, ndis.sys


Long time reader, first post.

Recently, Ive noticed my computer shutting down instead of going into standby. This seems to have started a few weeks ago, but I cannot pinpoint the root cause. The bugcheck report lists the error as:

BugCheck 9F, {3, ffffe0005473b060, fffff8022f66d990, ffffe00065e94c10}


Implicit thread is now ffffe000`54297700
Probably caused by : ndis.sys ( ndis!ndisPauseFilterInner+7628 )

Ive searched, but do not know what the cause is. I did a system restore to an earlier date last week and all seemed well for a few days, but the computer shutdown last night instead of going to sleep.

Edit: Im adding that the computer boots up fine when I power it back up and it will restart with no issues. There is no BSOD and the only way I know it shutdown improperly is when Chrome tells me it shutdown and if I look at the event viewer and see when the shutdown occurred.

Any help would be appreciated.
