Windows 10: Excel 2010 Document Inspector reports hidden sheets, not shown in VBA

tpriest · Jul 30, 2019

I have a worksheet with 14 tabs along the bottom. I've had the worksheet for many years - creation date is 16 November 1997 -and it's evolved over time to be more and more useful. Obviously been through many versions of Excel. It has several user functions and VBA procedures.

I'm currently running Excel 2010 and, out of curiosity, decided to run Document Inspector and see what it reported.

All the messages, except one, was what I expected. The exception was that it reported 2 hidden sheets.

I can't what it's referring to. The VBA list of Objects lists the expected 14 worksheets.

I could, having made a copy, let Inspector remove the hidden sheets it's found, but I rather know what they are beforehand.

Any thoughts on how to progress this? Of course it may be a bug in Excel, it may be something left over from previous versions of Excel.

:)

Brink · Jul 30, 2019

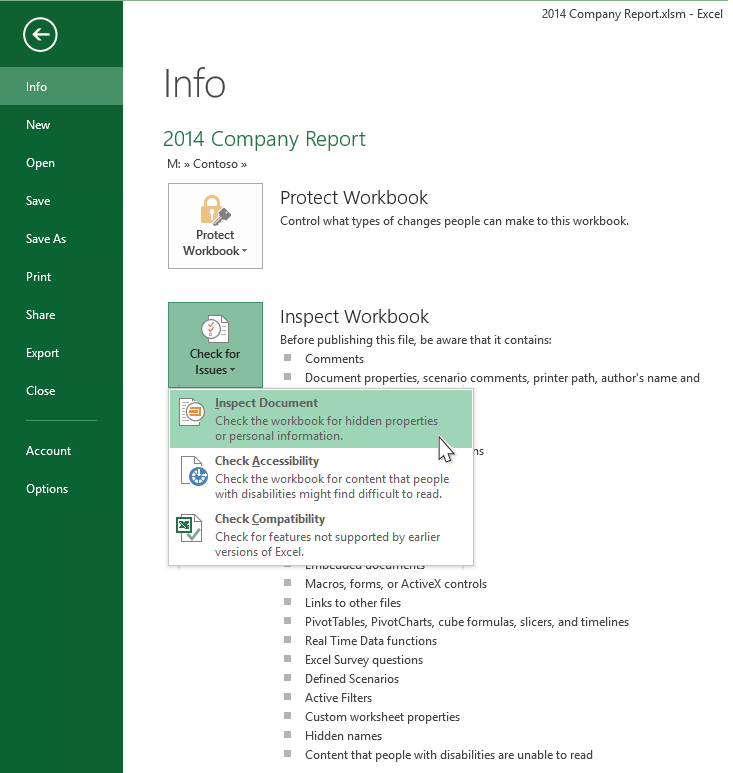

New Document Inspector for Excel, PowerPoint, and Word

Beginning with the November and December 2014 updates for Microsoft Office 2013 and 2010, several enhancements are being added to the Document Inspector, also known as the “Check for Issues” tool in Excel, PowerPoint and Word. The Document Inspector helps you to prepare your documents, presentations, or workbooks for publishing and sharing by checking for items that may contain hidden or private information. In some cases, it will remove such items from your document, in other cases it alerts you even if it can’t automatically remove the items. For more information about the Document Inspector, read about it on Office.com, where there are articles explaining how it works in Excel, PowerPoint and Word.

The updates for Office 2013 and Office 2010 are adding several inspection modules, called inspectors, to Excel, PowerPoint and Word. The list below shows the new inspectors and which Office application they have been added to. Excel has several more new inspectors than PowerPoint and Word —simply because the features being inspected are only found in Excel.

PowerPoint and Word:

Embedded Documents

Macros, forms or ActiveX Controls

Excel:

Embedded Documents

Macros, forms or ActiveX Controls

Links to other files

PivotTables, PivotCharts, Cube Formulas, Slicers and Timelines*
*Timelines are detected only in Excel 2013, because timelines are not supported in Excel 2010.

Real Time Data Functions

Excel Surveys*
*Excel Surveys are only detected in Excel 2013, because Surveys are not supported in Excel 2010.

Defined Scenarios

Active Filters

Custom Worksheet Properties

Hidden Names

Note: Some of the new inspectors may not show up in Excel 2010 with the November and December updates for Office 2010. They will appear in an update in early 2015.

Descriptions of items detected by the new Inspectors
1. Embedded Documents
When you embed a document or an object, the contents of the embedded document may not be visible in the file you’re editing. For example, if you copy a chart from Excel and use the embed paste options to paste it into a PowerPoint slide, you are actually pasting the chart and the underlying Excel workbook into the PowerPoint slide. The chart is visible, but the data associated with the chart and the rest of the workbook may not be visible. However, if you share the presentation with someone, they would be able to open the entire workbook by right-clicking on the chart and selecting Edit Data > Edit the Data in Excel.

2. Macros, forms or ActiveX Controls
Macros (VBA Code), forms, and ActiveX Controls may contain personal or private information that is not readily visible in your document, but someone who goes looking would be able to find it.

3. Links to other files (Excel only)
In Excel, you can link your workbook to other files such that data from those files is shown in your workbook. Some information from the linked files is cached in your workbook, but it may not be visible when viewing in Excel.

4. PivotTables, PivotCharts, Cube Formulas, Slicers and Timelines* (Excel only)
When you use PivotTables, PivotCharts, Cube Formulas, Slicers, or Timelines your workbook may contain cached data which is not visible in the worksheets.
*Timelines are detected only in Excel 2013, because timelines are not supported in Excel 2010.

5. Real Time Data Functions (RTD) (Excel only)
RTD functions can pull data from sources outside the workbook that might change after you share it with someone, so what you thought you were sharing could be quite different from what the other person sees. You can read more about How to set up and use the RTD function in Excel.

6. Excel Surveys* (Excel only)
Excel Surveys are a feature of Excel Online where you can create a survey and then share it to easily collect survey responses from others. If your workbook contains an Excel Survey, you won’t see the survey title and questions in the worksheets unless you’re working in Excel Online, so you may want to know about it before you share the file with anyone.
*Excel Surveys are only detected in Excel 2013, because Surveys are not supported in Excel 2010.

7. Defined Scenarios (Excel only)
If you are using a scenario (Scenario Manager), which is part of the “What If” analysis tools in Excel, the scenario may be storing some private information which is not easily visible. For example, the scenario may contain values that are not visible in the worksheet, and it may also contain the name of the person who created or modified the scenario. If you want to know more about scenarios, read about it on Office.com.

8. Active Filters (Excel only)
When you use filters in your workbook, the filter conditions are cached in the workbook, even if you delete the rows that contain those values. For example, if you have a list of data and you set a filter condition like “contains ‘secret” and then you delete all the rows, you may still see the word “secret” if you look at the filter condition.

9. Custom Worksheet Properties (Excel only)
Worksheets can have custom properties and values which are not visible anywhere in the sheet. These could be created by an add-in or by VBA code. See Office.com for more information about how to create and use custom worksheet The Document Inspector can help you remove all the hidden worksheet properties, and you should be aware that removing them may cause your add-ins or macros to give unexpected results.

10.Hidden Names (Excel only)
In Excel, you can define a Name that represents a cell, range of cells, formula, or constant value. Visible defined Names can be seen in the Name Manager, but there can also be hidden Names, which will not appear in the Name Manager. Hidden Names may be created by an add-in or VBA code, and they may contain private information. See Office.com for more information about hidden defined names.
Final thoughts

The Document Inspector helps you avoid sharing personal or private information when you publish your Excel, PowerPoint and Word documents, and we think it’s a valuable tool, designed to detect many important items where information could be inadvertently shared. Even so, when sharing documents, you should keep in mind that are there items that the Document Inspector is not designed to detect. For example, in Excel you can put data in a far off row or column that you might not see when casually reviewing the spreadsheet, or in Word or PowerPoint, you could cover some data with a picture and forget it’s there.

It’s important to remember that the Document Inspector is not designed to take the place of common workflow processes, such as technical and legal review, peer review and editorial review. It is also not designed as a replacement for converting your document to a format in which, “what you see is what you get.” For example, you might want to save your document in one of the paper-like formats for sharing, such as Open XML Paper Specification (OpenXPS) or the Portable Document Format (PDF), or as a Single-File Web Page document (MHT).

—Steve Kraynak
Click to expand...

Source...

Josje · Jul 30, 2019

Storing Pictures in Excel Sheet

Hi Now,

I posted the following on the MSDN Excel forum, and the answer was that the suggested method (in particular the VBA) is not available.

But perhaps there is another way to accomplish the task?

I would be ever so thankfull for a good suggestion

Jos

PS: A have experience with VBA, VBScript

---- previously posted:

Hi,

My boss wants me to buy a PDA with Windows Mobile 6. The customer sends a

"normal" Excel-sheet of objects to be inspected. After loading into to PDA

the workers have to take a picture of objects that fail inspection. The

picture then has to be linked to the Mobile-sheet by means of a hyperlink.

I think this is possible used a bit of VBA in Excel, but does Excel Mobile

support VBA?

--

Jos

Answer something like,

I think a no to that.

jimbo45 · Jul 30, 2019

Office 2010 Excel: two sheets

Hi there
Just have the 2 different worksheets in one workbook - then just move the sheet you are interested in to the other monitor.

Seemples !!!!

Cheers
jimbo

Windows 10: Excel 2010 Document Inspector reports hidden sheets, not shown in VBA

Excel 2010 Document Inspector reports hidden sheets, not shown in VBA

Excel 2010 Document Inspector reports hidden sheets, not shown in VBA

Excel 2010 Document Inspector reports hidden sheets, not shown in VBA
