Windows 10: Extend volume on C Drive is grayed out, how to merge space from drive D?

Discus and support Extend volume on C Drive is grayed out, how to merge space from drive D? in Windows 10 Network and Sharing to solve the problem; Hi, My C drive is almost full and unable run major applications. I have space on D drive as shown below. When i right click on C drive "Extend Volume... Discussion in 'Windows 10 Network and Sharing' started by Venkat Cheedalla, Aug 1, 2020.

  1. Extend volume on C Drive is grayed out, how to merge space from drive D?


    Hi,

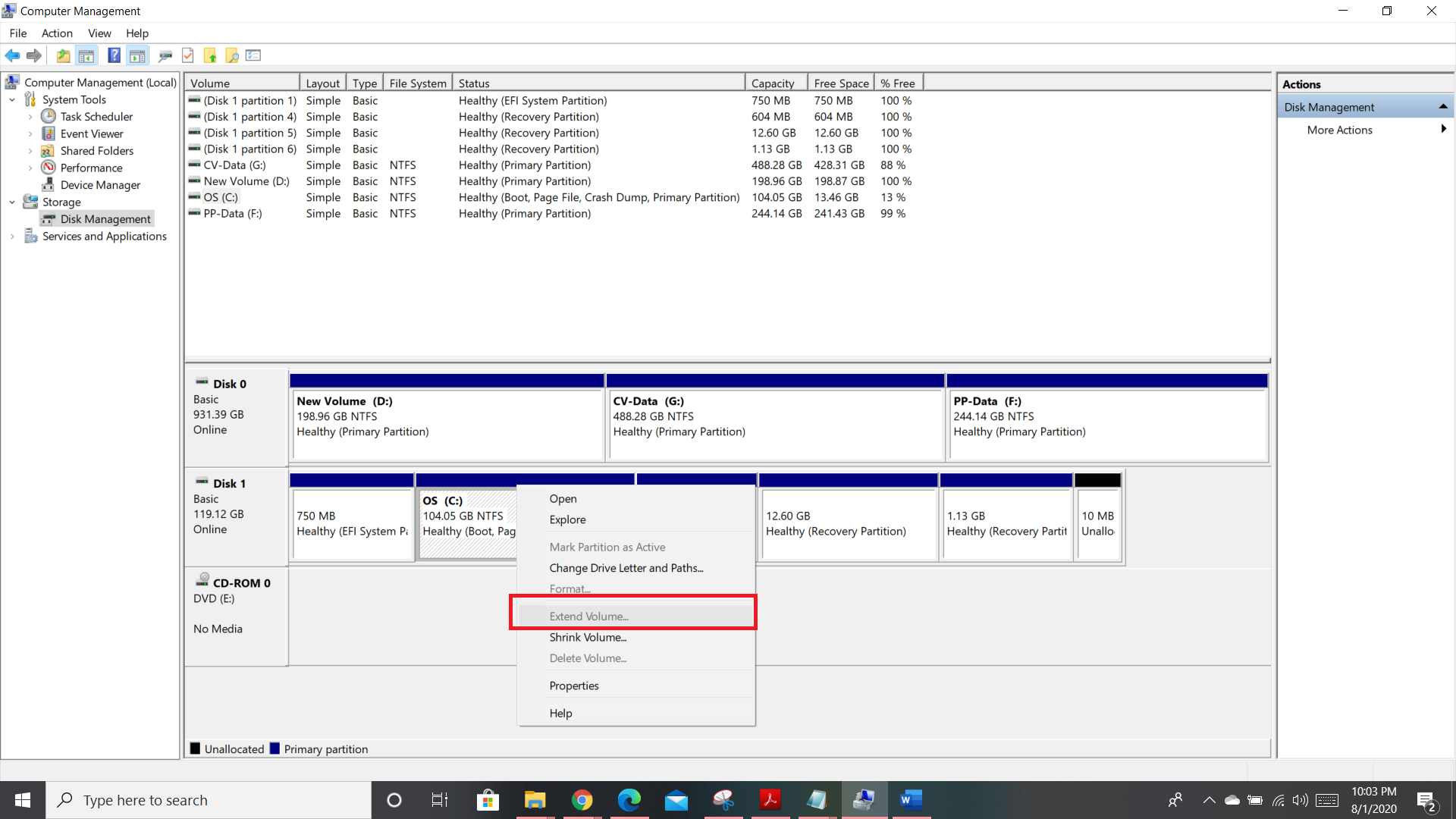

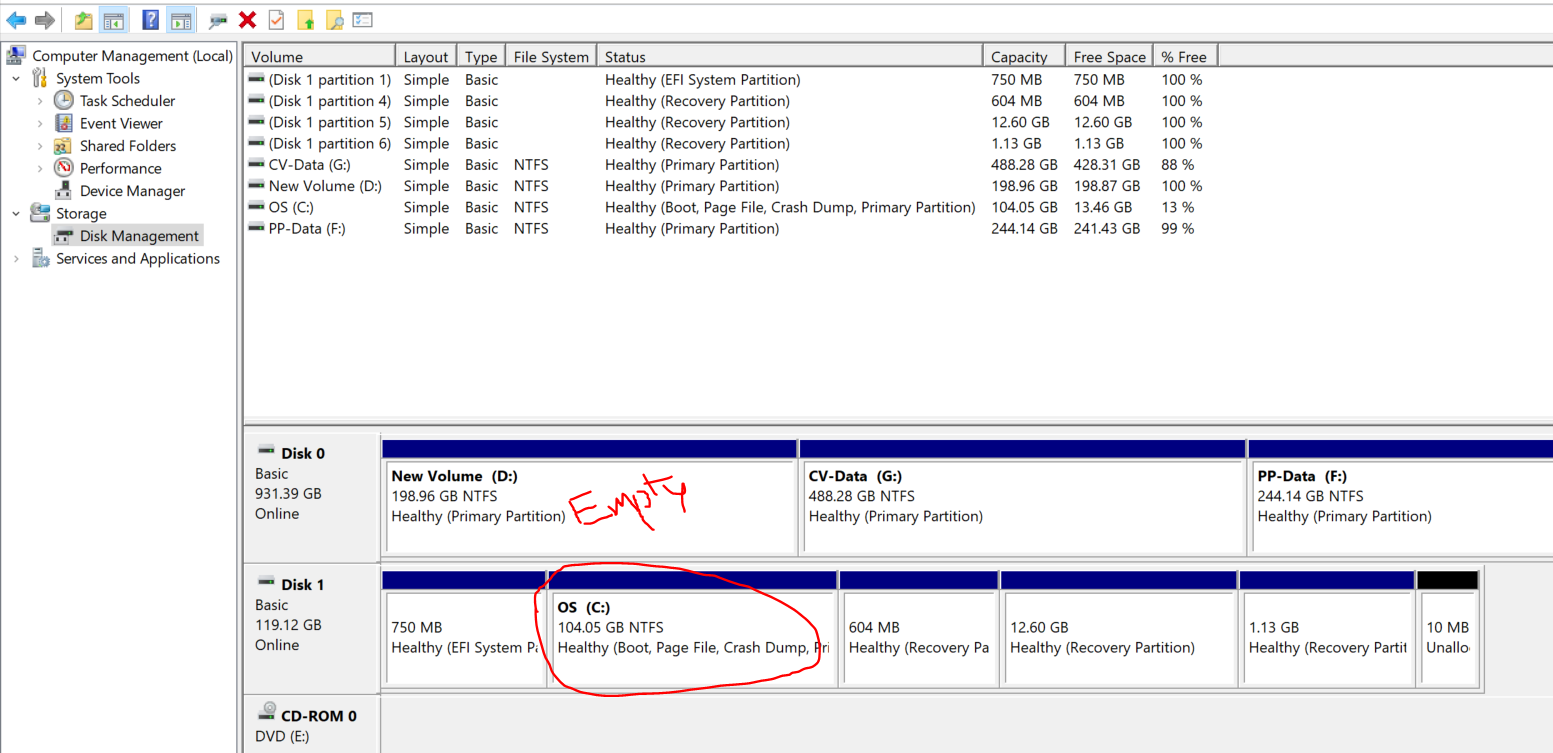

    My C drive is almost full and unable run major applications. I have space on D drive as shown below. When i right click on C drive "Extend Volume " is grayed out. How can merge drive C and D ?




    Extend volume on C Drive is grayed out, how to merge space from drive D? 1e1ddac9-028d-4b88-b118-4163f6147deb?upload=true.png Extend volume on C Drive is grayed out, how to merge space from drive D? 8d3c0b66-dc09-42c0-b3a6-ae534361727e?upload=true.png

    :)

    Venkat Cheedalla, Aug 1, 2020
    #1

  2. how to merge c drive and d drive

    It depends on a couple things.

    If you have two separate physical C and D drives, you can't merge them.

    If the D drive is a partition (not a drive) and its to the right of C:\ in Disk Management, you can right click C:\ then click Extend.

    Press Windows key + X

    Click Disk Management

    Take a screenshot then post in a reply here.

    If the layout is similar to how I described it, try the following. Make sure important data is backed up if there is any.

    Select the D:\ partition

    Right click the ‘D:\’ in Disk Management, on the contextual menu, click the ‘Delete Volume’ option. Click ‘Yes’ when the warning dialog appears.

    The Volume you deleted will now appear as ‘Free space’, you will also notice that the disk icon no longer appears in the list of volumes.

    Right click the Free space partition, and click Delete, click Yes on the Disk Management warning that appears.

    The volume will now appear as Unallocated. Our next step is to merge back that unallocated free space with the system partition (C:\). Right click the System volume and click the ‘Extend Volume’ option on the contextual menu, click ‘Yes’ when the warning appears.

    A wizard will now begin that will guide through the steps to merge back the unallocated space with your system partition.

    The wizard provides a simple procedure to merge back the unallocated space with the system drive. Once you have selected the space, click Next, at the end of the wizard, you will see the amount allocated.

    Andre for Directly, Aug 1, 2020
    #2
  3. OS (CExtend volume on C Drive is grayed out, how to merge space from drive D? :) Drive - Extending the Volume

    I've recently purchased a new laptop and came across a problem regarding the storage volume. It seems there's an arbitrary partition where C: drive has 100GB allocated and the remaining 900GB+ is unallocated. When I tried to extend the volume of C: to include
    the 900GB, the option to extend the volume was grayed out and unusable.

    Unfortunately, I just don't know enough to figure out why all that space is unallocated and why I can't extend the volume of the C: drive. Searching for the answer yielded a lot of suggestions for third-party software, but I'd like to avoid that solution
    if possible. Are there any other options?

    Raseleanne, Aug 1, 2020
    #3
  4. Extend volume on C Drive is grayed out, how to merge space from drive D?

    how to merge c drive and d drive

    Right click and delete these two disk partitions.

    The Volume you deleted will now appear as ‘Free space’, you will also notice that the disk icon no longer appears in the list of volumes.

    Right click the Free space partition, and click Delete, click Yes on the Disk Management warning that appears.

    The volume will now appear as Unallocated. Our next step is to merge back that unallocated free space with the system partition (C:\). Right click the System volume and click the ‘Extend Volume’ option on the contextual menu, click ‘Yes’ when the warning appears.

    A wizard will now begin that will guide through the steps to merge back the unallocated space with your system partition.

    The wizard provides a simple procedure to merge back the unallocated space with the system drive. Once you have selected the space, click Next, at the end of the wizard, you will see the amount allocated.

    Extend volume on C Drive is grayed out, how to merge space from drive D? a431e9b9-d57b-43c9-8a87-3616fd10bae8?upload=true.png

    Andre for Directly, Aug 1, 2020
    #4
