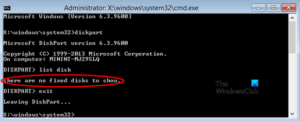

Windows 10: Fix There are no fixed disks to show Diskpart error

If you receive an error message which says — There are no fixed disks to show, when using diskpart in Windows 10/8/7, then this post […]

This article Fix There are no fixed disks to show Diskpart error first appeared on TheWindowsClub.com.

read more...



DISKPART says "Virtual Disk Service error: The disk's extent information is corrupted" ? Which disk is "The disk's"? How to fix this?

I had to reinstall Windows 10, and since I did that I can't re-create a RAID-1 mirror on two identical disks.

It doesn't matter if I used the GUI Disk Manager or the command line
DISKPART, so I'll post the command line version here

PS C:\WINDOWS\system32> diskpart

Microsoft DiskPart version 10.0.16299.15

Copyright (C) Microsoft Corporation.

On computer: ARES

DISKPART> list disk

Disk ### Status Size Free Dyn Gpt

-------- ------------- ------- ------- --- ---

Disk 0 Online 111 GB 0 B

Disk 1 Online 5589 GB 9 GB * *

Disk 2 Online 5589 GB 5588 GB * *

DISKPART> list volume

Volume ### Ltr Label Fs Type Size Status Info

---------- --- ----------- ----- ---------- ------- --------- --------

Volume 0 D 5.45TB NTFS Simple 5579 GB Healthy

Volume 1 System Rese NTFS Partition 350 MB Healthy System

Volume 2 C NTFS Partition 111 GB Healthy Boot

Volume 3 NTFS Partition 450 MB Healthy Hidden

DISKPART> select volume 0

Volume 0 is the selected volume.

DISKPART> add disk =2

Virtual Disk Service error:

The disk's extent information is corrupted.

DiskPart has referenced an object which is not up-to-date.

Refresh the object by using the RESCAN command.

If the problem persists exit DiskPart, then restart DiskPart or restart the

computer.

Attempts to get an answer from Microsoft for this have met with:

- reinstall Windows - didn't fix it from a clean USB-based install;

- in-place update ("I promise this will fix it") - didn't fix it

I've been using Windows for 30 years and I've never had this problem. It's clear nobody at Microsoft seems able to help....!



Disk showing in Disk Management, But not DiskPart

Hello!

So, today I was doing a friend a favor, he had an old 1TB hard drive with important photos on it. He said he would appreciate it if I could move the photos to a different hard drive.

So, I hooked it up to my self-built PC (with a SATA port) and it didn't show up in file explorer.

So, I checked Disk Management to see if it would show up there, and it did. I later realized why it didn't show up in file explorer (Because it didn't have a drive letter). In Disk Management, I right clicked the primary partition only to find that it wouldn't
let me assign a drive letter.

I remembered there was another way to assign drive letters, with DiskPart. So I typed this into Command Prompt:

diskpart > list volume

In DiskPart, It showed the drive's EFI system partition (partition 1) but not the (Healthy) Primary Partition (partition 2).

Also in DiskPart, I could type "list disk" and it would show me the 1TB drive, if I then typed "list partition" it would show me the different partitions, but wouldn't let me assign a drive letter to them.

In summary, Disk Management showed the partition, but wouldn't assign a drive letter. DiskPart showed the partition 1, but not the primary partition.

My objective is to show the photos located on the 1TB drive's 2nd partition without erasing it.

I would be happy to add pictures if necessary.

Thanks!



Disk management console view is not up-to-date

i dont know how to fix your disk management, but i can fix your partition problems...




open up Command Prompt with admin rights. (Right click, run as admin)


enter in
DISKPART
list disk

then find the Disk number for your Raid array... lets call it number 7 ( you can tell what disk is what by the total size)
type in

Select Disk 7
List Partition (will give you a list of all the partitions..)
Select Partition 1 (im assuming you only have 1 partition on Disk 7) repeat this step if you have more partitions.
ASSIGN


that should get the array up and running ready to use.


EDITED.

any problems, post back ^^


Still EDITING *Stick Out Tongue

side question, have you tried restarting the PC?
