  1. Fresh Windows install on SSD with GPT wont Boot


    Hello Community


    This title is found several times in several forums through google. But I didnt found any solution to my problem.


    First my PC Setup and what I want to do:


    Motherboard: Z97-K

    Disks: Samsung SSD 840 PRO Series 125 GB Windows installed

    Samsung SSD 850 EVO Series 500 GB Games and Programs

    Samsung SSD 860 EVO Series 1000GB Games and Programs

    Goal: Migrate Windows from 125 GB to 500 GB and throw the 125 GB out. Then replace with another 1000GB SSD for Games and Programs

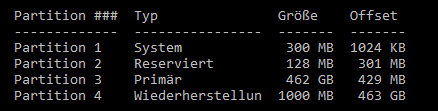

    I wiped the 500 GB clean now even with MiniTool Partition Wizard placing zeros and installed Windows on it with an USB, which was prepared via the Media Creation Tool. I tried it with letting Windows setup my GPT clean Command via Diskpart and then "New" Button when in Windows Setup and with manually creating it 300MB System EFI, 128MB MSR, REST Windows, 1000MB Windows RE tool. Both methods give me the same error result. While installing Windows I had only the 500GB SSD plugged in with SATA. No other disk was plugged in.


    Fresh Windows install on SSD with GPT wont Boot aab670ac-43cd-492a-a5f2-713ff640499b?upload=true.png


    After the installation the PC restarts and I get a black screen with a white underscore blinking. After some time, it switches to UEFI. When I disable Legacy Support in UEFI then I get an Error Message from UEFI that Legacy Support is disabled instead of the black screen with the white cursor. Usually this means that the Disk is in MBR Format but as you read, I prepared it the right way. So somehow my UEFI does not recognize the Windows Manager on the EFI Partition.


    I also disabled Secure Boot. Checked that AHCI is enabled. Updated the UEFI on the MoBo. Did a CMOS reset. The Disk while installing is on the first SATA Port and like said the only one used. I tried the same asdescribed with the 1000 GB SSD and had exactly the same result. However, when I started first, I was stupid and formatted the 125 GB as well before the I installed Windows on the 500GB. For a moment I had no Backup Disk with a running OS. But I managed to reinstall Windows on the 125 GB just fine. I dont understand why I cant get those 500GB and 1000GB SSDs to run Windows.


    I wasted the whole Weekend for that and I am at the point where I forget about the extra 1000GB SSD I wanted to buy and just buy another 500GB install the OS there and thats it. But I m unsure if a new SSD will solve my problem.


    I m really helpful for some solution suggestions. I m conviced there is no error on my side but maybe I overlooked something.


    Error Message with SSD 500GB:

    Fresh Windows install on SSD with GPT wont Boot [​IMG]


    UEFI Boot Menu with 500 GB SSD "Windows Boot Manager" missing:


    Fresh Windows install on SSD with GPT wont Boot [​IMG]


    UEFI Boot Menu with 125GB:


    Fresh Windows install on SSD with GPT wont Boot [​IMG]

    :)

    philipp_ch, Jan 24, 2021
    #1

  2. Windows 7 wont install drivers

    +1

    If you having an issue installing a driver that worked before you formatted or wont install on a fresh build, sometimes this means hardware damage

    brandonwh64, Jan 24, 2021
    #2
  3. Windows wont boot after fresh install



    Fresh Windows install on SSD with GPT wont Boot [​IMG]

    The HDD is 512 and the SSD is 4096

    NeverLucky, Jan 24, 2021
    #3
  4. Fresh Windows install on SSD with GPT wont Boot

    GPT vs MBR for SSD OS Disk ? (win7 install)

    I do not understand.

    GPT is designed almost exclusively to allow huge arrays. The genesis of windows useable GPT drives goes back to Windows XP x64.

    UEFI does not require GPT to boot. UEFI is the BIOS, functionally. It runs before any disk is touched.

    As far as booting, stick with MBR on your SSD. There is no 2TB+ SSD on the market, and you're unlikely to have a RAID 0 array that large. Windows 7 defaults to MBR, for so many good reasons it isn't funny.


    I haven't the slightest idea about where you linked UEFI and GPT. If you've got a large array as your boot drive you might have to cross this bridge, but given the difficulty I'd stay as far away from it as possible. MBR isn't old, it's still the primary windows drive formatting for a darn good reason.

    lilhasselhoffer, Jan 24, 2021
    #4
