Windows 10: GPT disk windows 10 tries to load windows from wrong 500mb partion it seems / unfixable via...

Discus and support GPT disk windows 10 tries to load windows from wrong 500mb partion it seems / unfixable via... in Windows 10 Installation and Upgrade to solve the problem; Hello there, i need some guidance on how to fix an issue with diskpart i hope. My UEFI controlled GPT Windows crashed due to tweaking my ram.... Discussion in 'Windows 10 Installation and Upgrade' started by ThorstenSixt, Oct 18, 2020 at 6:17 AM.

  1. GPT disk windows 10 tries to load windows from wrong 500mb partion it seems / unfixable via...


    Hello there,


    i need some guidance on how to fix an issue with diskpart i hope.


    My UEFI controlled GPT Windows crashed due to tweaking my ram. Windows updates may have occured before that. I don't know.


    The real OS Partition on my ssd is not c: drive anymore. Instead it tries to start win from a 500mb c: partition.


    With a windows usb stick i could not fix the issue.

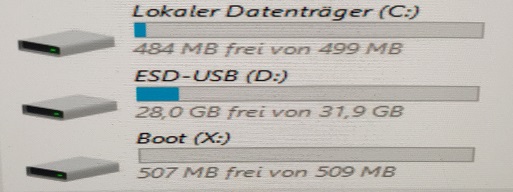

    But i could take this screenshot after trying to find a driver:

    GPT disk windows 10 tries to load windows from wrong 500mb partion it seems / unfixable via... 66c15399-a3a7-4baf-8b24-c02a020a5e7d?upload=true.jpg


    with diskpart my only m.2 ssd looks like this:

    GPT disk windows 10 tries to load windows from wrong 500mb partion it seems / unfixable via... 71b3dda9-2f05-4fb9-b85c-7e34d0c8c7b7?upload=true.jpg

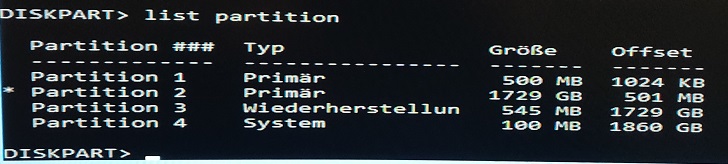

    choosing disk/datentraeger 0 reveals:

    GPT disk windows 10 tries to load windows from wrong 500mb partion it seems / unfixable via... 018f1770-60d1-4093-9064-8aad105fe192?upload=true.jpg


    My issue is that in my Asus/Apex xi/ Bios the ssd will show up only as one entry:

    Windos Boot Manager - samsung evo // and that entry is mapped to the wrong partition i believe


    Somehow C: drive is mapped to partition 1 or 3, instead of my OS on partition 2



    Is this fixable via diskpart ?



    My Bios settings:


    CSM: disabled

    OS Type: windows uefi os

    Fast boot: disabled usually enabled

    Sata Controllers: enabled

    Sata Modus: Intel RST Premium with intel optane / i don' have optane btw

    M.2_2 PCIE Storage RAID Support: RTS controled

    Native Ami nvme driver enabled


    Thanks in advance


    Best Regards

    Carlyle


    ps twice before i had an issue that the OS would not start after an bios update. I had to enable and disable some sata controller settings and play around with CSM on/off and the type of OS other/windows uefi before it startet at some point with the final config always beeing the one listed above.

    :)

    ThorstenSixt, Oct 18, 2020 at 6:17 AM
    #1

  2. OS on MBR, other disks GPT

    Hi,

    Problem

    I don't see the Data Disks in the Windows Explorer

    History: What I had before the problem occurred (worked fine)

    • Disk 0: 450GB / NTFS / 4 Partitions / used as Windows Home Server OS Disk
    • Disk 1: 4TB / GPT / Used as Data Disk
    • Disk 2: 4TB / GPT / Used as Data Disk
    • Disk 3: 4TB / GPT / Used as Data Disk

    What I actually have

    • Disk 0: 450GB / NTFS / 2 Partitions / used as Windows 10 Pro OS Disk
    • Disk 1: 4TB / GPT / Used as Data Disk
    • Disk 2: 4TB / GPT / Used as Data Disk
    • Disk 3: 4TB / GPT / Used as Data Disk
    What I see in the Windows Disk Management

    • Disk 0: Basic, Online

      System Reserved, 500MB NTFS, Healthy (System, Active, Primary Partition)

      (CGPT disk windows 10 tries to load windows from wrong 500mb partion it seems / unfixable via... :), 465 GB NTFS, Healthy (Boot, Page File, Crash Dump, Primary Partition)
    • Disk 1: Basic, Online

      2048 GB, Healthy (GPT Protective Partition)

      1678 GB, Unallocated
    • Disk 2: Basic, Online

      2048 GB, Healthy (GPT Protective Partition)

      1678 GB, Unallocated
    • Disk 3: Basic, Online

      2048 GB, Healthy (GPT Protective Partition)

      1678 GB, Unallocated
    • Disk 4: Basic, Online

      2048 GB, Healthy (GPT Protective Partition)

      1678 GB, Unallocated
    What I see in the Windows Explorer

    • Local Disk (CGPT disk windows 10 tries to load windows from wrong 500mb partion it seems / unfixable via... :)
    What am I doing wrong?

    Moved from: Windows / Windows 10 / Devices & drivers

    MarcWampfler, Oct 18, 2020 at 6:23 AM
    #2
  3. Kari Win User
    Options to create a bootable Windows 10 iso with GPT partion

    The error message you get has nothing to do with your USB drive.

    DISKPART LIST DISK shows an asterisk in last, GPT column if the disk is GPT, no asterisk for MBR disk:


    GPT disk windows 10 tries to load windows from wrong 500mb partion it seems / unfixable via... [​IMG]


    In your case, the HDD is GPT, and the USB drive MBR. The most probable cause for your error message is that the computer is a legacy BIOS device, not UEFI. If so, you should convert the HDD (Disk 0) to MBR for installation to work. On BIOS devices, Windows cannot be installed on GPT partitioned disk.

  4. Ahhzz Win User

    GPT disk windows 10 tries to load windows from wrong 500mb partion it seems / unfixable via...

    Windows 10 Tweaks

    Pressing “Windows+Pause Break” (it’s up there next to scroll lock) opens the “System” Window.

    Windows 10: In the new version of Windows, Explorer has a section called Quick Access. This includes your frequent folders and recent files. Explorer defaults to opening this page when you open a new window. If you’d rather open the usual This PC, with links to your drives and library folders, follow these steps:

    • Open a new Explorer window.
    • Click View in the ribbon.
    • Click Options.
    • Under General, next to “Open File Explorer to:” choose “This PC.”
    • Click OK


    credit to Lifehacker.
