Windows 10: Hardware virtualization wont be available in I5 7200U intel processor only , if either...

I have checked 5 times with different modes , I have already esculated the same issue to intel community , but they not working towards this issue.


I have asus vivobook 15 R542UQ-FDM153

Bios X542UQ.305

Activated windows 10 enterprise 64bit v1803 build number 17134.167 (installed on Samsung m.2 )

Intel i5 7200u 2.5Ghz

ADATA 8GB ddr4 2400Mhz

Intel HD graphics 620 with updated 24.20.100.6194 WHQL driver

Nividia GeForce 940MX 2GB Gddr5 Vram with 398.36 WHQL driver

Samsung 860 evo 250GB M.2 2280 with updated firmware

Toshiba 1TB hdd 5400RPM with latest firmware

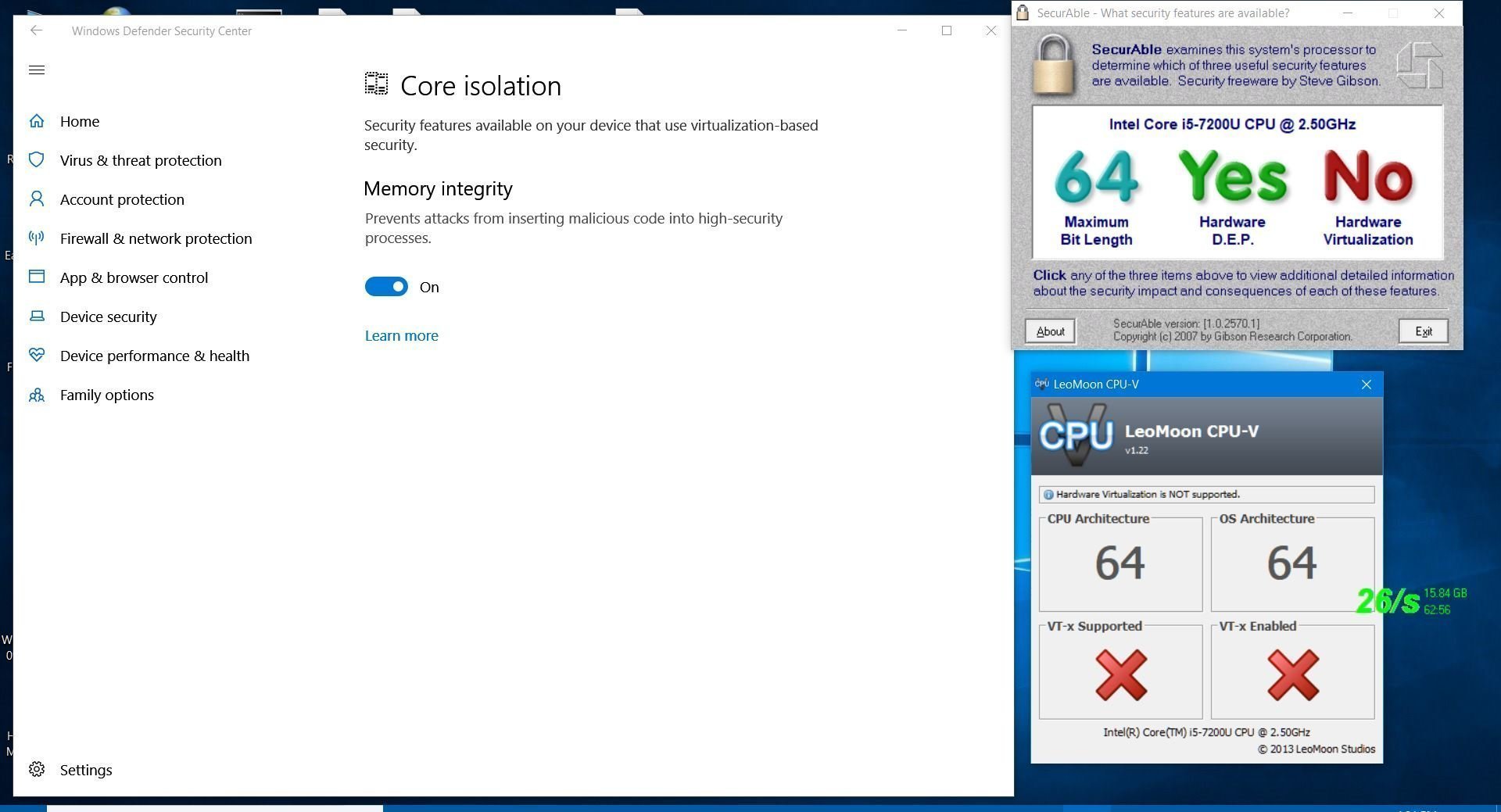

This issue is not present when memory integrity is disabled or VIRTUALIZATION BASED SECURITY is disabled in registry




Anyone having same issue happened with core isolation memory integrity turned on , this issues happened in windows 10 professional and enterprise and education also






I don't need advice like reset windows 10 , clean installation , sfc scan , dism scanhealth , system restore


I tried all above methods , I am sure processor is good.

anyone having enterprise edition with intel VT supported processor , check in ther system and then reply

:)



processors

Same Processor. Here is the complete specification from the intel website.

Intel® Core™ i5-7200U Processor (3M Cache, up to 3.10 GHz) Product Specifications

Regards.



Intel Gives Core i3 and Core i5 Dual-Core Processors K0 Stepping Update

Intel is giving some existing 32 nm "Clarkdale" based Core i3 and Core i5 processors an update. The processors will transition to the new K0 stepping from the existing C2 stepping. The parts that will be made on the K0 silicon are Core i3 models 530 (new sSPEC: SLBX7), 540 (new sSPEC: SLBTD) and Core i5 models 650 (new sSPEC: SLBTJ), 660/661 (SLBTK/SLBTB), 670 (SLBTL). Newer and upcoming models such as the i3-550, i3-560, i5-665K, and i5-680 are already being built on the K0 stepping die. Motherboards will require a BIOS update to support the new K0 stepping processors.

The K0 stepping change includes the following highlights:

• New S-spec and MM numbers for the converting products
• Extended CPUID will change from 0x00020652 to 0x00020655
• Host RevID will change from 0x12 to 0x18
• K0 stepping package is pin compatible with C2 stepping package
• Adds Processor Context ID (PCID) support

The revised older SKUs that are built on K0 stepping will be market-available by October 16.



virtualization support

Hi RMTS97, yes that processor does support Virtualization

Intel:registered: Virtualization Technology (VT-x) - Yes

Intel:registered: Virtualization Technology for Directed I/O (VT-d) - No

Full whitesheet for that processor:

https://ark.intel.com/products/81016/Intel-Core...
