Windows 10: How to change MTU Settings in Windows 10

Hello everyone!

This is not a started thread to ask a question, but how you can fix your MTU settings on windows 10, without PowerShell, or Command prompt.

Recently i found this article where people mentioned using powershell.

How do i change MTU Settings



Though when following the steps, and the similar steps you see in web articles, i receive the following response.

"Element Not Found"

So i have did a little bit of digging around, and found how you can change the MTU Settings by using your mouse instead of headache responses via command prompt or powershell.

1. Tap Start Button.

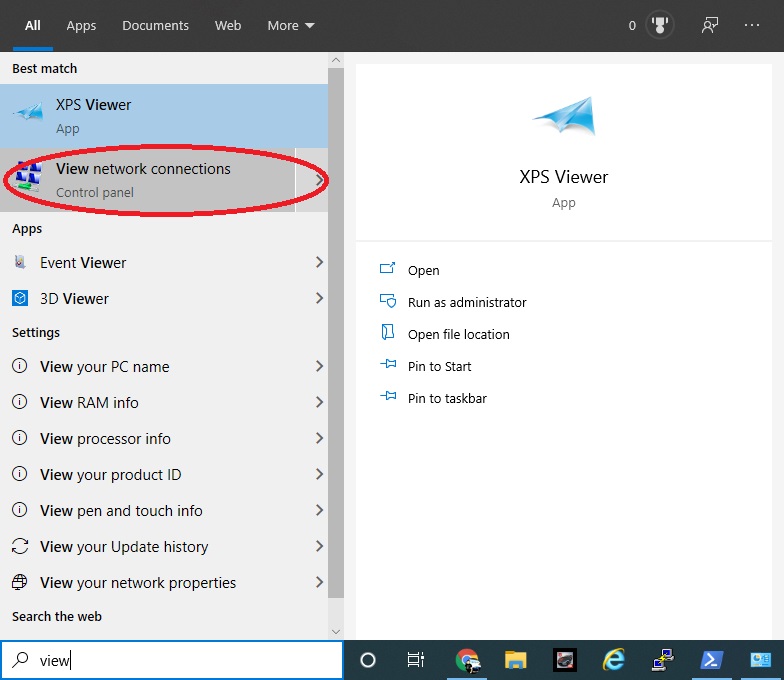

2. Type the following with out "" "View Network Connections" Then click to open.

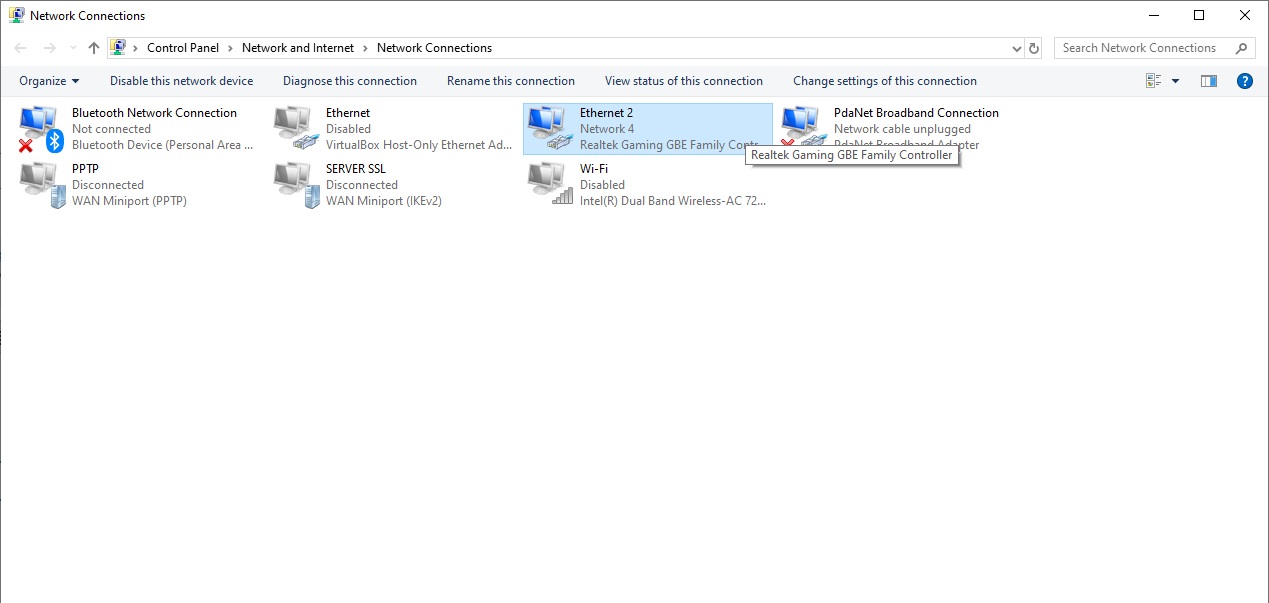

3. Next a window will open showing all of your network adapters, Both wireless and lan if you have more than 1 network adapter.



In this case my Ethernet adapter i will be using is labeled "Ethernet 2", Your network adapter name may be different.

4. Right click on selected Adapter -> Then click Properties.

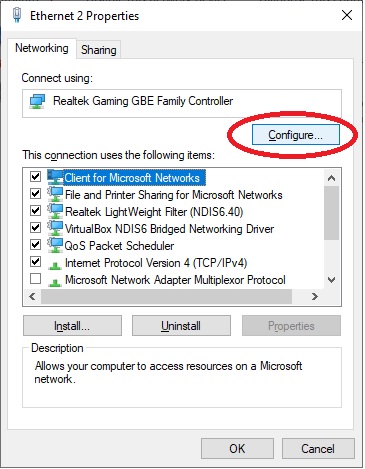

5. Small window will open showing the following.




You will need to click the configure button that is circled in red.

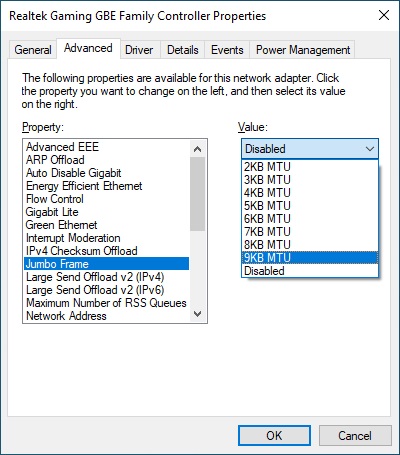

6. After clicking the Configure button circled in red, another small window will open up. This is your drivers properties and you want to make sure you are on the selected Tab and highlighted Item in the left hand box.




Setting MTU Settings is not considered software controlled unless the company who makes the specific drivers creates a control panel for the hardware in order to be able to change the MTU Settings, However this is the windows way of changing the MTU Settings in windows 10.
The name for it is called "Jumbo Frame"

While the options in the Jumbo Frame do not allow you to change to the most accurate MTU Setting, this is not a serious issue. By selecting the closest MTU Setting to your needs, it is important to select the closest MTU that is the higher amount. For instance,

If your network MTU setting is 7250 on your network, Your windows 10 MTU should be set to 8KB in order to avoid dropped packets over the network from your windows 10 machine.

I hope that making this article helps to anyone and everyone! Please show some support in the making and mark this post as resolved or if it has helped you.

Hayze Productions.
Web Developer, Network Administrator, Cloud Computing, Data Center, App Developer for
Urban405

:)



How do I change MTU settings

Hi,

Thank you for posting your query in Microsoft Community.

We suggest you to contact Internet Support Provider.

Please refer the below link its about Window Vista, we suggest you to use following steps to open command prompt.

Windows key +X.

Click on Command Prompt.

Follow the suggestion in the link Provided and check.

Change the MTU setting:

How do I change the MTU setting in Windows 7?

Keep us posted if you have any issue with Windows, we are happy to assist you.



Windows 10 MTU setting

Can anyone tell me how I can set the MTU in Windows 10 and get it to stick. I need to change the MTU for my Verizon Private Network and after I change it it will change back if the computer loses signal or reboots or sleeps. I never had an issue getting
it to stay as what I set i in Windows 7.



Windows 10 MTU setting

Hi pineson,

Since your issue has a relation to your VPN and your MTU settings, I suggest you post your concern in our
TechNet forums. The members
there include IT professionals that can provide a more advanced recommendation on the next step to resolve your issue.

Regards.
