Windows 10: How to troubleshoot VPN Error 809 on Windows 10

A Virtual Private Network (VPN) is a one-stop solution for Internet safety and privacy needs. When they work, they are great, but when they don’t, they can leave you baffled. It’s quite a common thing for VPN connections to occasionally [...]

This post How to troubleshoot VPN Error 809 on Windows 10 is from TheWindowsClub.com.

read more...



IPSec VPN eror 809 after Windows 10 upgrade

I found that a windows 10 service blocks L2TP/IPSEC VPN access.

If you go to services.msc

Find "Xbox Live Networking Services" and disable that service.

After I did that the VPN worked for me.

I have tried everything from adjusting firewall rules to adding the registry entry to no avail with Error 809.

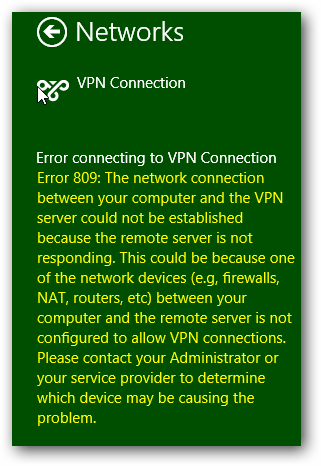

My win 10 laptop can not be connected with VPN with the error"809"

I can not use the VPN by P2TP. And I have tried all the methods on the internet including changing or adding registry. It can not work. I need help! thanks!



IPSec VPN eror 809 after Windows 10 upgrade

Adam, same issue here, and I was stumped until I saw your advice. It worked but I do wonder why. On the affected client, that service was set to manual start and was not running when I had the 809 error or at any time in the last six months. I disabled it
-- and just as you described, the VPN worked.

VPN error 809 apparently refers to the default behaviour of L2TP/IPSEC VPNs not working behind NAT devices (Network Address Translation), which is the mode that most home routers work in. As I'm sure you are aware, you can introduce and change a registry
setting on both VPN clients and the VPN server to avoid the error.

But how can a non-running service cause the client to fail as if the registry setting is missing? I could understand that removing the service might undo some other registry setting. But disabling the service?

There is a warning in one Microsoft TechNet article that even with the registry setting changed, you can get unpredictable results. And Microsoft don't officially support this kind of VPN behind NATs.

It's a pity the PTTP is a broken protocol in a security sense. It was a lot easier to install and use!
