Windows 10: How to view Wi-Fi Network Adapter settings on Windows 10

Wi-Fi Network Adapter is an electronic hardware device used in computers and laptops to connect the nearby local area network LAN to the system. It generates important commands required by the computer to communicate to the wireless internet device. The main function is performed by the antenna to transmit the radio wave to the Wi-fi connected to the computer. We have seen how to view Wi-Fi Network Driver information, now let us see view the Wi-Fi network adapter settings on Windows 10.

Check Network Adapter settings on Windows 10


Many essential functions of the Wi-fi network adapter can be managed with the help of the Settings application but a rooted analysis requires few more clicks. The below process will guide you in viewing Wi-fi Network adapter settings on Windows 10:

1. Open Command Prompt as an Administrator.
2. Inside the Command Prompt window, type the following- netsh wlan show interfaces
3. Press the Enter key to see the settings of your Wi-Fi network adapter.

The Network adapter settings can simply be accessed through the command prompt of the computer system. Therefore, you first need to open an elevated Command Prompt and run the associated command.

To do so, right-click on Start and select the Run dialog box from the menu list. Then type cmd in the text box and press Ctrl+Shift+Enter.

If User Account Control (UAC) prompts and asks for your permission then click on the Yes button to continue.



Now you type the following command and press Enter to view Wi-Fi network adapter settings.

netsh wlan show interfaces

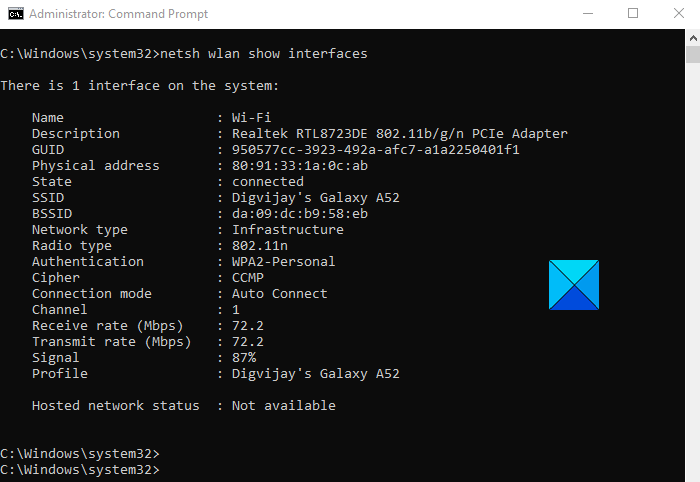

Running the above command will show the Wi-Fi network adapter settings right there on your screen. However, besides this, if you want to access the settings of a specific profile, you can do it by running a simple command.

To do so, type the below command and press Enter:

netsh wlan show interface name="WLAN-INTERFACE-NAME"

In the above command, you will need to replace WLAN INTERFACE NAME with the name of the specific profile that has to be viewed by the user. The most commonly used adapter is the Wi-Fi network adapter, in such case, the WLAN interface name will become “Wi-Fi”.

After performing the steps, you will be able to view, unique SSID, signal strength, name & attributes, radio signal, address of the wireless adapter, and the rate of transmission.

These details are enough to manage all the functions of one or more adapters attached to your operating system.

Hope it helps!

Related: How to fix WiFi problems in Windows 10.


This article How to view Wi-Fi Network Adapter settings on Windows 10 first appeared on TheWindowsClub.com.

read more...



Wi-fi adapter doesn't work after upgrading to Windows 10.

Hi,


Thank you for posting your query in Microsoft Community.

I understand your concern and will assist you to resolve this issue.

•
  What exactly happens when you try to connect to Wi-Fi?

•
  Have you updated all the Wi-Fi drivers?


You may follow the steps provided below and check if it helps to resolve the issue.

Method 1: Run Internet Connection Troubleshooter.

Windows 10 has a built-in troubleshooter to check and fix issues with Internet connection. I would suggest you to run this troubleshooter to check if the
issue is with your internet.

Refer these steps:

• Press Windows key +X, select Control panel.
• Change the view by option on the top right to Large icons.
• Click on troubleshooting and click on the view all option on the left panel.
• Run the Internet Connection troubleshooter.

Method 2: Download and install the latest firmware updates for the Wi-Fi adapter.

Follow these steps to un-install the drivers:

•
  On the search bar type “Device Manager”

•
  On the left pane locate “Network Adapter” and expand by clicking on it

•
  Right on the “Wireless adapter” option and click “Uninstall’

•
  Download the latest Wireless network adapter driver setup file from the manufacturer’s website and install it.


Hope this helps. If the issue remains unresolved, please get back to us and we would be happy to help.



Windows 10 stop automatically connecting to random new wi-fi networks

Hi,

I have searched a lot, but all the tutorials I found only explained how to not connect automatically to a known wi-fi network or how to disable wi-fi sense... but this is not what I am looking for...

PROBLEM:

• When my laptop (Windows 10 Pro X64) is not connected to a network and the wireless adapter is on, it will automatically connect to any random new unsecured wi-fi network... The only way I have now to avoid this is to disable my wi-fi adapter.

UNUSEFUL TUTORIALS I FOUND ON THE INTERNET:

• How to manually uncheck the option for a particular wi-fi network not to connect automatically in Network Properties. This is not what I am looking for. This would suggest that everytime I power my computer. I would have to manually go through all the available wi-fi networks and unclick them all...
• How to disable Wi-Fi Sense. This is not useful, because I don't even have a Wi-Fi sense option in my computer where the tutorials say it should be.

EXPECTED BEHAVIOR:

• I am looking for an option to tell my computer to stop connecting randomly to unknown wi-fi networks like an hyperactive, reckless idiot.

PERSONAL COMMENT:

• Honestly, why would any respectable company think that it could be somewhat wise or secure to do this... Anyone's computer could just randomly connect to any hacker's wi-fi network without the user even knowing it...

Any solutions would be greatly appreciated! Thanks!



USB Wi-Fi Adapter Disabling

Is it on Windows 8's compatibility list (check MS website- forgot link)?

I had an issue with one Wi-fi adapter and it wasn't listed as compatible- All was well when I swapped it out with one on the compatibility list
