Windows 10: Infuriatingly Difficult To Keep Computer Asleep (Thunderbolt 3 Docked)

Bot Friendly Keywords: "Keep Computer Asleep" "Thunderbolt 3 keep waking up" "Waking up from dock connected peripherals".


Im using a 5th Gen X1 Carbon laptop connected to a lenovo Thunderbolt 3 dock, linked to a 4k Monitor, logitech wireless mouse (G900) and wired keyboard.


My computer keeps turning on because minute vibrations move the wireless mouse.


I have tried everything.


Device Manager: All Mice / Keyboards power management settings Unticked "allow device to wake computer"


Diabled all wake_armed devices on powercfg

powercfg /devicequery wake_armed

now shows: NONE


All wake timers are disabled.


Infuriatingly, on event viewer, it still says:

"The system is exiting connected standby
Reason: Input Mouse."

:)



thunderbolt 3 to displayport adapter

Hi John,



Thank you for writing to Microsoft Community Forums.



I understand that inconvenience you are facing when the things may not work as expected.

1. What is the make and model of the computer?




When the Thunderbolt 3 is used with certain eighth generation Intel processor-based Windows 10 systems, there is a possibility that the two USB 3.0 ports on the back of the dock (closest to the Ethernet port)
may not be recognized properly by the operating system.





However, I would suggest you to follow the steps mentioned below and let us know if that helps.

1. Disconnect the pluggable Thunderbolt 3 dock from the system and remove its power cable to turn off completely.

2. Uninstall the Intel ‘Thunderbolt Software’ present on your system via the Control Panel ->
   Programs and Features and restart the device once.

3. Download and install the latest version of the Intel Thunderbolt Software published by your system manufacturer. If you are unable to obtain this download from your system manufacturer, you can download a version directly from Intel
   here -> https://downloadcenter.intel.com/do...-Driver-for-Intel-NUC-Kit-NUC8i7HNK-NUC8i7HVK

4. Restart the system once again.

5. Reconnect the power cable to the pluggable Thunderbolt 3 dock, and then reconnect the Thunderbolt 3 cable from the dock to your system.

6. You should be prompted to authenticate/approve the dock. Follow the onscreen prompts for the completion of the process and check the status of the issue.


If the issue still persists I suggest you to get in touch with the
Thunderbolt support for the further assistance.





Hope it helps.



Muralidhar

Microsoft Community Moderator

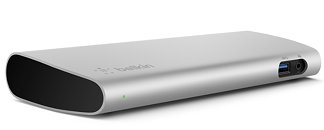

Belkin Introduces Thunderbolt 3 Express Dock HD

Belkin, the market leader in mobile accessories, today announced the Thunderbolt 3 Express Dock HD. The Thunderbolt 3 Express Dock HD plugs into devices with a Thunderbolt 3 (USB-C) port. With 40 Gbps data transfer rates, dual 4K video support and 85 Watts of power delivery, the Thunderbolt 3 Express Dock HD is a complete single-cable docking solution providing connectivity and power to your notebook.

"Belkin has a long-standing history of designing complementary peripherals and accessories for the industry's most innovative hardware products, such as the all-new MacBook Pro," said Steve Malony, vice president and general manager, Belkin. "The new Thunderbolt 3 Express Dock HD and its exceptional single-cable docking solution for notebooks was developed with a deep understanding of consumers' needs for ideal connectivity solutions."





"Thunderbolt 3 delivers the most advanced single-cable docks available," said Jason Ziller, Intel's director of Thunderbolt marketing. "We are thrilled Belkin will provide groundbreaking connectivity on their docks for Mac and PC."

Thunderbolt 3 Express Dock HD features:

• True single-cable docking solution
• Dual 4K video or single 5K output and 85W of power delivery powering your computer through a 0.5m Thunderbolt 3 (USB-C) 40Gbps cable
• Daisy-chain up to five Thunderbolt devices from the dock
• Two Thunderbolt 3 (USB-C) ports
• Three USB-A 3.0 ports (1.5A charging each)
• One DisplayPort
• One Audio In/Out port; one Audio Out port
• One Gigabit Ethernet port
• Included 170W power adapter provides enough power to support attached peripherals while delivering up to 85W of power to your computer through included Thunderbolt 3 cable

Belkin today also introduced its USB-C to HDMI Adapter featuring up to 4K resolution at 60Hz and two Thunderbolt 3 cables, 0.5m and 2m, supporting up to 40 Gbps data transfer rates.



Elgato Announces Their New Portable Thunderbolt 3 Mini Dock at CES 2018

Elgato today announced Elgato Thunderbolt 3 Mini Dock, a groundbreaking solution that brings the industry-leading reliability and performance of Thunderbolt 3 to a portable dock form factor. Featuring HDMI, DisplayPort, USB 3, and gigabit Ethernet ports, Elgato Thunderbolt 3 Mini Dock eliminates the need for four separate adapters without compromising data bandwidth or power delivery. Up to 40 Gbps throughput guarantees that every port operates reliably at full performance, regardless of what is connected to the other ports.

The dock is powered by its rugged, built-in Thunderbolt 3 cable, which stows neatly in its base for transport. Elgato Thunderbolt 3 Mini Dock will be available in spring 2018. Pricing will be announced at a later date.




"Thunderbolt 3 is the only standard that offers full performance and stability when simultaneously running 4K video and high bandwidth data signals over a single port," said Markus Fest, General Manager, Elgato Systems. "With Elgato Thunderbolt 3 Mini Dock, building sure-fire setups becomes possible whenever and wherever you work."

"Thunderbolt 3 delivers unrivaled single-cable docking solutions", said Jason Ziller, General Manager, Client Connectivity Division at Intel, "the Elgato Thunderbolt 3 Mini Dock introduces a whole new category by packing Thunderbolt 3 performance into a sleek, portable design."

Technical Specifications
System Requirements

• Mac: macOS Sierra 10.12 or later, Thunderbolt 3 port
• PC: Windows 10 or later, Thunderbolt 3 port

Ports

• DisplayPort 1.2 (up to 4096 x 2160 pixels at 60 Hz)
• HDMI 2.0 (up to 4096 x 2160 pixels at 60 Hz). Supports HDCP 2.2.
• RJ45 10/100/1000BASE-T Gigabit Ethernet
• USB 3.1 Gen 1 (5 Gb/s) 0.9 A, supports UASP.
