Windows 10: Intel Graphics and Windows Display Settings - Different Main Displays?

so my office dual monitor pc setup has been up and running for years, with the "main display" (#1) always showing on the correct monitor, regardless if the other display (extended #2) is on, off, or set to different resolutions, it's always been rock solid, i.e. main display (#1) content always displays on the main display (#1), while extended display content (extended #2) always shows on the second display.

unfortunately things aren't running quite as smoothly on my new dual monitor setup, the extended display (#2) will often take over the main display (#1), depending on if if the second display is on, off, or set to a new resolution.

i noticed that with my new setup the intel graphics settings are different than the windows display settings - if i make display #1 the "main display" in the windows display settings it shows as display #2 in the intel graphics settings, and when i make display #1 the "main display" in the intel graphics settings it shows as display #2 in the windows display settings, weird.

i also noticed that the intel graphics on my new setup has more options under display than my old setup, including multiple display options (no doubt the drivers are newer on my new setup given the newer integrated graphics chip).

so i'm wondering, do the intel graphics settings override the windows display settings? the more i play around with the settings it appears that the prob may not exist if i ignore the windows display settings and just use the intel graphics settings?

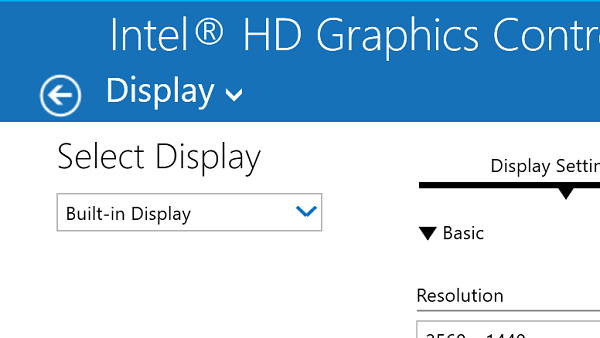

new intel graphics settings:

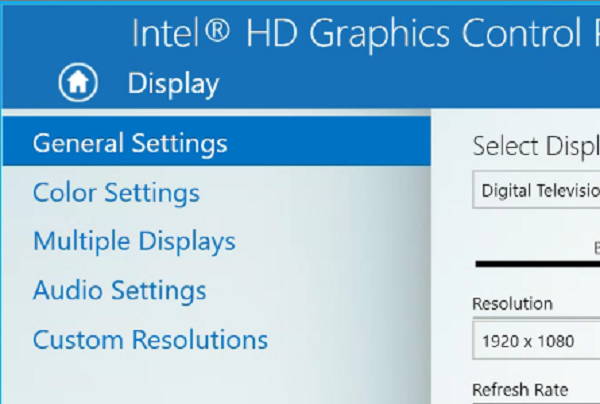

old intel graphics settings:





:)



Intel HD Graphics Display Driver Windows 10

Hi Harpinder;

First, I want to thank you for replying and offering a possible solution to this problem. It is appreciated.

Second, don't assume that I didn't follow instructions or that I don't use web search (google/bing). I do. I use it heavily.

Third, the solution and instructions given did NOT work for me. No matter what I did - including extracting the Intel drivers and pointing the update drivers action to the extracted folder - I could not get the update to install. It always gave me the
"you have the latest drivers" response. However, you did prompt me to think about another process I might try...

Forth, what did work for me is this...

• Download the Intel HD5000 drivers from this location. It is OK just to download the exe. But do NOT run the installer... just save it: Download Intel® Graphics Driver for Windows® 10 [15.40][4th Gen]

• Open Device Manager
• Open properties for Display Adapters > Intel HD Graphics 5000
• Click Driver tab and then Uninstall button.
• In the uninstall confirmation box, click the checkbox to "Delete the driver software for this device"
• Click OK to proceed with the delete. The system will need to restart, and when it does it will come up with the Microsoft Basic Display driver listed in the Device Manager > Display Adapters.
• Do NOT run scan for new hardware.
• Run the Intel HD5000 driver installer that was downloaded in step #1.

Those are the steps that worked for me. It would be great to hear feedback on the steps that worked for others.



Display settings

Hi Julia,



To reset the settings back to default, follow these steps:

• Go to your desktop, right click and select Display Settings.
• Choose the appropriate settings from the options under Display.

Let us know if the above steps resolved the issue.



Dual display glitches for different DPI settings

Hello,

Thank you for posting your query in Microsoft Community.

I understand the inconvenience caused to you. I will be glad to assist you with the Issue.

I would suggest you to update your graphic card drivers and check if it helps.

You can update drivers from the Device Manager.

• • Right click on start button and click on Device manager.

  • Select Display Drivers.
  • Right click on the Display drivers and select Properties
  • Click on the device tab and select Update driver.

Also try to install the latest graphic drivers from the manufacturer website and check if the issue persists.

Try the above step and let us know if it helps. For further assistance feel free to post your queries in Microsoft forums. We will be glad to assist you.

Thank You.
