Windows 10: Is it possible to clone OEM Partition?

Hi, I have a Acer Swift SF314-54G. I have Windows 10 Home Single Language pre-installed by Acer. Recently, I bought new SSD (Adata SX8200 Pro) because the HDD had seemed too slow to run Windows Applications. I cloned the old disk with AOMEI Backupper to my new SSD. After the cloning process has completed, I opened Windows Disk Management and found that the Recovery Partition (OEM Partition) had been changed to Primary Partition in the cloned SSD. Is it possible to clone the OEM Partition. I was not able to boot to the new Recovery partition too.

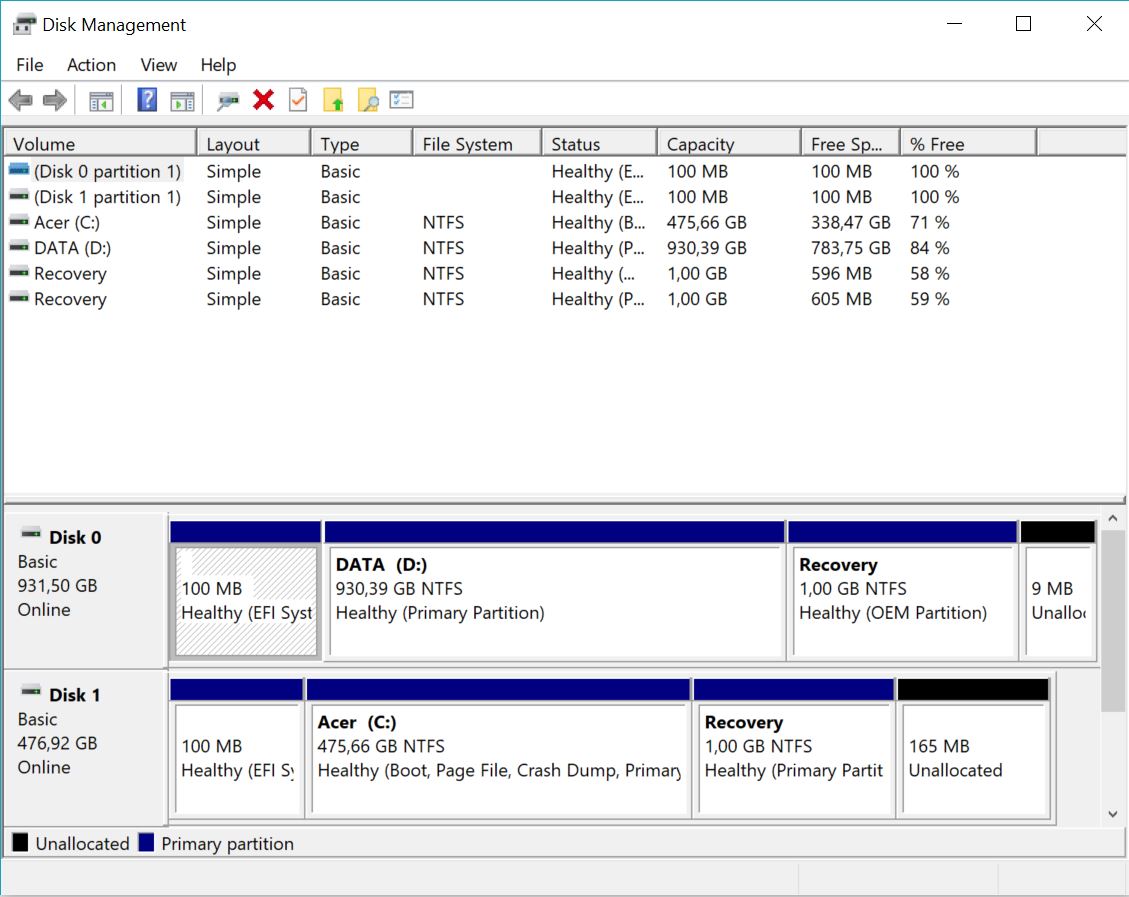

A screenshot of the Windows Disk Management is attached. (Disk 0 is the old HDD, Disk 1 is the new SSD)

:)



partition cloning help!

Well I just bought a SATA seagate 320gb 7200.10 hard drive. I had to get a power adapter, but anyway. It's in as Drive F (did disk management). Now all I want to do is clone the partition from my old hard drive to my new hard drive. Copy windows and everything else over on my new hard drive, take out my old drive and then use the new drive as the primary C drive. I have norton ghost, and partition magic. I heard ghost is much better. Could someone tell me step by step how to accomplish this? I think I know how, but I do NOT wanna take any chances here..



clone MBR HD to bootable GPT partition?

My HP Vista laptop took a swim and died. I pulled the 320MB HD, put it in an external enclosure and found it still good. Bought a new Dell Win 10 machine w/ 1TB HD. Plan was to:

•
  Partition off a piece of the new 1TB w/ native Win10 Disk Management.

•
  Clone the 320MB Vista drive into the new partition w/ Easeus Partition Manager.

•
  Run Paragon-adaptive-restore on the Vista partition.

•
  Set up as dual-boot Win10 / Vista.


Ran into problems right away. Apparently can't clone the MBR HD to a GPT partition and have it remain bootable. Don't see a way to do this without wiping the new Dell 1TB clean – which I'm hesitant to do, especially since I'm about 6000 miles from
home right now.

•
  What's the solution to cloning the MBR drive to a bootable GPT partition?

•
  Am I on the right track? I really want to preserve this Vista installation - I have 30+ years of data in legacy programs on it that would be very difficult to access in Win10.


TIA



Updated to 1803 via Windows Update - now D: OEM partition is showing

Here's how you remove it from OEM partition. Let's assume in this scenario that the OEM partition has letter F and it's listed as Volume 4. Here are the steps:

1. Do a search for cmd and right click it and run As Administrator.
2. Type the following commands one by one (hit Enter after each one of them):

> diskpart
> list volume
> select volume 4
> remove letter=F

Done.
