Windows 10: Latencymon optimize

Discus and support Latencymon optimize in Windows 10 BSOD Crashes and Debugging to solve the problem; Hi, I optimize my PC and I attack the latency, except that the problem, I do not happen Here are the statistics: [ATTACH] CONCLUSION... Discussion in 'Windows 10 BSOD Crashes and Debugging' started by Charlouw, Feb 11, 2020.

  1. Charlouw Win User

    Latencymon optimize


    Hi, I optimize my PC and I attack the latency, except that the problem, I do not happen
    Here are the statistics:

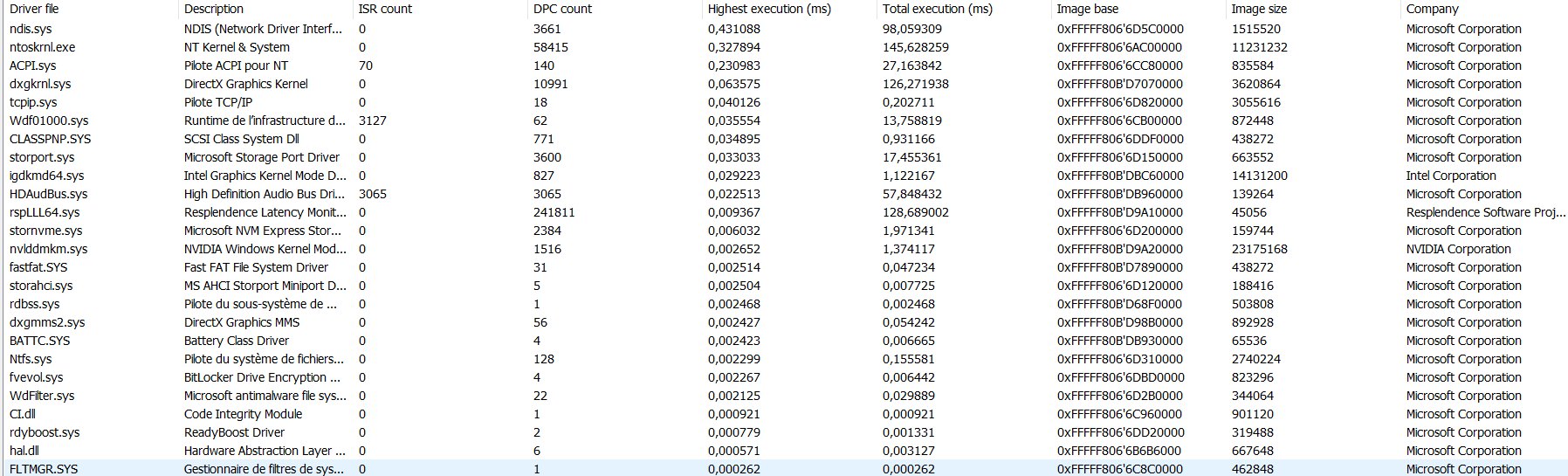

    Latencymon optimize 50f33a01-5397-49c8-8c1f-07f916d95916?upload=true.png


    CONCLUSION
    _________________________________________________________________________________________________________
    Your system appears to be suitable for handling real-time audio and other tasks without dropouts.
    LatencyMon has been analyzing your system for 0:13:58 h:mm:ss on all processors.


    _________________________________________________________________________________________________________
    SYSTEM INFORMATION
    _________________________________________________________________________________________________________
    Computer name: CHARLES
    OS version: Windows 10 , 10.0, build: 18363 x64
    Hardware: GE73VR 7RE, Micro-Star International Co., Ltd., MS-17C1
    CPU: GenuineIntel IntelR CoreTM i7-7700HQ CPU @ 2.80GHz
    Logical processors: 4
    Processor groups: 1
    RAM: 16265 MB total


    _________________________________________________________________________________________________________
    CPU SPEED
    _________________________________________________________________________________________________________
    Reported CPU speed: 2808 MHz

    Note: reported execution times may be calculated based on a fixed reported CPU speed. Disable variable speed settings like Intel Speed Step and AMD Cool N Quiet in the BIOS setup for more accurate results.

    WARNING: the CPU speed that was measured is only a fraction of the CPU speed reported. Your CPUs may be throttled back due to variable speed settings and thermal issues. It is suggested that you run a utility which reports your actual CPU frequency and temperature.



    _________________________________________________________________________________________________________
    MEASURED INTERRUPT TO USER PROCESS LATENCIES
    _________________________________________________________________________________________________________
    The interrupt to process latency reflects the measured interval that a usermode process needed to respond to a hardware request from the moment the interrupt service routine started execution. This includes the scheduling and execution of a DPC routine, the signaling of an event and the waking up of a usermode thread from an idle wait state in response to that event.

    Highest measured interrupt to process latency µs: 328,20
    Average measured interrupt to process latency µs: 2,032420

    Highest measured interrupt to DPC latency µs: 325,80
    Average measured interrupt to DPC latency µs: 0,726163


    _________________________________________________________________________________________________________
    REPORTED ISRs
    _________________________________________________________________________________________________________
    Interrupt service routines are routines installed by the OS and device drivers that execute in response to a hardware interrupt signal.

    Highest ISR routine execution time µs: 113,822650
    Driver with highest ISR routine execution time: ACPI.sys - Pilote ACPI pour NT, Microsoft Corporation

    Highest reported total ISR routine time %: 0,001330
    Driver with highest ISR total time: HDAudBus.sys - High Definition Audio Bus Driver, Microsoft Corporation

    Total time spent in ISRs % 0,001940

    ISR count execution time <250 µs: 6262
    ISR count execution time 250-500 µs: 0
    ISR count execution time 500-999 µs: 0
    ISR count execution time 1000-1999 µs: 0
    ISR count execution time 2000-3999 µs: 0
    ISR count execution time >=4000 µs: 0


    _________________________________________________________________________________________________________
    REPORTED DPCs
    _________________________________________________________________________________________________________
    DPC routines are part of the interrupt servicing dispatch mechanism and disable the possibility for a process to utilize the CPU while it is interrupted until the DPC has finished execution.

    Highest DPC routine execution time µs: 431,088319
    Driver with highest DPC routine execution time: ndis.sys - NDIS Network Driver Interface Specification, Microsoft Corporation

    Highest reported total DPC routine time %: 0,003837
    Driver with highest DPC total execution time: rspLLL64.sys - Resplendence Latency Monitoring and Auxiliary Kernel Library, Resplendence Software Projects Sp.

    Total time spent in DPCs % 0,016572

    DPC count execution time <250 µs: 327277
    DPC count execution time 250-500 µs: 0
    DPC count execution time 500-999 µs: 245

    :)

    Charlouw, Feb 11, 2020
    #1

  2. Disk optimization scheduling in Windows 10

    Hi,

    Welcome to Microsoft Community.

    I suggest you to follow the below steps and check if it helps.


    • In search select Defragment and optimize drives

    • Click on change settings

    • In optimization schedule

    • In frequency select the options accordingly.
    Please let us know if you need further assistance.

    Thank you.

    `

    Divya Murugan, Feb 11, 2020
    #2
  3. Arun B J Win User
    Unable to run disk optimization in windows 10

    Hi,



    Thank you for posting your query in Microsoft Community.



    I understand your concern and will assist you to resolve this issue.


    • What exactly happens when you try to optimize the drive?

    • Are you getting any error message?

    • Since when are you facing this issue?


    I suggest you to use Administrator account to perform Optimization and check if it helps.

    I suggest you to follow the steps below.


    • Go to Search, type services.msc and hit Enter

    • Make sure that following services are set to Automatic:

    • Remote Procedure Call (RPC).

    • DCOM Server Process Launcher.

    • RPC Endpoint Mapper.


    And also refer the link below.

    http://windows.microsoft.com/en-US/windows-8/improve-performance-optimizing-hard-drive



    Keep us posted on this issue so that we can assist you better.

    Thanks and Regards.

    Arun B J, Feb 11, 2020
    #3
  4. Latencymon optimize

    optimization not available

    Hi Brock,

    Thank you for being a part of Windows 10 Insider Preview.

    I appreciate you for providing details about the issue and we are glad to assist you.

    I suggest you to start the Optimize drives Service and check if it helps.

    Follow the below steps:

    • Press Windows key + R from the Keyboard.
    • Type services.msc and hit Enter.
    • Search for Optimize drives Service.
    • Double click on Optimize drives Service and click on
      Start
      button.
    • Click on the dropdown list and set the Startup type to Automatic.

    Reference: Refer to the following Microsoft article on Windows 10 help & how-to.

    http://windows.microsoft.com/en-us/windows-10/support

    Kindly let us know if you need any further assistance with Windows. We are glad to assist you.

    Thank you.

    Harshavardhan Rathod, Feb 11, 2020
    #4
