Windows 10: Lenovo thinkbook wake on lan from shutdown mode S5

I have read lots of post about WOL.


I know, by default, in win 10, WOL only works when the laptop in sleep S3 and hibernate S4 mode.


I have tested. It works to me.


My question is: Is it possible to let me wake on my laptop when it is in shutdown S5 mode? like change registry?

:)



Windows 10 wake on LAN not working from shutdown state

Hi,

The "Wake on LAN" (WOL) feature wakes a computer from a low-power state when a network adapter detects a WOL event. Typically, such an event is a specially constructed Ethernet packet. The default behavior in response to WOL events has changed from Windows
7 to Windows 8 and Windows 10.

Windows 7

In Windows 7, the default shutdown operation puts the system into the classic shutdown state (S5), and all devices are put into the lowest power state (D3). WOL from S5 is not officially supported in Windows 7. However, some network adapters can be left armed
for waking if enough residual power is available. Therefore, waking from S5 is possible on some systems if enough residual power is supplied to the network adapter even though the system is in the S5 state and devices are in D3.

Windows 8, Windows 8.1 and Windows 10

In Windows 8, 8.1 and Windows 10, the default shutdown behavior puts the system into the hybrid shutdown state (S4), and all devices are put into D3. WOL from S4 or S5 is unsupported. Network adapters are explicitly not armed for WOL in either S5 or S4 cases
because users expect zero power consumption and battery drain in the shutdown state. This behavior removes the possibility of invalid wake-ups when an explicit shutdown is requested. Therefore, WOL is supported only from sleep (S3) or hibernation (S4) states
in Windows 8, 8.1 and Windows 10.

In Windows 8, 8.1 and Windows 10, hybrid shutdown (S4) stops user sessions but lets the contents of kernel sessions be written to the hard disk. This enables faster startups.

To disable the S4 state in Windows 8, 8.1 and Windows 10, follow these steps.

Note We do not recommend that you disable the hybrid shutdown (S4) state.

1- In Control Panel, open the Power Options item.

2- Click the Choose what the power buttons do link.

3- Clear the Turn on fast startup (recommended) check box.

4- Click Save Settings.

Please let me know, if that helps.

Kind Regards:

Engr. Malik Yasir



WOL Wake on Lan not working after upgrade from windows 8.1

Hi Chris and Jessen P,

The setting for the soft off S5 state if your bios supports it:

Look at this artikel:

System Power States - Win32 apps

It claims:


"Wake-on-LAN behavior

The wake-on-LAN (WOL) feature wakes the computer from a low power state when a network adapter detects a WOL event (typically, a specially constructed Ethernet packet).

The default shutdown behavior puts the system into hybrid shutdown (S4) and all devices are put into D3. Remote wake from hybrid shutdown (S4) or classic shutdown (S5) is completely unsupported. NICs are explicitly not armed for
wake in both the classic shutdown (S5) and hybrid shutdown (S4) cases because users expect zero power consumption and battery drain in the shutdown state. This behavior removes the possibility of spurious wakes when explicit shutdown was requested.
As a result, Wake-On-LAN is only ever supported from sleep (S3) or hibernate (S4).

Hybrid shutdown (S4) stops user sessions but the contents of kernel sessions are written to hard disk. This enables faster boot. "

But that is not true:

1. Update your driver from the vendor site

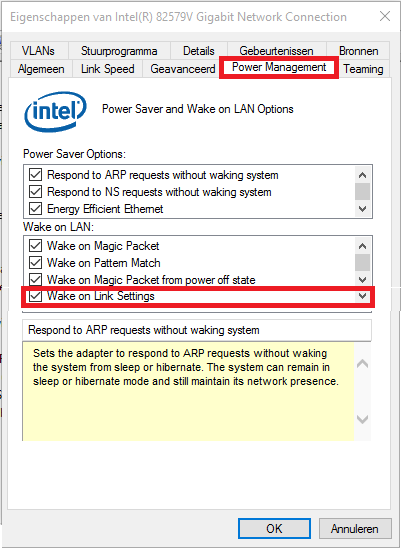

2. If you have the option to enable wake on link you can shut your pc down and wake it by WOL.

3. Standy and hibernation should work if you apply the settings of Jessen P.



Hope this helps you or someone else.

Kind regards,



isee2it.nl

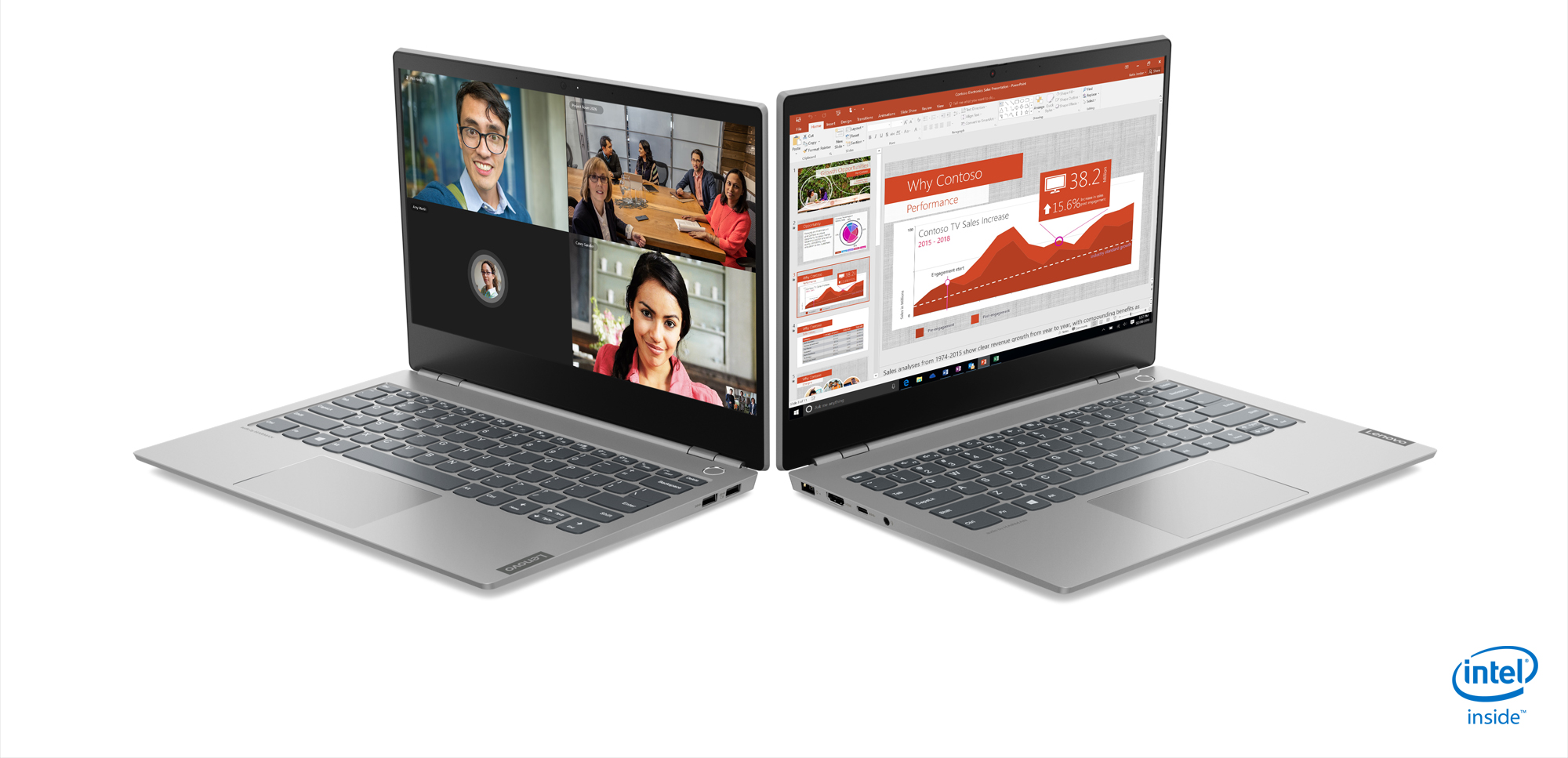

New Lenovo ThinkBook 13s and 14s laptops - built for business
