Windows 10: Linux Samba settings to display Windows shares

Discus and support Linux Samba settings to display Windows shares in Windows 10 Virtualization to solve the problem; Hi folks Samba needs a different setting to display Windows or any of the SAMBA shares - especially if its version of Linux / NAS server needs / uses... Discussion in 'Windows 10 Virtualization' started by jimbo45, Oct 9, 2018.

  1. jimbo45 Win User

    Linux Samba settings to display Windows shares


    Hi folks

    Samba needs a different setting to display Windows or any of the SAMBA shares - especially if its version of Linux / NAS server needs / uses SMB1

    You still need to set the SMB1 option in Add features to windows of course.

    also in the samba config file ensure this line is in the global section


    [global]
    max protocol = NT1 <===+++++++++++++++++

    (Not client max protocol !!)

    what this actually does (apart from working !!! ) I have no idea but it fixed 4 Linux machines which suddenly stopped listing Samba shares under network. I saw the suggestion on some weird website - have no idea of the link though - must have been imbibing some of those nice malted fluids kari likes. !!!

    Works also with ubuntu guests as well as Hosts and Centos guests and hosts. haven't messed around with other Linux distros as I don't really use them.


    Linux Samba settings to display Windows shares [​IMG]


    Cheers
    jimbo

    :)

    jimbo45, Oct 9, 2018
    #1
  2. Kenneth Mon Win User

    Windows 10 Pro no longer connects to Samba Share on Linux Workstation

    Hello Simon,

    To better assist you, kindly provide the following information:

    • What version of Samba Share are you using?
    • What troubleshooting steps have your done so far?
    We look forward to your response.

    Thank you.

    Kenneth Mon, Oct 9, 2018
    #2
  3. dCipherComputing Win User
    Windows 10 Pro no longer connects to Samba Share on Linux Workstation

    Hi

    Up until the latest Windows update I was able to access a Samba share on my Linux workstation. Today it asks for a user's name and password but that was not required in the past. I have not set a user name and password on the share and even when I do, Windows
    says the user or password are incorrect.

    How do I fix this issue? I sure wish MS would stop breaking things with updates!

    Thanks

    Simon

    dCipherComputing, Oct 9, 2018
    #3
  4. freaksavior Win User

    Linux Samba settings to display Windows shares

    Setting up SAMBA

    For some reason my windows server will not connect to my linux server running centos6.3

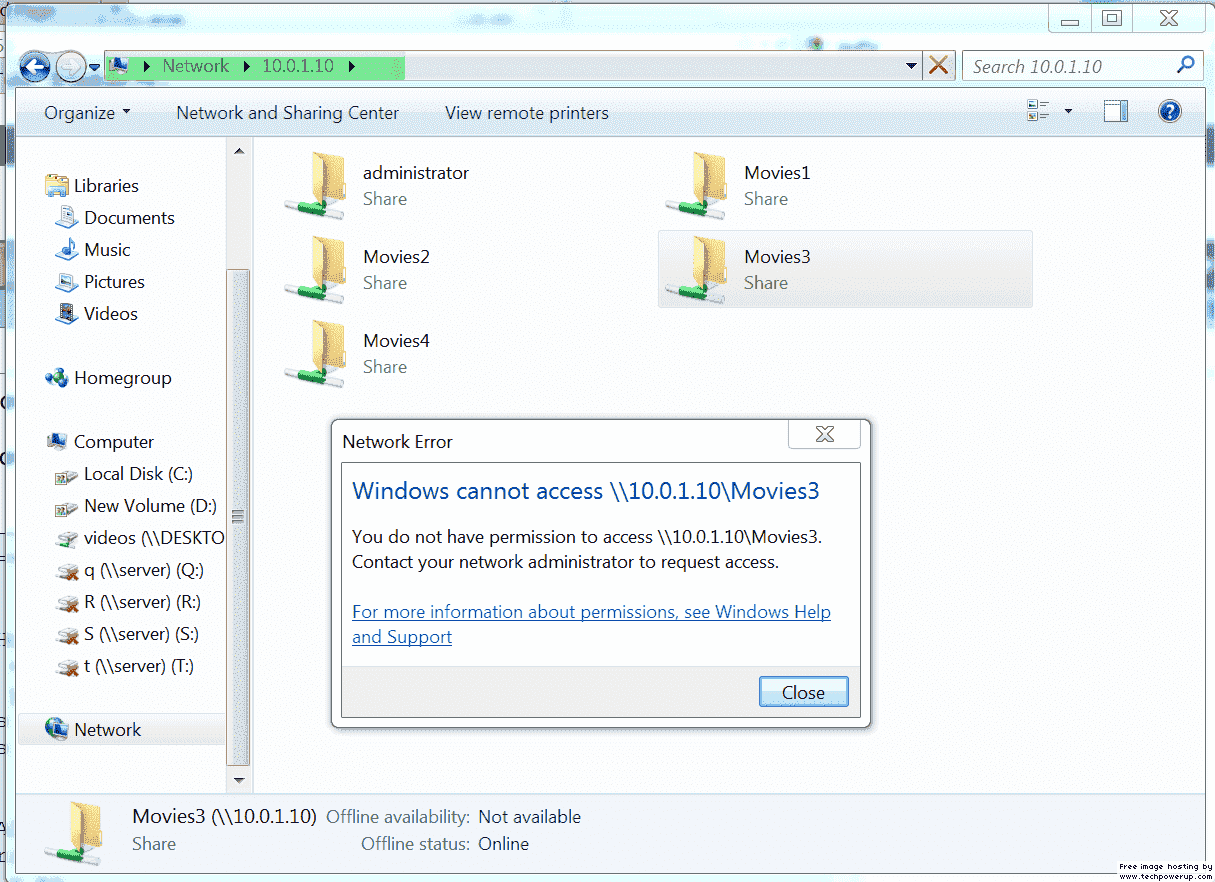

    Here is what it does:


    Linux Samba settings to display Windows shares screen%20cap.png


    and here is my samba share config

    Code: cat /etc/samba/smb.conf |less # Make sure not to do that on system directories as they may already have # been marked with othe SELinux labels. # # Use ls -ldZ /path to see which context a directory has # # Set labels only on directories you created! # To set a label use the following: chcon -t samba_share_t /path # # If you need to share a system created directory you can use one of the # following (read-only/read-write): # setsebool -P samba_export_all_ro on # or # setsebool -P samba_export_all_rw on # # If you want to run scripts (preexec/root prexec/print command/...) please # put them into the /var/lib/samba/scripts directory so that smbd will be # allowed to run them. # Make sure you COPY them and not MOVE them so that the right SELinux context # is applied, to check all is ok use restorecon -R -v /var/lib/samba/scripts # #-------------- # #======================= Global Settings ===================================== [global] # ----------------------- Network Related Options ------------------------- # # workgroup = NT-Domain-Name or Workgroup-Name, eg: MIDEARTH # # server string is the equivalent of the NT Description field # # netbios name can be used to specify a server name not tied to the hostname # # Interfaces lets you configure Samba to use multiple interfaces # If you have multiple network interfaces then you can list the ones # you want to listen on (never omit localhost) # # Hosts Allow/Hosts Deny lets you restrict who can connect, and you can # specifiy it as a per share option as well # workgroup = HORSLEY server string = Samba Server Version %v netbios name = Mediaserver : ; interfaces = lo eth0 10.0.1.1/2 ; hosts allow = 127. 192.168.12. 192.168.13. # --------------------------- Logging Options ----------------------------- # # Log File let you specify where to put logs and how to split them up. # # Max Log Size let you specify the max size log files should reach # logs split per machine log file = /var/log/samba/log.%m # max 50KB per log file, then rotate max log size = 50 # ----------------------- Standalone Server Options ------------------------ # # Scurity can be set to user, share(deprecated) or server(deprecated) # # Backend to store user information in. New installations should # use either tdbsam or ldapsam. smbpasswd is available for backwards # compatibility. tdbsam requires no further configuration. security = user passdb backend = tdbsam # ----------------------- Domain Members Options ------------------------ # # Security must be set to domain or ads # # Use the realm option only with security = ads # Specifies the Active Directory realm the host is part of # # Backend to store user information in. New installations should # use either tdbsam or ldapsam. smbpasswd is available for backwards # compatibility. tdbsam requires no further configuration. # # Use password server option only with security = server or if you can't # use the DNS to locate Domain Controllers # The argument list may include: # password server = My_PDC_Name [My_BDC_Name] [My_Next_BDC_Name] # or to auto-locate the domain controller/s # password server = * ; security = domain ; passdb backend = tdbsam ; realm = MY_REALM ; password server = <NT-Server-Name> # ----------------------- Domain Controller Options ------------------------ # # Security must be set to user for domain controllers # # Backend to store user information in. New installations should # use either tdbsam or ldapsam. smbpasswd is available for backwards # compatibility. tdbsam requires no further configuration. # # Domain Master specifies Samba to be the Domain Master Browser. This # allows Samba to collate browse lists between subnets. Don't use this # if you already have a Windows NT domain controller doing this job # # Domain Logons let Samba be a domain logon server for Windows workstations. # # Logon Scrpit let yuou specify a script to be run at login time on the client # You need to provide it in a share called NETLOGON # # Logon Path let you specify where user profiles are stored (UNC path) # # Various scripts can be used on a domain controller or stand-alone # machine to add or delete corresponding unix accounts # ; security = user ; passdb backend = tdbsam ; domain master = yes ; domain logons = yes # the login script name depends on the machine name ; logon script = %m.bat # the login script name depends on the unix user used ; logon script = %u.bat ; logon path = \\%L\Profiles\%u # disables profiles support by specifing an empty path ; logon path = ; add user script = /usr/sbin/useradd "%u" -n -g users ; add group script = /usr/sbin/groupadd "%g" ; add machine script = /usr/sbin/useradd -n -c "Workstation (%u)" -M -d /n ohome -s /bin/false "%u" ; delete user script = /usr/sbin/userdel "%u" ; delete user from group script = /usr/sbin/userdel "%u" "%g" ; delete group script = /usr/sbin/groupdel "%g" # ----------------------- Browser Control Options ---------------------------- # # set local master to no if you don't want Samba to become a master # browser on your network. Otherwise the normal election rules apply # # OS Level determines the precedence of this server in master browser # elections. The default value should be reasonable # # Preferred Master causes Samba to force a local browser election on startup # and gives it a slightly higher chance of winning the election ; local master = no ; os level = 33 ; preferred master = yes #----------------------------- Name Resolution ------------------------------- # Windows Internet Name Serving Support Section: # Note: Samba can be either a WINS Server, or a WINS Client, but NOT both # # - WINS Support: Tells the NMBD component of Samba to enable it's WINS Server # # - WINS Server: Tells the NMBD components of Samba to be a WINS Client # # - WINS Proxy: Tells Samba to answer name resolution queries on # behalf of a non WINS capable client, for this to work there must be # at least one WINS Server on the network. The default is NO. # # DNS Proxy - tells Samba whether or not to try to resolve NetBIOS names # via DNS nslookups. ; wins support = yes ; wins server = w.x.y.z ; wins proxy = yes ; dns proxy = yes # --------------------------- Printing Options ----------------------------- # # Load Printers let you load automatically the list of printers rather # than setting them up individually # # Cups Options let you pass the cups libs custom options, setting it to raw # for example will let you use drivers on your Windows clients # # Printcap Name let you specify an alternative printcap file # # You can choose a non default printing system using the Printing option ; load printers = yes ; cups options = raw ; printcap name = /etc/printcap #obtain list of printers automatically on SystemV ; printcap name = lpstat ; printing = cups # --------------------------- Filesystem Options --------------------------- # # The following options can be uncommented if the filesystem supports # Extended Attributes and they are enabled (usually by the mount option # user_xattr). Thess options will let the admin store the DOS attributes # in an EA and make samba not mess with the permission bits. # # Note: these options can also be set just per share, setting them in global # makes them the default for all shares ; map archive = no ; map hidden = no ; map read only = no ; map system = no ; store dos attributes = yes #============================ Share Definitions ============================== [homes] comment = Home Directories browseable = no writable = yes ; valid users = %S ; valid users = MYDOMAIN\%S ;[printers] ; comment = All Printers ; path = /var/spool/samba ; browseable = no ; guest ok = no ; writable = no ; printable = yes # Un-comment the following and create the netlogon directory for Domain Logons ; [netlogon] ; comment = Network Logon Service ; path = /var/lib/samba/netlogon ; guest ok = yes ; writable = no ; share modes = no # Un-comment the following to provide a specific roving profile share # the default is to use the user's home directory ; [Profiles] ; path = /var/lib/samba/profiles ; browseable = no ; guest ok = yes # A publicly accessible directory, but read only, except for people in # the "staff" group ; [public] ; comment = Public Stuff ; path = /home/samba ; public = yes ; writable = yes ; printable = no ; write list = +staff [Movies1] path = /Movies1 writeable = yes browseable = yes valid users = administrator [Movies2] path = /Movies2 writeable = yes browseable = yes valid users = administrator [Movies3] path = /Movies3 writeable = yes browseable = yes valid users = administrator [Movies4] commnet = Public Storage path = /Movies4 browseable = yes guest ok = yes writable = yes printable = no[/quote] What am I doing wrong? I've setup an administrator user ( I think) but it will not connect to the share, they show up but no access. Any ideas?

    freaksavior, Oct 9, 2018
    #4
