    M.2 SSD in external bay


    I have been using FX6300 machine for over 8 years and decided to build a new one with 5600X. My problem is with the two M.2 SSD after moving to an external bay. The two M.2s are recognized and HD Tune indicates read speed of the M.2 is 2.5MB/sec . W10 installed on one of the M.2 SSDs does not boot. I have been using U.2 SSDs placed on an external bay as shown below so that I wanted to do the same with M.2 SSD. Is there anyone doing the same successfully?

    :)

    churin, Jun 28, 2021
    #1
  2. bobkn Win User

    Issue with upgrading to m.2 NVME, Help?

    I've done what "ignatzsonic" has done, multiple times.

    Image the existing SSD to another drive, which could be the internal HD or an external one. Use the imaging software to create a bootable USB rescue drive. Swap SSDs. Boot from the USB rescue drive, and restore the image to the new SSD. Use Disk Management to resize the main partition if the new SSD is larger than the old, and the imaging software didn't already do that.

    Is the laptop in question the ASUS FX553VD? A little Web search suggests that it supports NVME M.2 SSDs, but I wish that I was certain. It worries me slightly that Crucial doesn't list any M.2 NVME SSD upgrades for it.

    bobkn, Jun 28, 2021
    #2
  3. Bramble98 Win User
    DELL XPS 8930 Upgrade SSD M.2 and Add SATA SSD

    Hi - I wonder if anyone can help please. I have a Dell XPS 8930. It’s about 18 months old. I’m very happy with the PC, especially now the fan noise is under better control. My Dell came with a Toshiba SSD NVMe M.2 256 GB and a HDD. Win 10 Pro (v1909) sits on the Toshiba M.2 SSD and my data files are on the HDD. The M.2 SSD is getting a little low on free space so I’ve bought a higher capacity (500 GB) Samsung M.2 SSD. Having suffered disc failure in the past I also have a Samsung SATA SSD which will fit in one of the spare drive bays. I will clone (not mirror) the M2. SSD to the SATA SSD weekly for extra protection.

    My intention is to:

    1) Fit the SATA SSD in one of the spare drive bays; 2) Restore an image of the existing Toshiba M.2 SSD to the new SATA SSD;
    3) Remove the Toshiba M.2 SSD;
    4) Reboot from the new SATA SSD (Q – does this require any change to settings?); 5) Fit the Samsung M.2 SSD and clone from SATA SSD.
    6) Reboot, enter BIOS and change boot order to Samsung M.2 SSD. This all seems a bit too straightforward and I’m sure there are other things I need to do to make sure everything works o.k. and in particular the PC boots correctly at stages 4 and 6. For example, the SATA option in my BIOS is set to RAID, and I did read that I might have to change that to AHCI but at what stage.


    I use Macrium Reflect Home Edition for image files and cloning, and have created a rescue disc.
    Any thoughts\suggestions gratefully received. Thank you.

    Bramble98, Jun 28, 2021
    #3
  4. M.2 SSD in external bay

    How to check M.2 SSD Health ?

    Hi friends,

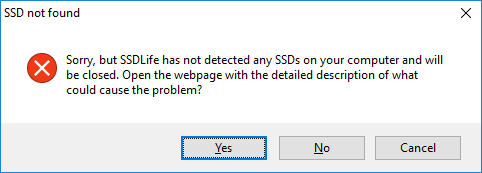

    I have a problem while checking my SSD Health. The application like SSD-Life can't recognize my M.2 SSD. My Notebook is HP Spectre 13.

    Any suggestion ?

    Thanks


    M.2 SSD in external bay e868cfa5-70cc-40a6-b769-c76b6e56f322.png

    VincentAlim, Jun 28, 2021
    #4
