Windows 10: Main M2 SSD is not Primary Partition in Disk Management

Discus and support Main M2 SSD is not Primary Partition in Disk Management in Windows 10 Drivers and Hardware to solve the problem; Just as title says. Just checking my system for other reasons, and I noticed this. My main "C" M2 SSD, is not "blue" in disk management, the colour... Discussion in 'Windows 10 Drivers and Hardware' started by MarcoArik, Feb 12, 2020 at 11:42 AM.

  1. MarcoArik Win User

    Main M2 SSD is not Primary Partition in Disk Management


    Just as title says. Just checking my system for other reasons, and I noticed this.

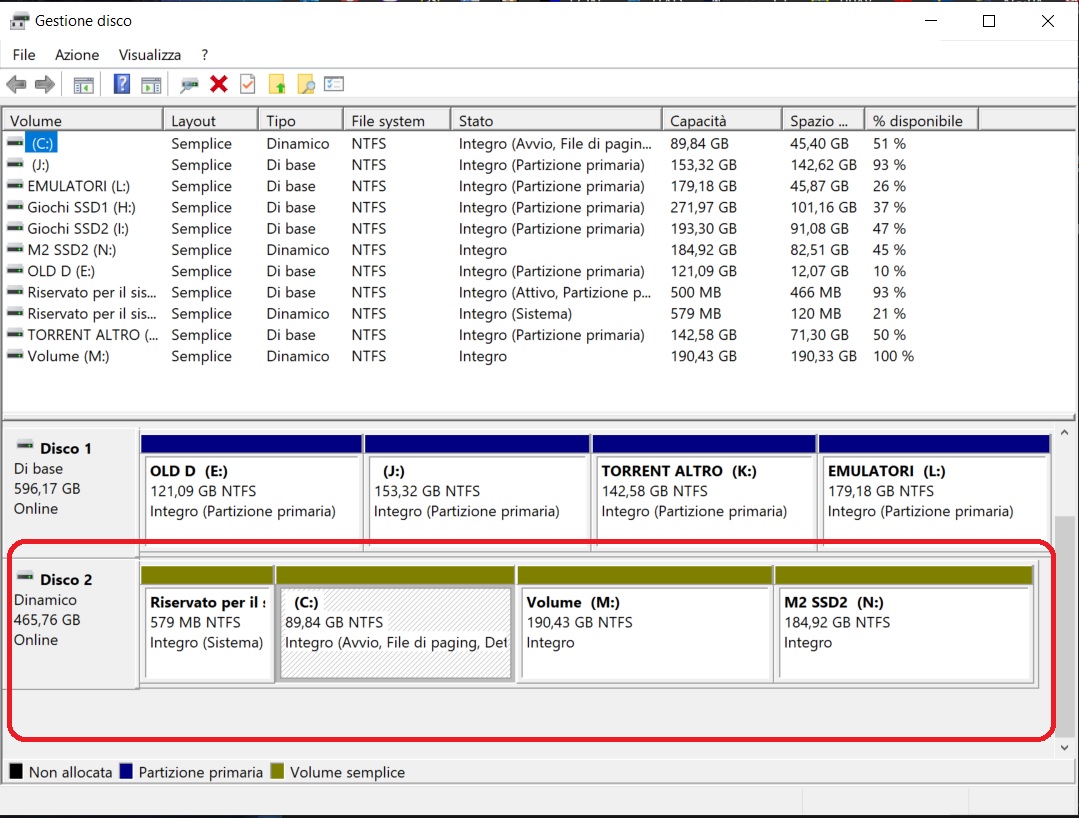

    My main "C" M2 SSD, is not "blue" in disk management, the colour for Primary Partition. It's in green, as "Simple Volume". Sorry if this isn't the proper term in english, but I have my OS in italian.


    Is there anything wrong in this?

    Main M2 SSD is not Primary Partition in Disk Management bc8f88cd-33a9-4cee-bf80-23268615d904?upload=true.jpg

    :)

  2. W1zzard Win User

    W7 Hard drive partition issue

    to get rid of that 100 meg windows partition that setup creates for you on a new install on a blank hdd:

    - press shift+f10 when on the partition management screen in setup <-- this opens a command prompt
    - diskpart <-- start the windows command line partition management tool
    - list disk <--- list the installed hdds in this computer for the next step
    - select disk 0 <- might have to replace 0 with the number of the correct disk
    - clean <-- this will erase all data on the disk you selected one step up- dont use the wrong disk!
    - create partition primary <- creates a primary partition taking up all space on the drive, adjust the command if necessary
    - exit, exit to exit diskpart and the command prompt
    - click refresh in partition manager and select your newly created partition and install to that

  3. Migration from Hdd to m2.SSD

    Recently I have purchased a new laptop (hp probook 450 G4) and a new original windows 10 home edition and now I want to upgrade my 1 TB Hdd to a new m2 ssd and my laptop supports another slot for the m2 ssd so I can run both
    the m2 ssd & hdd at the same time but I will make the m2 ssd the boot drive and the hdd will be the data drive.
    MY Question is how can I migrate system drive to the new m2 ssd without the need to reinstall windows or any other installed programs and there is another thing, when I checked the disk management I found 3 recovery partitions will I have to
    migrate them too or I have to migrate the system drive only

    MostafaEl-Desoky, Feb 12, 2020 at 12:26 PM
    #3
  4. Main M2 SSD is not Primary Partition in Disk Management

    Disk management console view is not up-to-date

    i dont know how to fix your disk management, but i can fix your partition problems...




    open up Command Prompt with admin rights. (Right click, run as admin)


    enter in
    DISKPART
    list disk

    then find the Disk number for your Raid array... lets call it number 7 ( you can tell what disk is what by the total size)
    type in

    Select Disk 7
    List Partition (will give you a list of all the partitions..)
    Select Partition 1 (im assuming you only have 1 partition on Disk 7) repeat this step if you have more partitions.
    ASSIGN


    that should get the array up and running ready to use.


    EDITED.

    any problems, post back ^^


    Still EDITING *Stick Out Tongue Main M2 SSD is not Primary Partition in Disk Management :p

    side question, have you tried restarting the PC?
