Windows 10: Microsoft improves SMB compression in Windows 11 and Server 2022

Discus and support Microsoft improves SMB compression in Windows 11 and Server 2022 in Windows 10 News to solve the problem; Microsoft released optional updates for the company's Windows 11 and Windows Server 2022 operating systems earlier this month. One of the new features... Discussion in 'Windows 10 News' started by GHacks, Aug 29, 2022.

  1. GHacks
    GHacks New Member

    Microsoft improves SMB compression in Windows 11 and Server 2022


    Microsoft released optional updates for the company's Windows 11 and Windows Server 2022 operating systems earlier this month. One of the new features of the releases reveals that the operating systems compress files now regardless of size.

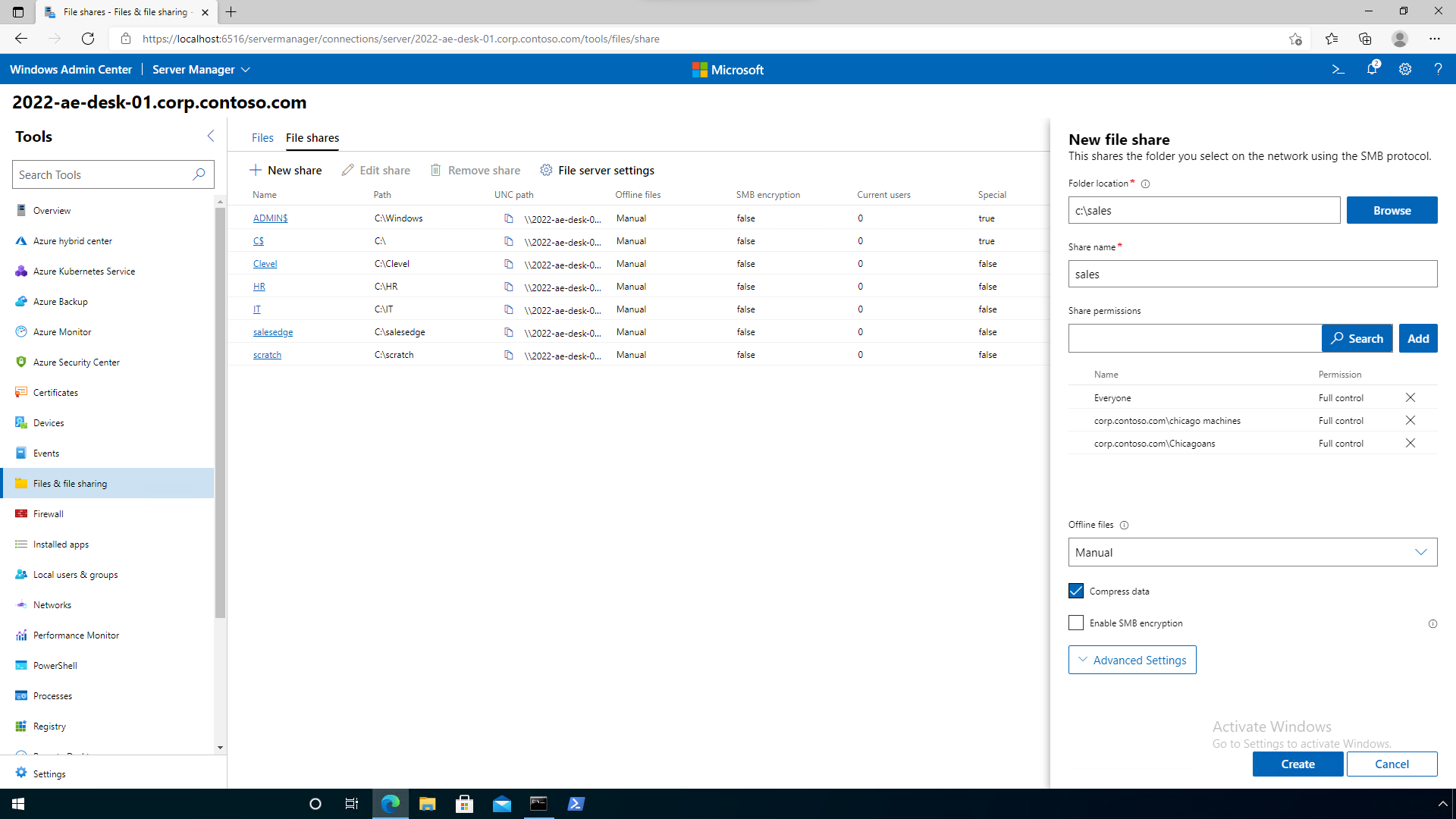

    Microsoft improves SMB compression in Windows 11 and Server 2022 fileservercompress.png
    source: Microsoft

    The release notes provide no additional information, but Microsoft has updated the SMB compression website and published a blog post on the Tech Community website.

    When Microsoft released Windows 11 and Windows Server 2022, it included SMB compression capabilities. SMB, which stands for Server Message Block, is a communication protocol that supports file and printer sharing, network browsing, and more.

    SMB compression aims to reduce the size of files that are transferred using SMB. The initial release in Windows 11 and Server 2022 introduced compression but had strict rules regarding it.


    SMB compression allows an administrator, user or application to request compression of files as they transfer over the network. This removes the need to first manually deflate a file with an application, copy it, then inflate on the destination computer. Compressed files will consume less network bandwidth and take less time to transfer, at the cost of slightly increased CPU usage during transfers. SMB compression is most effective on networks with less bandwidth, such as a client's 1Gbps ethernet or Wi-Fi network; a file transfer over an uncongested 100Gbps ethernet network between two servers with flash storage may be just as fast without SMB compression in practice, but will still create less congestion for other applications.

    In essence, SMB compression ignored a good number of files, even though transfers would have benefitted from the compression of these files.

    Microsoft implemented a threshold of 100 MiB that needed to be compressible in the first 500 MiB of a file. This meant that smaller files would not benefit from the compression feature. Large file transfers could suffer as well, if the first 500 MiB were not as compressible.

    Now, with the update released, SMB Compression ignores size. All files will benefit from requests to compress files before transferring them.

    Microsoft concedes that all files are not equal when it comes to compression. Already compressed file types, such as JPG or ZIP, do not benefit much, if at all, from the compression feature. Other file types, including ISO or VHDX, will usually benefit from it.

    Users, administrators and apps may request compression. Administrators may use new policies and PowerShell commands to control the functionality.

    Group Policy:


    \Computer Configuration\Administrative Templates\Network\Lanman Workstation

    Disable SMB Compression

    Use SMB Compression by Default



    \Computer Configuration\Administrative Templates\Network\Lanman Server

    Disable SMB Compression

    Request traffic compression for all shares

    PowerShell for SMB client


    Set-SMBClientConfiguration [-EnableCompressibilitySampling <bool>] [-CompressibilitySamplingSize <uint64>] [-CompressibleThreshold <uint64>] [-DisableCompression <bool>] [-RequestCompression <bool>]
    -DisableCompression $true or $False - never compress even if server or application requested
    -RequestCompression $true or $false - always request compression even if server or application didn't specify it

    -EnableCompressibilitySampling $true or $false - control legacy sampling behavior

    -CompressibilitySamplingSize 1- 9,007,199,254,740,992 - size in bytes of range to sample in a file looking for compressibility

    -CompressibleThreshold - 1- 9,007,199,254,740,992 - size in bytes of compressible data that must be found within that range

    Additional information is available on the linked resources above.

    The updates will be included in the September 2022 Patch Tuesday cumulative updates, which will be released on September 13, 2022.

    Thank you for being a Ghacks reader. The post Microsoft improves SMB compression in Windows 11 and Server 2022 appeared first on gHacks Technology News.

    read more...

    GHacks, Aug 29, 2022
    #1
  2. Brink Win User

    Windows Server 2022 SMS and SMB

    Source: https://techcommunity.microsoft.com/...b/ba-p/2992553

    Brink, Aug 29, 2022
    #2
  3. Brink Win User
    Microsoft released Windows Server 2022 on August 18, 2021

    Read more:

    Brink, Aug 29, 2022
    #3
  4. Microsoft improves SMB compression in Windows 11 and Server 2022

    How to download Window Server 2022

    After my client purchased Window Server 2022 license using microsoft csp form.
    What is a step to download Window Server 2022.

    TorlarpLeenabanchong, Aug 29, 2022
    #4
