Windows 10: Microsoft Usbccid Smartcard Reader (WUDF) not working in Windows 10

Following a restart operation in Windows, the Microsoft Usbccid Smartcard Reader may show an error status and display an exclamation mark in a yellow triangle, indicating the device not working properly. Let’s learn how to fix it.

​

Microsoft Usbccid smartcard reader (WUDF) not working


In addition to the error signal, you’ll also see a message bearing the following line of description.

This device is not working properly because Windows cannot load the drivers required for this device. (Code 31)​

{Operation Failed}​

The requested operation was unsuccessful.​

It occurs because the smartcard driver tries to create an instance of smart card class extension but the attempt fails and the driver refuses to load.

What is Microsoft Usbccid Smartcard Reader (WUDF)?


Microsoft Usbccid Smartcard Reader is an easy-to-install device that is used to connect a smart card with a computer via a USB protocol namely, CCID or chip card interface device. The advantage of using this protocol is that it negates the need for each manufacturer of smartcards to provide its own reader or protocol.

How to fix Code 31 in Device Manager when Microsoft Usbccid Smartcard Reader is in a problem state?


To ensure a successful driver initialization, you’ll be required to add the RetryDeviceInitialize registry key and restart the computer.

1. Open Registry Editor.
2. Navigate to this key – \Cryptography\Calais\Readers.
3. Create a new DWORD (32-bit) value.
4. Name it as RetryDeviceInitialize.
5. Double-click it and enter the value as 1.
6. Restart your PC.

The method requires you to make changes to the Registry Editor. Serious consequences can occur if you make changes to the Registry Editor incorrectly. Create a System Restore point before proceeding further.

Press Win+R in combination to open the Run dialog box.

Type Regedit.exe in the empty field of the box and hit Enter.

When the Registry Editor opens, navigate to the following path address –

HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Cryptography\Calais\Readers.

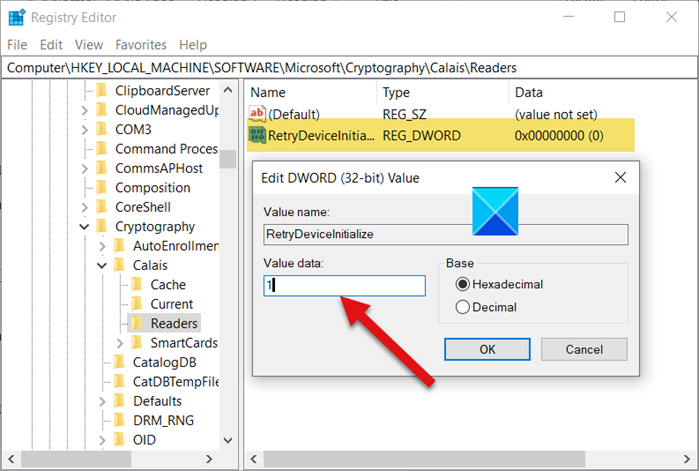

Switch to the right-pane, right-click and choose New > DWORD (32-bit) value.

​

Name it as RetryDeviceInitialize.

Double-click the entry to edit its value and in the Edit String Value box that appears enter the value as 1.

Restart your PC.

Following this, the Microsoft Usbccid smartcard reader (WUDF) should start working properly in Windows 10.

Read: Fix Device Not Migrated message.


This article Microsoft Usbccid Smartcard Reader (WUDF) not working in Windows 10 first appeared on TheWindowsClub.com.

read more...



Smartcard Reader not reading SD card

Platform: Windows 10

64 bit desktop computer

Card reader: Microsoft Usbccid Smartcard Reader (WUDF)

Card reader has light on. When an SD card or a XD card inserted into card reader, second light comes on but no sound, no new windows and card doesn't appear in File Explorer. Device Manager says that card reader is working properly and that the latest driver
is installed. Any ideas?



SD card reader works intermittently

I have a Dell E6220. After ugrading to Windows 10, the SD card reader works intermittently. If I remove the card, I will need to reboot the computer to have the card recognized in File Explorer.

In Device Manger, the device appears and indicates it is functioning correctly. When I upgrade the driver, it indicates it is currently using the best driver. Running the hardware troubleshooter failed to fix the problem.

The SD card reader is Microsoft Usbccid Smartcard Reader (WUDF) and the driver is version 10.0.10240.16384 signed by Microsoft Windows



Microsoft USBCCID Smartcard Reader WUDF

A Digital Signature token (ePass2003 Auto) is being detected in my PC but token is not being read. It does not show up in the token manager.

Getting an error message in USB area that this device is not working properly because Windows cannot load the drivers required for this device (Code 31).

Funny thing is till yesterday it was working fine.

Please help.
