Windows 10: My system is amd ryzen 3 2200 cpu with asus m320 chipset motherboard, i install windows 10...

system not booting, system rapier arrived.

:)



What additional steps are required to get Windows 11 Pro install by USB drive on a new build system with X670-P chipset and a Ryzen 7950X cpu?

I keep getting the "this system does not meet minimum requirement" even though the CPU and Chipset are listed as compatible. I have checked the Bios and TPM 2.0 is on in the settings. This is a new built system with blank hard drives.

Motherboard MSI PRO X670-P WIFI

CPU: AMD Ryzen 9 7950X

Bios Ver: E7D67AMS.110

Bios Build Date: 08/16/2022

What additional steps are required to get Window installed on my new system?



AMD Ryzen 2200G systems hang, usually no BSOD

Problem: Systems hard lock after anywhere from a few minutes of uptime to a couple of days. Image is frozen on screen and no mouse cursor is visible, pressing Ctrl+Shift+Win+B to reset graphics driver does nothing. Only one of the PCs has ever bluescreened
and it only did so one time, with error code 0x1000009f DRIVER_POWER_STATE_FAILURE for ntoskrnl.exe. I tried updating, downgrading, and reinstalling GPU, NIC, and sound drivers but no luck. Every other time the PCs don't bluescreen when they lock up and there
is nothing in the Event Viewer that is helpful.

Troubleshooting steps tried:

1. Updated AMD drivers from 18.5.1 to 18.7.1 and 18.8.1.
2. Clean installed both 18.8.1 and 18.5.1.
3. Installed Realtek LAN and audio drivers from ASRock.
4. Clean installed 17.7 AIO driver package from ASRock (listed as 17.40).
5. Updated BIOS from 4.70 to 4.90.
6. Reset BIOS.
7. Uninstalled August 2018 Windows 10 patches.
8. Switched to Balanced power plan instead of Ryzen Balanced.
9. Disabled USB suspending and PCIe ASPM
10. Switched to High performance, disabled ASPM & USB SS
11. Increased SOC voltage to 1.1 and RAM voltage to 1.3.
12. Removed AMD drivers, used Microsoft Basic Display Adapter.
13. Uninstalled Malwarebytes Premium 3.5.1
14. Started in Safe Mode w/ Networking
15. Repair install 1803.
16. Used only one RAM stick at 2133MHz.

Next steps:

1. Clean install 1803
2. Install 1709, delay 1803 update
3. RMA ASRock motherboards
4. Replaced ASRock motherboards
5. Replace AMD with Intel

Identical systems specs:

• AMD Ryzen 2200G CPU
• ASRock AB350M Pro4 Micro ATX Motherboard
• G.Skill Ripjaws V 8GB (4GBx2) 2666MHz DDR4 RAM
• Samsung 860 EVO 250GB SSD
• EVGA 450W Bronze PSU
• Fractal Design Core 1000 Micro ATX Case
• Windows 10 Pro x64 v1803

Other system specs:

• AMD Ryzen 2200G CPU
• Asus TUF B350M Plus Gaming Micro ATX Motherboard
• Corsair Vengeance LPX 8GB (4GBx2) 3000MHz DDR4 RAM
• Samsung 860 EVO 250GB SSD
• Corsair TX650M Gold PSU
• Fractal Design Node 804 Micro ATX Case
• Windows 10 Pro x64 v1803

Details:

I built four identical systems and one with different motherboard and RAM, all of them are having this problem to varying degrees of severity. The worst one locked up within 15 minutes, but the best one used to work for over a week without issues. I tried
doing a repair install on one of the systems, during the preparation period for the upgrade the system locked up at 16%. I was able to get it to complete to the point of restarting to do the majority of the install, but that locked up multiple times as well.

I've looked through the event log, and there is nothing between the systems that points to the source of the problem. There is no one thing that causes the systems to lockup, and there is no rime or reason to when they lockup. One of them did seem to lockup
every hour, but otherwise it happens at random.

I'm at my wits end; in over 15 years of troubleshooting and building PCs I have never had issues of this scope or inconsistency. I repair computers for a living, and I have never seen issues like this. I have a server based on AMD's Epyc 7351P and my main
desktop is based on the Ryzen 7 1700, and I haven't had issues anywhere close to this on those systems. At this point I'm seriously considering replacing the CPUs and motherboards with Intel equivalents. I've I'm willing to try any suggestions any one has,
no matter how much of a long shot they are or how stupid they seem.

Here's a link to the dump file, driver list, and system info: Microsoft OneDrive



AMD Chipset Driver 3.10.22.706 Won't Install

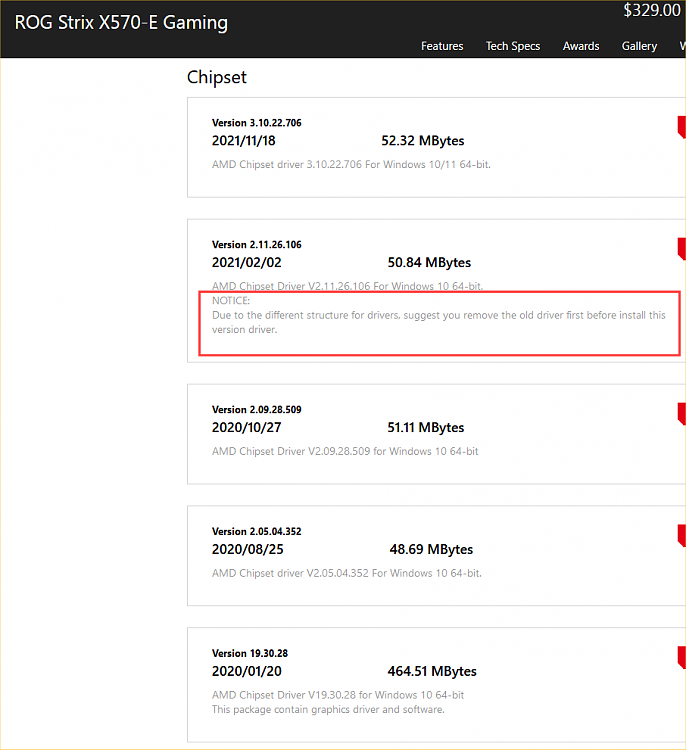

It seems we're only up to v3.10.08.506. That may be the problem? https://www.amd.com/en/support/kb/re...et-3-10-08-506 I do see v3.10.22.706 at my motherboard's website with a note... NOTICE: Due to the different structure for drivers, suggest you remove the old driver first before install this version driver. At YOUR motherboard's website, I don't see the notice on this one. But I do see it on the one before...

Chipset driver installation instructions from AMD... https://www.amd.com/en/support/kb/fa...hipset-Drivers
