Windows 10: New SSD detected as Disk 1 but "No Media" and 0 mb space.

Discus and support New SSD detected as Disk 1 but "No Media" and 0 mb space. in Windows 10 Network and Sharing to solve the problem; Hi, I have recently purchased a 1TB XPG SX8100 M.2 2280 PCIe SSD to replace my old 256 SSD in my laptop. My laptop is a Dell XPS 15 9550. I first... Discussion in 'Windows 10 Network and Sharing' started by Canada1440, May 4, 2020.

  1. New SSD detected as Disk 1 but "No Media" and 0 mb space.


    Hi,


    I have recently purchased a 1TB XPG SX8100 M.2 2280 PCIe SSD to replace my old 256 SSD in my laptop. My laptop is a Dell XPS 15 9550.


    I first want to copy the entirety of my original drive onto the new one and then install the 1TB properly inside the PCIe slot. I have purchased a WavLink USB-C Gen 2 M.2 SSD Enclosure so that I could copy the files onto the 1TB drive. However, plugging in the enclosure using USB-C to USB-C I get no new drives showing up in the disk manager at all.

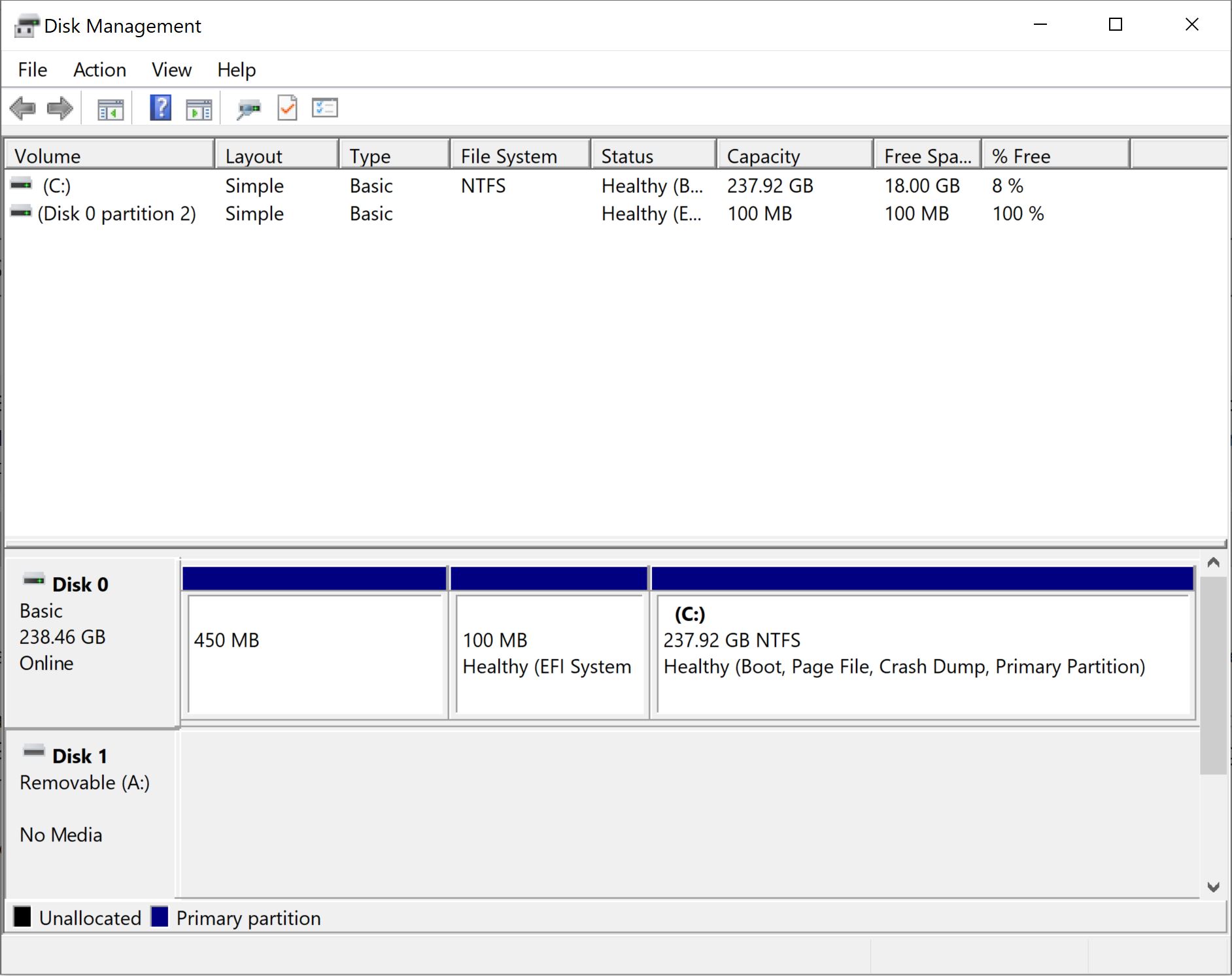

    I also tried using USB-C to USB-A. This is what the disk manager looks like when I use that method. New SSD detected as Disk 1 but "No Media" and 0 mb space. aa1b1675-c7b2-4fcc-a52f-34a7003cabc9?upload=true.jpg


    Most forums online say to right-click on the new disk Disk 1 and to format it, but I am only left with the option of "Change Drive Letter and Paths" which does not seem to be helpful.

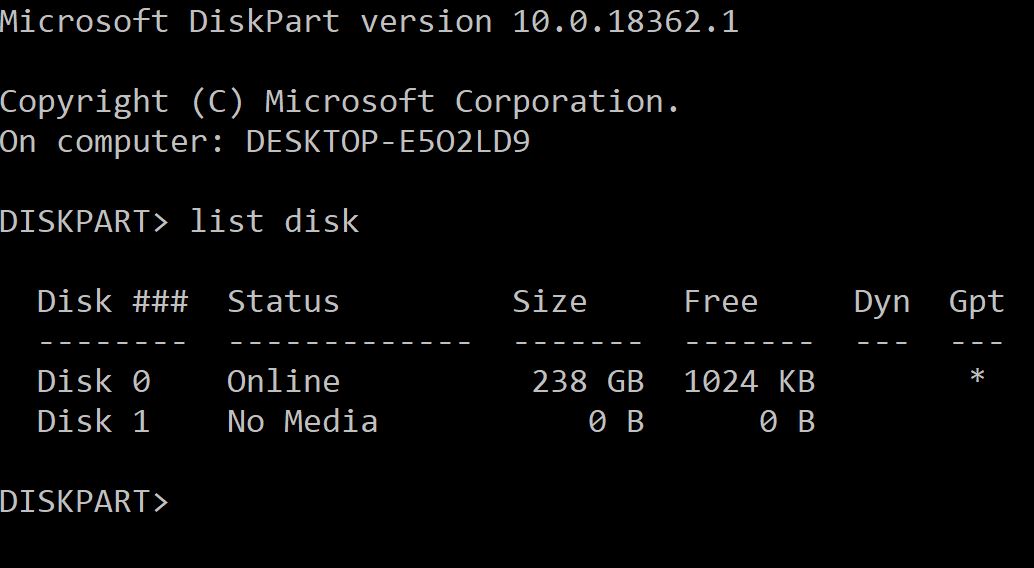

    Using the command prompt, I opened diskpart and this is what happens when I ask for the list of disks:

    New SSD detected as Disk 1 but "No Media" and 0 mb space. 1cb6498d-0c22-4e54-a12e-aa00e5fc30ad?upload=true.jpg

    I tried running "clean" on disk 1 and the following prompt was given "Virtual Disk Service error: There is no media in the device."


    I have checked all usb drivers and made sure there are up to date and I have restarted the computer many times. I have fully run out of ideas...

    Any help would be much appreciated!

    :)

    Canada1440, May 4, 2020
    #1

  2. switch disk numbers: I want Disk 0 to be Disk 1 and Disk 1 to be Disk 0

    Hi, My computer contained a normal HDD hard drive. I recently upgraded to a SSD. The original HDD is Disk 0 and the new SSD is Disk 1. The windows OS is on Disk 1. I want to dual boot my system with Windows and Ubuntu with both OS being on the SSD. Since
    the SSD is Disk 1 the Ubuntu install goes directly to Disk 0 because Disk 0 is first on the list. How can I switch the two Disks so my SSD drive is Disk 0? Thanks.

    Katie Witkin, May 4, 2020
    #2
  3. System Reserved Partition on Disk 1 not Disk 0

    The results were the same as before: Windows is installed in a single 477 GB partition on Disk 0 and the System Reserved is in a 500 MB partition on Drive 1. The rest of Drive 1 is unallocated. This is identical to the configuration I had when I asked the
    question.

    The Media Creation Tool used to created the install ISO DVD is v. 10.0.14393 downloaded on 12/13/2016.

    I followed your instructions:

    • I selected Drive 0 and deleted the existing Windows partition.
    • I clicked New and Apply. Windows then formatted Drive 0 as a single primary partition.
    • The existing System Reserved partition was still on Drive 1.
    • So I deleted the System Reserved partition on Drive 1 and the just created Primary partition on Drive 0
    • I then selected Drive 0 and clicked New and Apply again. Same result a single Primary partition on Drive 0. Drive 1 was left unallocated.
    • Upon completion of the install
      • Windows occupies about 15 GB in the only partition on Drive 0
      • The 500 MB System Reserved partition was placed on Drive 1
      • The rest of Drive 1 is unallocated.

    How can I get the System Reserved partition to be placed as the Partition 1 on Drive 0 with Windows installed in Partition 2?

    Thanks.

    Bill

    B_Phillips, May 4, 2020
    #3
  4. DaveM121 Win User

    New SSD detected as Disk 1 but "No Media" and 0 mb space.

    switch disk numbers: I want Disk 0 to be Disk 1 and Disk 1 to be Disk 0

    Hi Kati

    When you added the new SSD did you connect that to the SATA port on the motherboard that the original hard drive was connected to, or to another port?

    If you swap round the SATA ports on your Motherboard for those drives and change the boot order in BIOS to boot form SATA port 0 (the SSD), then the SSD should be Disk 0 and the HDD disk 1 . ..

    DaveM121, May 4, 2020
    #4
