Windows 10: Orange screen with vertical white lines on startup

I'm having a problem with a desktop PC running Windows 10. It had been working fine, but a few days ago, it restarted on its own, and is now booting up to an orange screen with vertical white lines.


The desktop is a refurbished Dell Precision T3400. It originally ran Windows 7, but it was updated to Windows 10 during the free update period. My brother got the computer a few years ago. I tried checking the tech support website from the company that refurbished the desktop, but it seems to be down (support.astsys.com) so I thought I'd try my luck here.


I've seen a lot of tips online that this is probably an issue with Bitlocker, however Bitlocker was never set up on this system to the best of my knowledge. (I don't believe I've ever heard the word Bitlocker before I started looking for help with this issue.) The desktop usually needs a password to be entered at startup, but I think that's the typical Windows 10 log-on screen prompt for username and password. Either way, entering the login password does nothing. The screen goes black, then after a while the orange screen comes back up.


I can access the boot menu and setup options. Ran a memory test, and that didn't fix anything, but I did get a message that there is no recovery partition set up on the hard drive.


Any ideas?

:)



Orange screen with white vertical lines win 10

Hi,

This can occur if there was a problem with the hard drive itself, caused by installing another operating system that the computer might have encountered error while doing so. Since it is showing you an orange screen with vertical lines, we suggest contacting
your device's manufacturer directly to have them diagnosed the hard drive that caused the issue.

Let us know if you need anything else. We're here to help.



Orange screen with white vertical lines win 10

Hello im using lenovo ideapad i3 i installed win 10works perfectly then i tried to install win 7 via usb then cd dvd driver is missing and when i turned my pc its showing boot error code oxc000000f then i burned new win 10with usb and its showing orange
screen with vertical lines now i cannot installs any windows repair screen not appearing in new win 10 what should i do

[Moved from: Windows / Windows 10 / Devices & drivers]



Windows 10 Shows Orange Screen with White Vertical Lines on boot

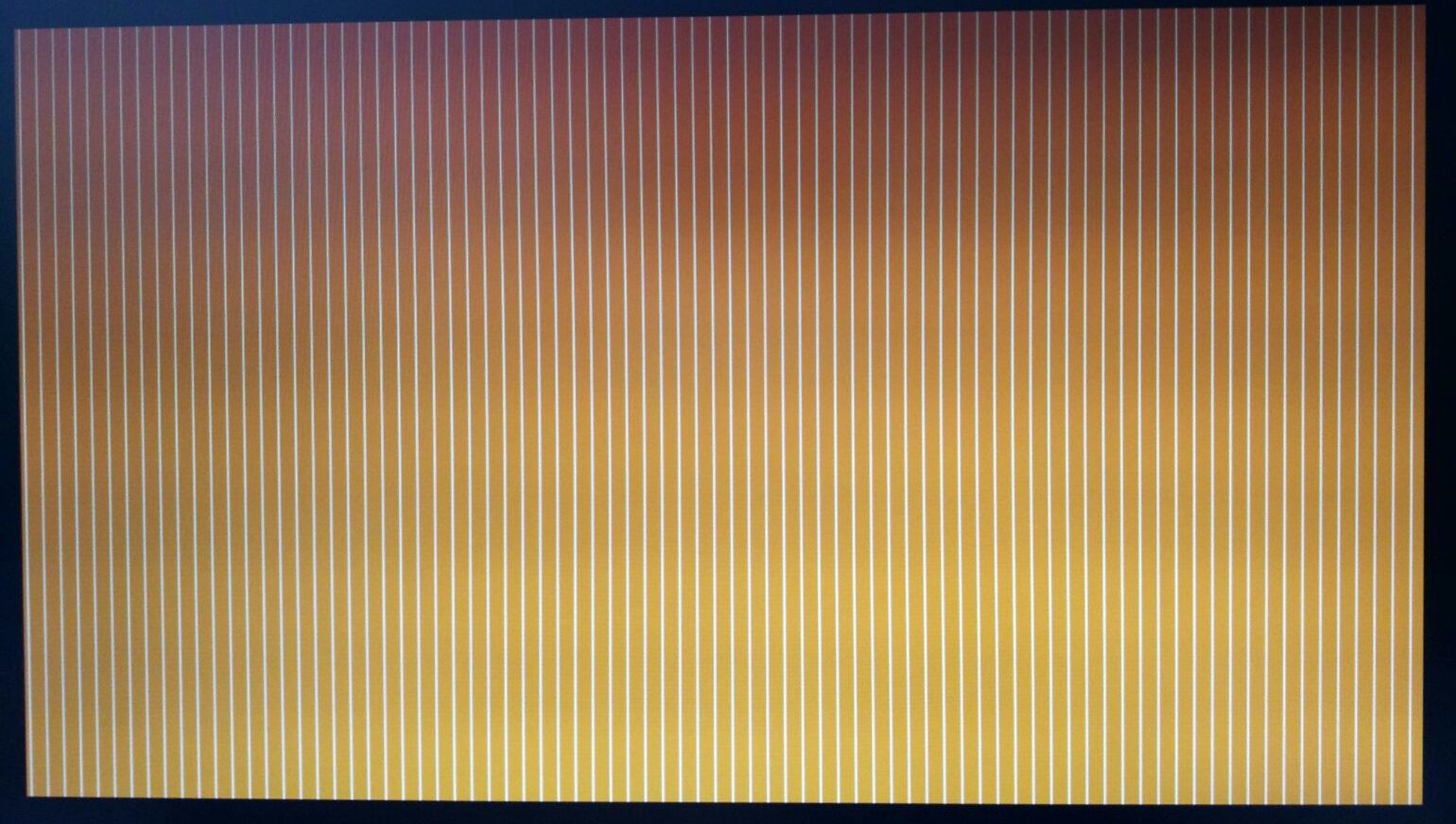

Orange Screen (See picture below) appears on boot after Dell loading screen.

• Dell Inspiron 580 w dual monitors

• Dell Bios is latest version (A07)

• Nvidia GeForce 310 (Driver version 341.95 - latest)

• BitLocker enabled with no TPM

• Hyper-V enabled


Surprisingly, I can key in my BitLocker password at this orange screen and startup Windows... ()\

If I suspend BitLocker this screen does not appear; but after I enabled it, the orange screen comes back again.

I found these messages in Event Log, maybe they will be helpful:

• (Warning) The driver \Driver\WudfRd failed to load for the device ROOT\WPD\0000.

• (Error) The required GPU resources could not be accessed. This server cannot run as a RemoteFX host without a GPU. Verify that the GPU is correctly installed.

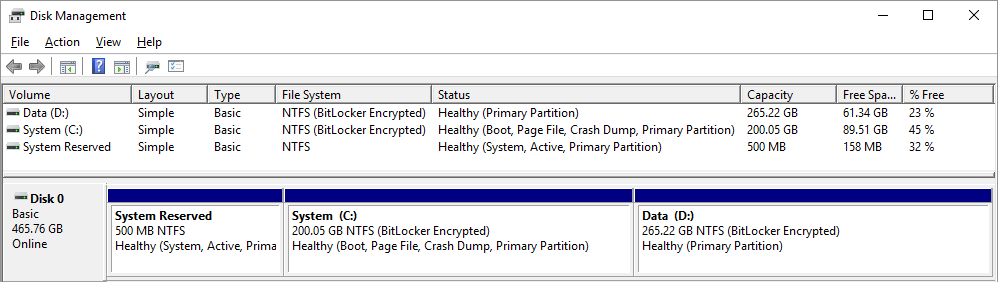

Screenshot of Disk Management
