Windows 10: Partition Hidden: Hardware Problem or Software Problem?

Yesterday, I published a 3 x 6 feet banner in Office Publisher, saved it into PDF and PNG format and shutdown my laptop. After a few minutes, I turned on my laptop to edit these files. When my laptop turned on, I didn't see two partitions (Disk D and Disk E) but Disk C where I have installed my Windows 10 was shown. I opened Disk Management to take a look at the problem. Local Disk C was shown healthy as Primary and System partition but the other two partitions were neither shown healthy or primary partition nor unallocated. I tried to change drive letters and paths but I message dialog was opened:

"The operation failed to complete because Disk Management Console is not up-to-date. Refresh the view by using the refresh task...."

I tried to reinstall windows 10. On first try, I didn't see any one partition of D and E. I restarted the process. Now, Partition C and D were shown but E was not. I reinstalled windows 10 and checked out file explorer and Disk management again to know the problem. Now, I was able to change drive letter and path for Disk D (2nd partition) and Local Disk D was mounted. But the problem persisted with 3rd Partition. I tried to fix it with DISKPART. When I given the command "list disk" and "list volume" only three volumes were shown, first that is active partition needed for windows (500mb), second volume C where my windows is installed and third local disk D but fourth partition (Local Disk E) was not shown. When given command "list partition" all four partitions were shown but fourth partition E was with *.

I tried to fix problem with EaseUS partition master. I tried to change drive letter, I received message, "Failed to mount partition. Process failed (etc)" error code was not shown. I tried to explore using EaseUS, all data was safe and shown with no option of copy or move. But I couldn't explore it using file explorer. I think either partition is lost or not mounted.


Is it a software problem or hardware?

What should I do? What should I do to mount partition and save data?

Please help me to fix it.


Thank you.

G
M
T
Text-to-speech function is limited to 200 characters
Options : History : Feedback : Donate Close

:)



Uninstall problem


Open the Admin Command Prompt:

1. diskpart
2. List disk
3. select disk # where # is the disk that contains hidden partitions
4. list par
5. select partition #
6. delete partition OVERRIDE
7. repeat steps 5 & 6 for the additional hidden partitions.
8. exit

OR:
if you want to clean the whole disk, after step 3 above
Type: clean
Type: exit



Uninstall problem

Thank you for your reply.

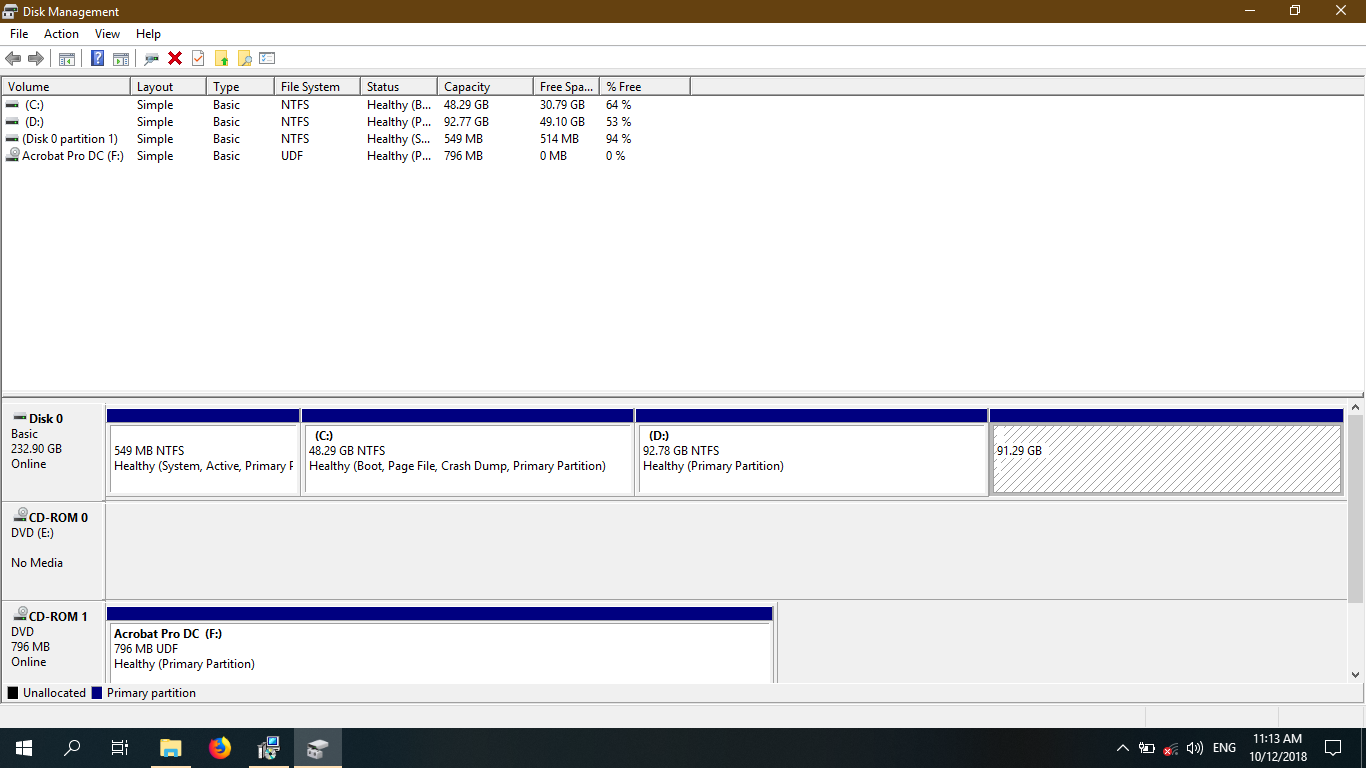

Problem is I don't know which one to delete because they don't show drive letter. see att below.
Both SSD,s are the same configured sizes. W10 is online all the time even though I am in W8.1



Getting a new PC tommorow...

• Set up your hardware
• Insert CD/DVD install
• Format a partition of 30GB as a quick format
• Install the OS
• Create a new partition D: for data, and S: for setupfiles
• Put all your install files into S
• Before installing, run windows update
• Once up to date, reboot
• Install AV
• Update AV
• NOW install any drivers
• And then any software
• Top Utils: ccleaner, defraggler, tclock, utramon, winrar, irfanview, wordweb, malwarebytes, speedfan,
• Now create a partition copy of your C: into a hidden partition. If you evey need to reformat, you just copy the setup from the hidden partition
• You might want Acronis Disk Director to do the previous step. Easy
