Windows 10: PCIe ASPM

What does "pcie ASPM is automatically disabled due to a known incompatibility in hardware" mean? how can i solve this problem?

:)



Platform Power Management CapabilitiesCI Express Active-State Power Management (ASPM) Disabled

Hi,



Thank you for writing to Microsoft Community Forums.



We understand your concern with the battery report. Active State Power Management or ASPM is a power management protocol used to manage PCI Express-based serial link devices as links become less active over time. It is normally used on laptops and
other mobile Internet devices to extend battery life.



In order to get clarity and to assist you accordingly, please reply with the answers to the questions below.

• What is the make and model of the PC?

• Are there any devices connected to the computer?

Please respond to the private message with the required information for further investigation. However, we would suggest you to perform these steps.

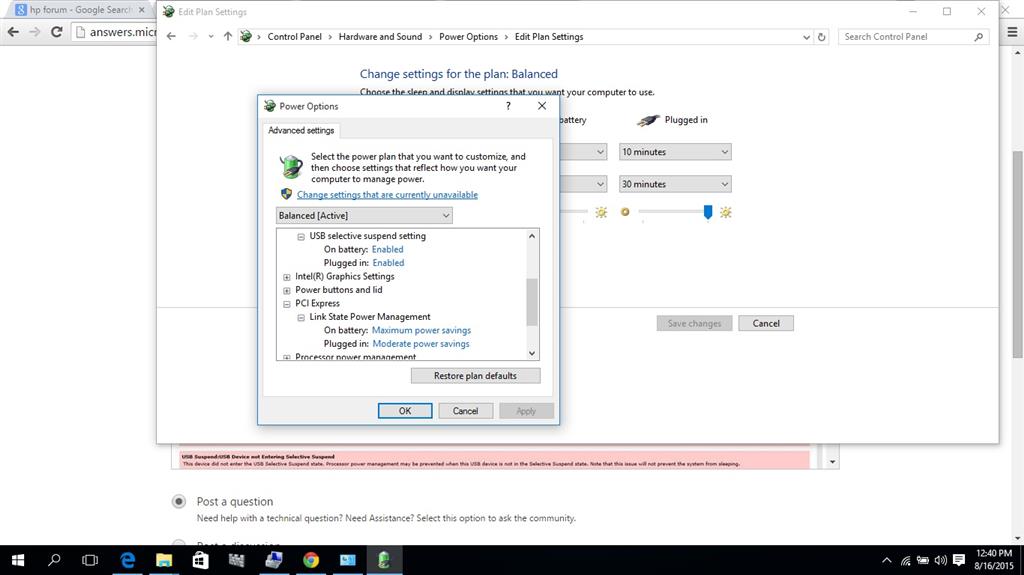

Change the advanced power plan settings.

1. Right click at Windows Start menu icon and select Control Panel.

2. Set the View by to: Small icons.

3. Click on Power Option, then click on Change plan setting.

4. Select Changeadvanced power settings.

5. Scroll down and expand PCI Express and
   Link State Power Management

6. Change the option for both On battery
   and Plugged in to Maximum power savings.

7. Then click Ok.

We await your response.



Aditya Roy

Microsoft Community – Moderator



ASPM incompatibility

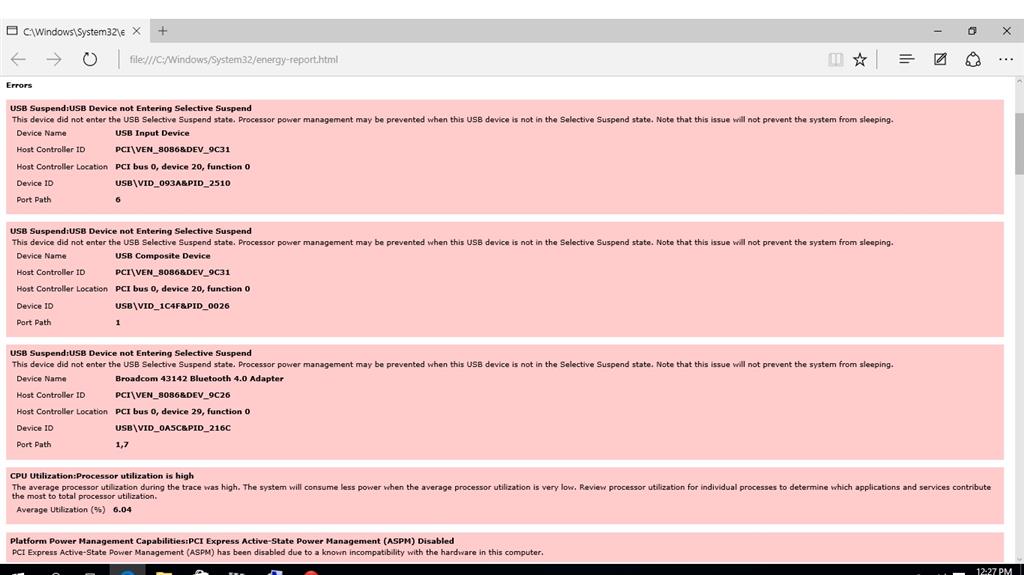

I have shut down issues in windows 10 & tried many things but nothing helped.When I ran "powercfg /energy" via command prompt,the report shows this errors.How to fix this?And
why ASPM is incompatible with the hardware?L: file:///C:/Windows/System32/energy-report.html



(Very) slow boot - Windows 10 on a PCIe Toshiba SSD - Xiaomi Notebook Air

Hi Andi,

The challenge that you are experiencing can occur due to several reasons, such as, incorrect configuration of the BIOS. To better assist you with your concern, kindly answer the following questions below:

• What are the troubleshooting steps that you have tried so far?
• Were you able to configure the BIOS of your motherboard in order for the
  PCIe (Peripheral Component Interconnect Express) SSD to work properly as a primary booting device? Kindly provide us the steps you took in configuring your
  PCIe SSD.

Also, kindly provide us the specs of your Xiaomi Notebook.

We look forward to your response.
