    PCIe x16 slot


    Hi,
    There's a graphic card that I want to purchase, but my system is not very advanced and I'm not sure that the motherboard has the required slot for it.
    The graphic card requires a PCIe x16 slot.

    I attached a photo of the lower section of the motherboard, could someone tell me if one of the available slots is a PCIe x16?
    Thanks.

    PCIe x16 slot 8397-3a0e7b96ebfdf5acba10f06417218bed.png

    Tal_886, Aug 3, 2023
    #1
  2. ANTILOPE
    Antilope Win User

    Using a PCIe x1 card in a PCIe x16 slot


    Here is something I recently found out. I have tired this and it works.

    You can use a PCIe x1 card, or a PCIe x4 card in a PCIe x16 slot. They work fine. So if you think you are short of PCI-e slots, you may not be. A shorter PCIe card works fine in a longer slot.

    On PCIe X1, X4 and X16 slots, the first 18 pins are all wired the same, so as long as the PCI-Express card fits in the PCI-Express slot, it should work.

    This is not the case for the legacy PCI (32-bit, non-express) slots, that are not PCI-Express. Those are not compatable with PCIe cards.


    PCIe x16 slot 36263d1485956594t-using-pcie-x1-card-pcie-x16-slot-pcie-slots.jpg

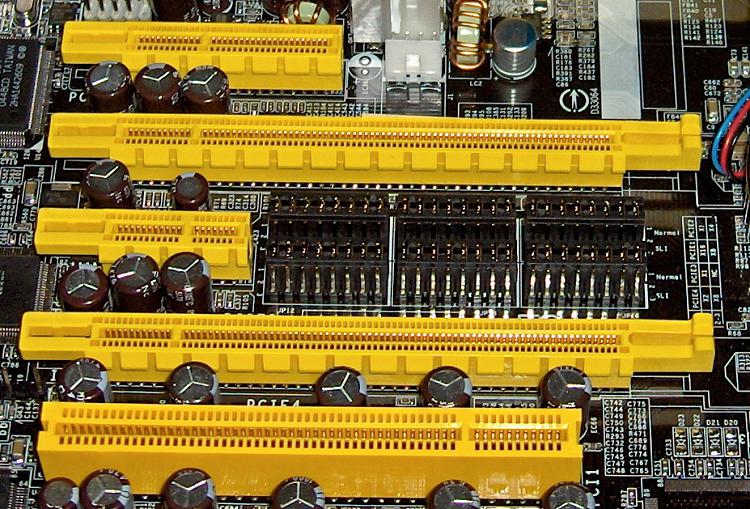

    Picture of assorted PCIe and PCI slots.

    The top four slots, in the picture above, are, from the top to bottom,
    PCIe x4 slot , PCIe x16 slot, PCIe x1 slot and another PCIe x16 slot. A PCIe card that can physically fit in any of these slots will work, even if it doesn't fill the entire slot.

    The bottom, 5th slot, is a PCI legacy (32-bit) slot. PCIe (express) cards will not work in this slot. It only accepts legacy PCI cards.

    Here is the PCI-Express page on Wikipedia showing pinouts, etc.
    PCI Express - Wikipedia, the free encyclopedia

    YouTube Video showing PCIe X1 card in a PCIe X16 slot.


    Here are links to discussions on this subject at Tom's Hardware.

    "Can I install a PCI-e x1 Wireless network card in a PCI-e x16 slot?"

    http://www.tomshardware.com/answers/...-x16-slot.html

    http://www.tomshardware.com/forum/205984-33-card-slot

    http://www.tomshardware.com/answers/...-x16-slot.html

    Antilope, Aug 3, 2023
    #2
  3. CLINT
    Clint Win User
    Using a PCIe x1 card in a PCIe x16 slot


    Thanks. I didn't know that.

    Clint, Aug 3, 2023
    #3
  4. ANTILOPE
    Antilope Win User

    PCIe x16 slot

    Using a PCIe x1 card in a PCIe x16 slot


    Here is something I recently found out. I have tired this and it works.

    You can use a PCIe x1 card, or a PCIe x4 card in a PCIe x16 slot. They work fine. So if you think you are short of PCI-e slots, you may not be. A shorter PCIe card works fine in a longer slot.

    On PCIe X1, X4 and X16 slots, the first 18 pins are all wired the same, so as long as the PCI-Express card fits in the PCI-Express slot, it should work.

    This is not the case for the legacy PCI (32-bit, non-express) slots, that are not PCI-Express. Those are not compatable with PCIe cards.

    Here is the PCI-Express page on Wikipedia showing pinouts, etc.
    PCI Express - Wikipedia, the free encyclopedia

    YouTube Video showing PCIe X1 card in a PCIe X16 slot.


    Here are links to discussions on this subject at Tom's Hardware.

    "Can I install a PCI-e x1 Wireless network card in a PCI-e x16 slot?"

    http://www.tomshardware.com/answers/...-x16-slot.html

    http://www.tomshardware.com/forum/205984-33-card-slot

    http://www.tomshardware.com/answers/...-x16-slot.html

    Antilope, Aug 3, 2023
