Windows 10: Port Low Profile Native RS232 PCI Express Serial Card with 16550UART

Dear Company



I have some questions regarding the latest updates on Windows 10, before we always used a Serial PortStartech.com, Port Low Profile Native RS232 PCI Express Serial Card with 16550UART without any issues with DELL 7080. Now a few days a go, all of the computer we sold start to have some problems with the Serial COM Port. Actually the System recognize the adaptor but not the signal at least if you plug and unplug from the Port. We are a Manufacturer in Medical Devices and adaptors must be used to interface our System.


Please let me know the correct way to install or solution.


Regards


Thank you

:)



PCI Serial port driver.

If your computer came with a serial port built into it (pretty rare these days), go to the support site of your computer's manufacturer, enter the identifying information about your specific model (probably the serial number), and look for the driver for
the serial port.

If you have difficulty doing the above, please provide the make and model of your computer (and its serial number).

If you installed an add-on PCI card for the serial port, what is the make and model of that PCI card?

Otherwise, right-click on that entry in Device Manager and select the "Details" tab.

Select "Hardware Ids" in the drop-down list under "Property"

Copy the first line in the "Values" box and paste into a Google search.

If you get no hits when searching for the entire first line, search only for the VEN/DEV information.

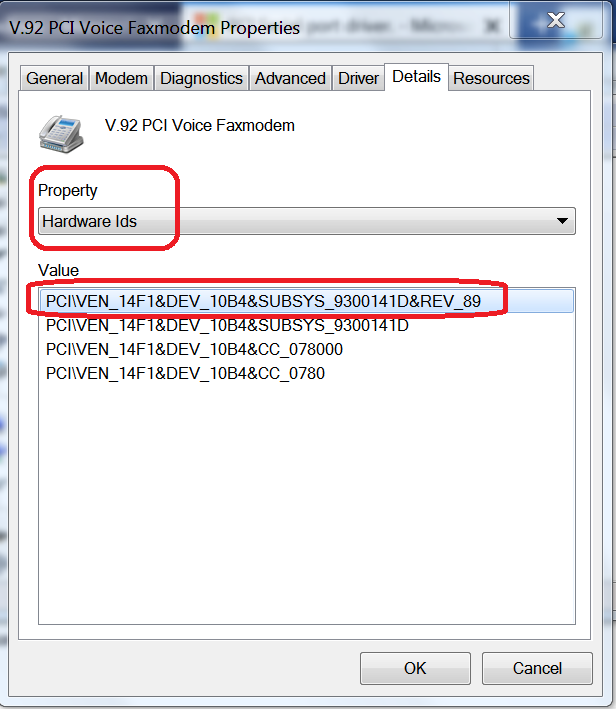

Using the screenshot below as an example:

Search for PCI\VEN_14F1&DEV_10B4&SUBSYS_9300141D&REV_89

If no hits, search for PCI\VEN_14F1&DEV_10B4

Alternatively, you can use one of these PCI VEN/DEV databases:

PCI Lookup

http://pci-ids.ucw.cz/

Find unknown devices using a vendor and device ID. | Device Hunt

Once you know the manufacturer and model of the serial port, you should be able to find the driver for it. If at all possible, avoid third-party driver download sites. Look for the website of the device manufacturer.



4K pci graphics card not express

Unexpected. You really need the PCI-E slot for that SSD. You could use an X4 slot if you had one, but you don't.

The only PCI-E 1X card that I found at Newegg was the same as in the Amazon link. Its HDMI port is 1.4a, so it can do 4k, but at 30 Hz max. I don't know whether the (dual link) DVI port supports that; it can do 2560 X 1600 at 60 Hz.

I don't think you're going to get a tolerable 4k graphics card that doesn't need a PCI-E X16 slot. Low profile doesn't help, either. You're really boxed in with that SFF PC.



PCI-Express To SATA III 6Gbps Cards

Mine is definitely Marvell.

The two cards are:

First Card:
Skymaster PCI-Express 4 Port SATA III 6Gbps Card EST11B

Second Card:
Skymaster PCI-Express to SATA III Card 2 Port/6Gbps Card EST04A
