Windows 10: Portrait lcd panel resolution not detected by driver

Hello,

On my new laptop Ryzen 5 + Vega 8 Windows 10 won't let me select the correct resolution for mycheap 2k LCD panel.

The laptop supports up to 4k@30 over that HDMI port so I suppose 2k@50 should not pose a problem.
The panel is in portrait mode 1440x2560 yes, vertical with a refresh rate of 49.999Hz.

It or rather the driver board behind it does not support downscaling or anything fancy, only it's native resolution.
It has worked on my main PC /w Nvidia GPU before on Windows 10 and still works on that PC with Linux don't have windows 10 on it anymore.


I've tried reinstalling the GPU drivers and display drivers to no avail.

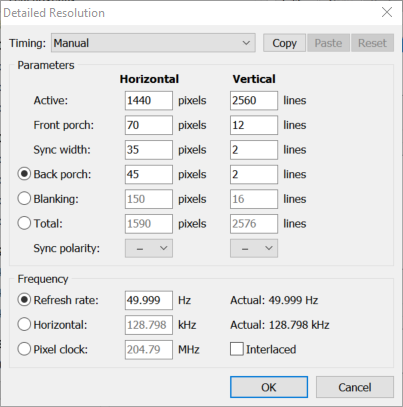

I tried the CustomResolutionUtility and it automatically detects the proper resolution just fine:



Unfortunately messing around with that tool didn't actually fix anything.

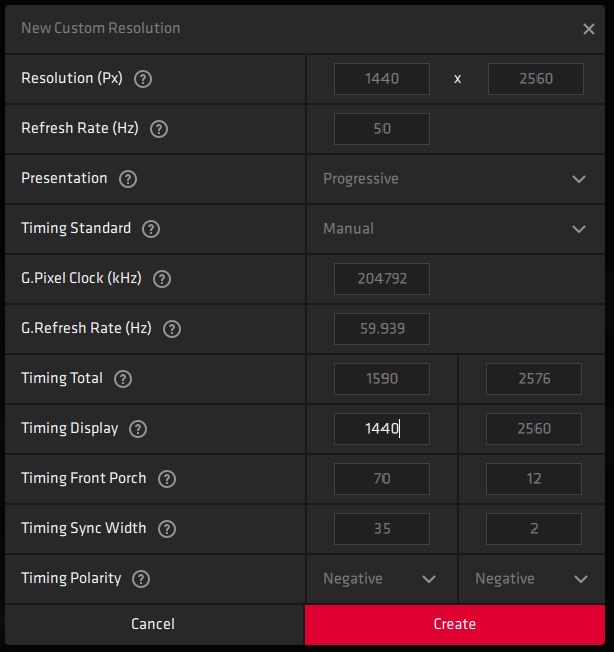

So I tried setting that as a custom resolution in the radeon software settings by copying the parameters:


leading into an error "Custom resolutions settings are not compatible with this display" and yes I picked the correct display.

Note: Presentation let's me chose between Progressive and Interlaced so it corresponds to the interlaced toggle in CRU. Also tried Refresh rate of 49.999 with no difference

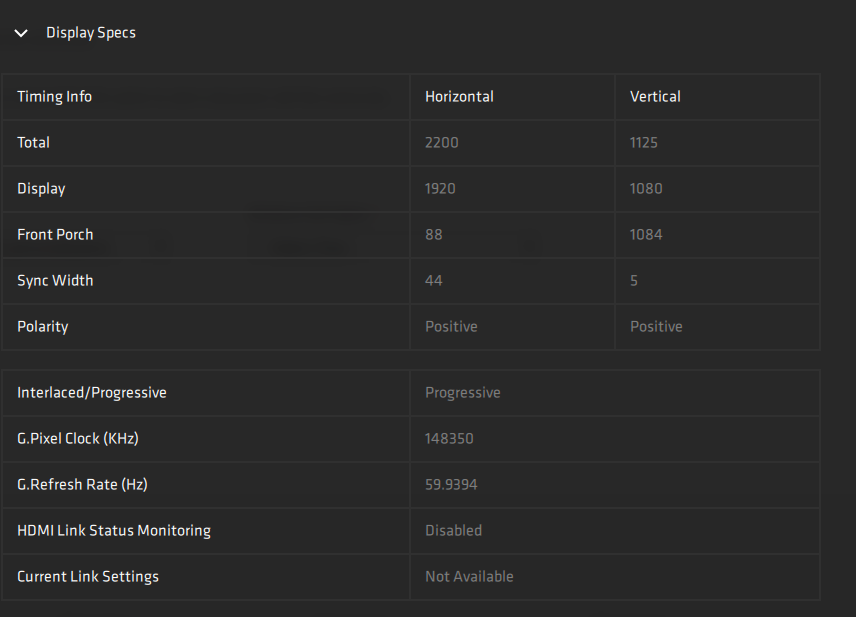

This is what Radeon software thinks the display supports similarily to windows, which also lets me select 1920x1080 only:




What's up with this disparity in specs and how can I fix it? Did I enter the custom settings wrong? Again, the LCD is fine albeit probably not properly supported. It works in Linux out of the box, without even a hitch. I might try live-booting linux on the laptop and try it on the laptop's hardware, will update when I do.

Thanks for any insights into this topic!

:)



Increasing mirrored screen resolution

Hi Sam,

To further assist you, we would like to know what is the make and model of your HD TV? We also suggest that you check if there's an option to change the resolution through your TV.

You can also follow these steps on how to adjust screen resolution through Control Panel:

• Open Control Panel, under Appearance and Personalization, click
  Adjust screen resolution.
• Click the name of your HD TV, then click the drop down for Resolution.


Let us know if you need further assistance.

Thank you.



Screen Resolution too big

Hello,

Firstly, try to install all the available Windows Updates and check if it fixes the issue.

I suggest you to change the screen resolution settings and check if it fixes the issue. Follow the steps below:

• Press Windows key and type Change Screen Resolution and click on the option listed.
• Under resolution try changing the resolution settings.

Also try to install the latest drivers from the manufacturer website and check.

Hope this will fix the issue, if not let us know with the updated status and we will be happy to assist you further.



Monitor is detected but display resolution is not correct


One of two possibilities:

1. Driver is still not correct, as you don't have the listed resolution to go to recommended for that monitor. If it is using a driver win 10 installed and not the manufacturer, then you need to try the manufacturer driver, list the display driver from device manager and we can go from there.

2. Card in PC (Is it a card, or integrated mainboard graphics?) doesn't support that resolution, hence driver not listing it, etc.

Other possibility - what does the system show for the monitor listed in device manager?
