Windows 10: Preview of GUI app support available for Windows Subsystem for Linux

A year ago at BUILD 2020 we introduced our goal to bring Linux GUI applications to the Windows Subsystem for Linux (WSL) to run Linux GUI applications. We are proud to announce the first preview of this highly anticipated and open source feature! We’ve given this feature the nickname: “WSLg”. Please check out the video below or keep reading to see what you can use this feature for, how it works, and how to install it.




What can I use GUI application support for?

WSL lets you run a Linux environment, and up until this point has focused on enabling command line tools utilities and applications. GUI app support now lets you use your favorite Linux GUI applications as well. WSL is used in a wide variety of applications, workloads, and use cases, so ultimately, it’s up to you on what you’d like to use GUI app support for. Below, we’ve highlighted some key scenarios to help you fall in love with running applications in a Linux environment.

Use your IDE of choice to develop Linux projects

Visual Studio Code has an amazing experience using VS Code Remote to create a way for you to have a full-fledged Linux IDE directly on your Windows machine, keep extensions and settings across both Windows and different WSL distros (you can view our getting started with VS Code tutorial here. WSLg will let you run other IDEs such as gedit, JetBrains based editors, gvim, etc., to test, build, and debug your Linux applications in a performant manner.

Here’s an example of running gedit and gvim to edit Linux files directly in WSL.



Run Linux only applications, or Linux specific use cases like testing

You can use this feature to run any GUI application that might only exist in Linux, or to run your own applications or testing in a Linux environment. This could be incredibly useful for developers who want to test their cross-platform app, as they can now run it directly on Windows 10, and then easily inside of Linux without ever needing to change machines or manage a virtual machine.

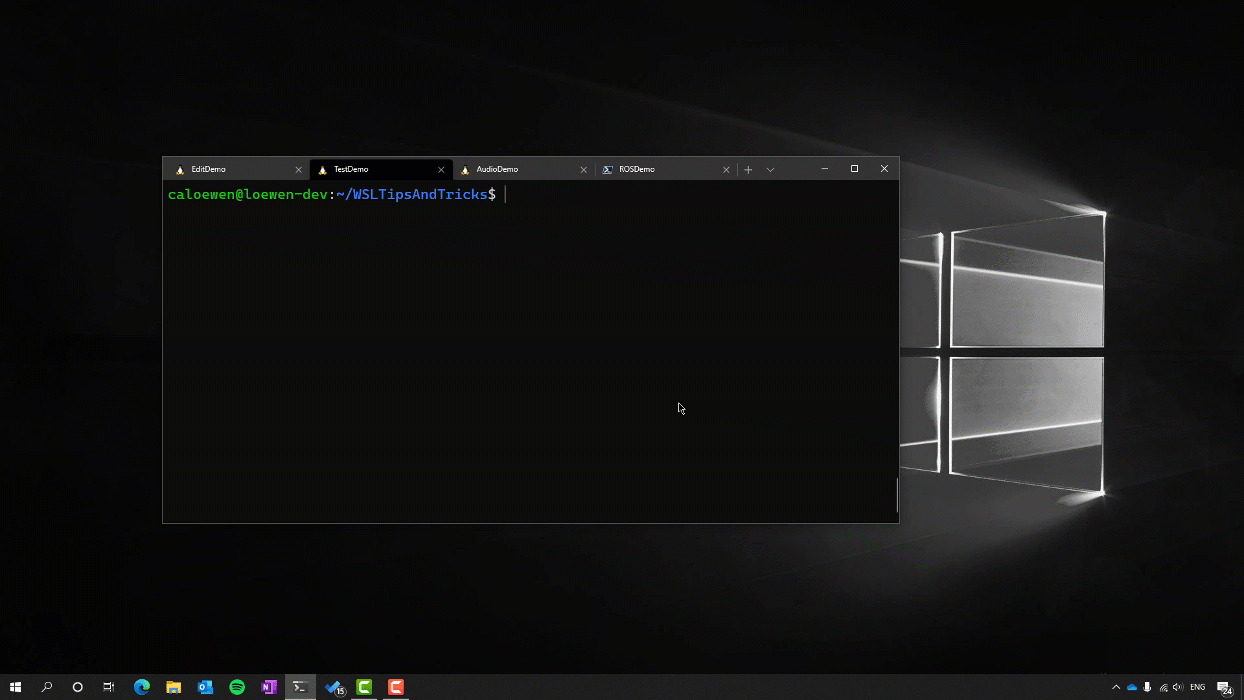

Let’s look at an example of running TestCafe Studio in WSL to do some web testing from a Microsoft Edge browser running in Linux.



Build, test and use Linux applications that use audio or the microphone with built in audio support

Linux GUI applications on WSL will also include out of the box audio and microphone support. This exciting aspect will let your apps play audio cues and utilize the microphone, perfect for building, testing, or using movie players, telecommunication apps, and more.

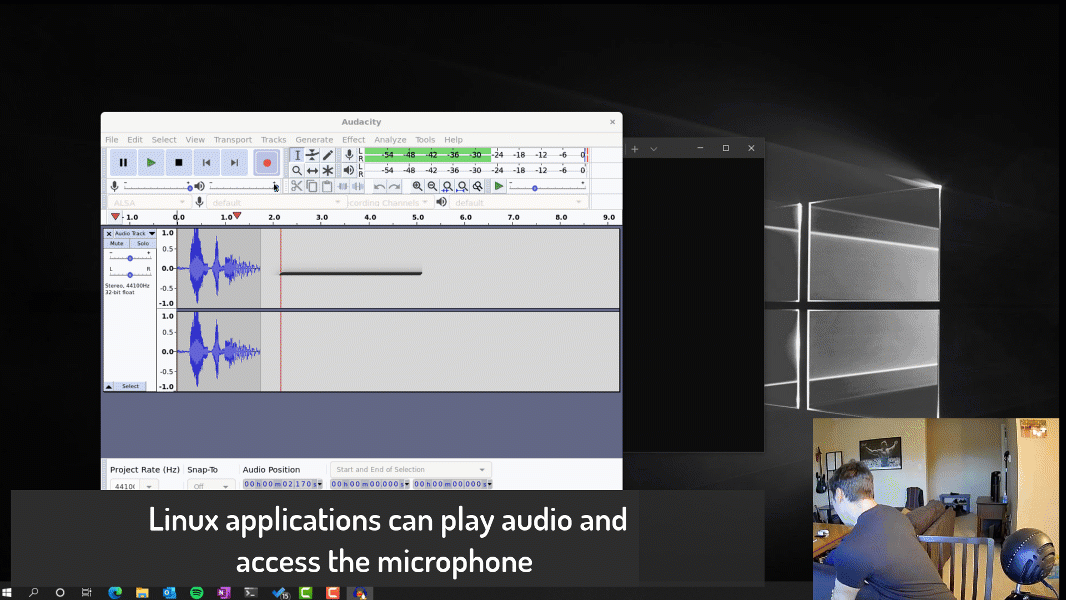

Here’s an example of using Audacity running on Linux to record some audio and play it back.



Bonus: Leverage WSL’s GPU access to run Linux applications with 3D acceleration

As part of this feature, we have also enabled support for GPU accelerated 3D graphics! Thanks to work that was completed in Mesa 21.0, any applications that are doing complex 3D rendering can leverage OpenGL to accelerate these using the GPU on your Windows 10 machine. This will make some of your more complex applications run smoothly, such as running Gazebo, a robotics simulation tool. This experience will soon be included by default with different WSL distributions, however you can gain access to it right away by following the instructions in this blog post to get the right graphics driver and to ensure your distro has a compatible Mesa version..

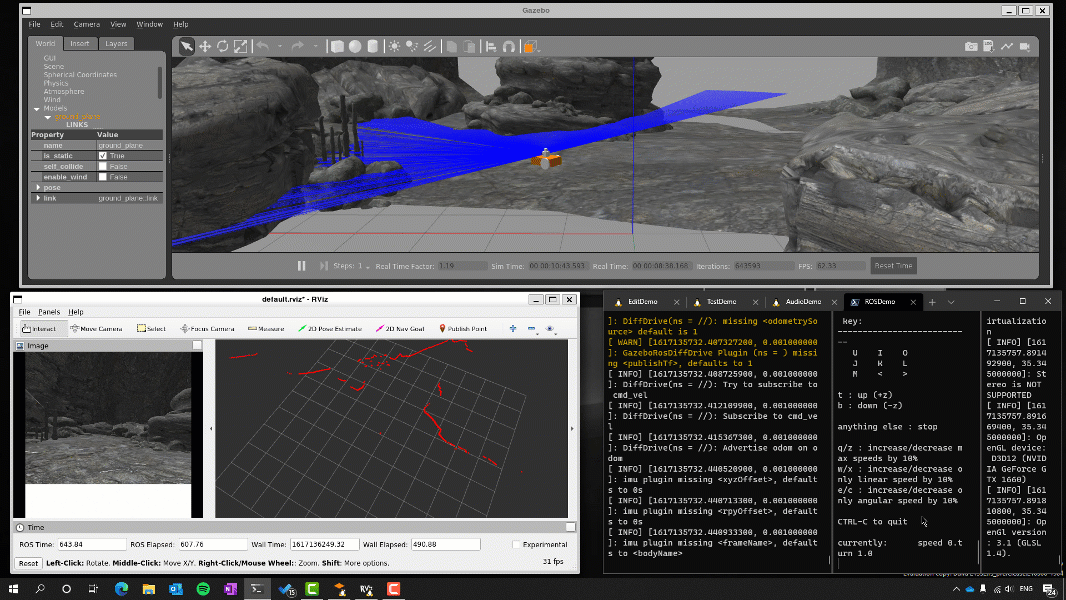

Below you can see the Gazebo application simulating a robot exploring a virtual cave, as well as the Rviz application visualizing the camera feed of the robot and its laser field sensor’s output. Thanks to GPU accelerated 3D graphics we can run this demo at 60 FPS!



How does this feature work?

From the demos above, you might have noticed we didn’t need to start an X server manually. That’s because with this feature we are automatically starting a companion system distro, containing a Wayland, X server, pulse audio server, and everything else needed to make Linux GUI apps communicate with Windows. After you’re finished using GUI applications and terminate your WSL distribution the system distro will automatically end its session as well.

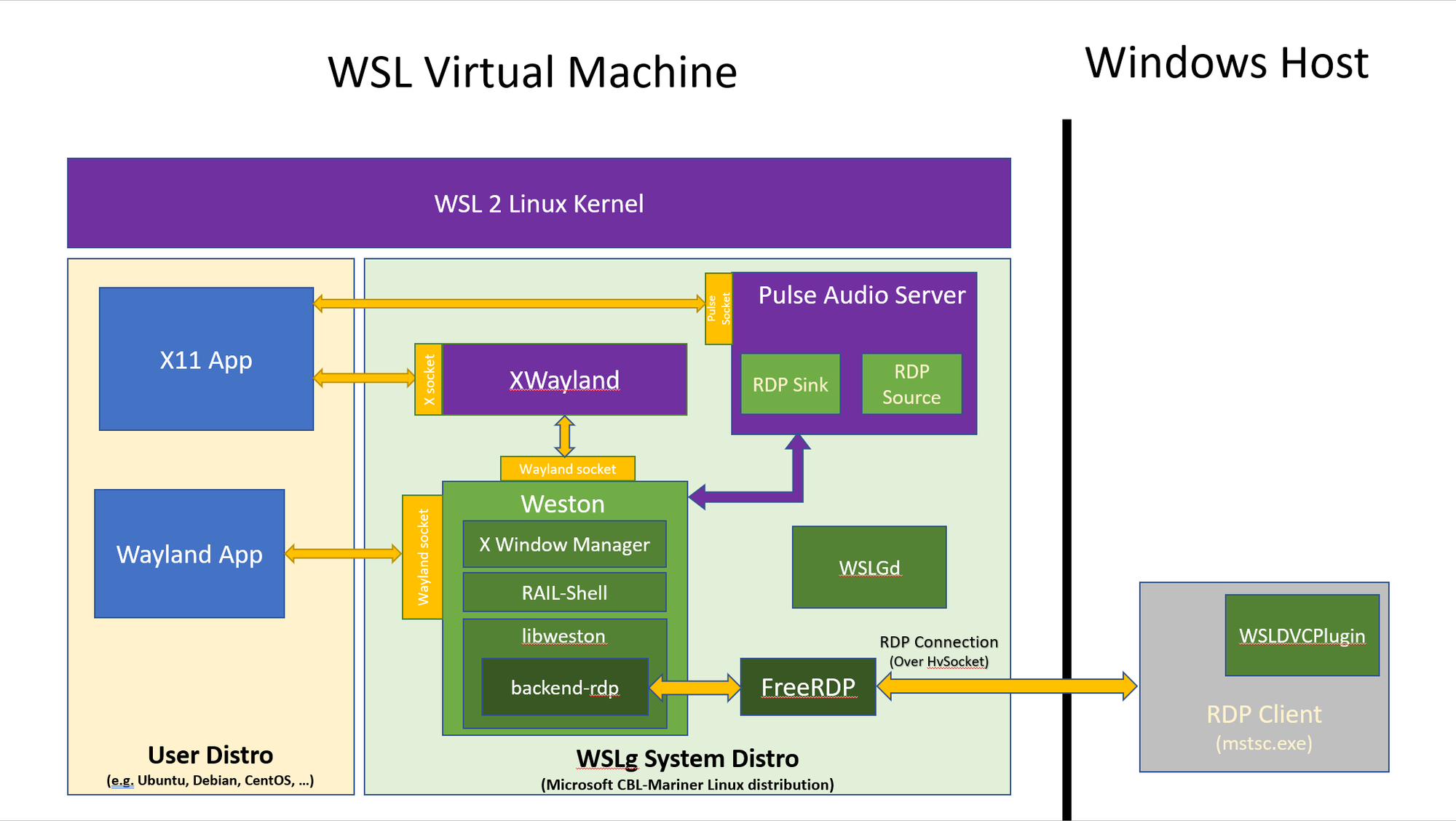

Like with the rest of WSL plumbing, our intention is for this component to be fully managed and seamless for users. Our intentions are for this system distro to be as invisible to the user as possible, and this is why you won’t see this system distro when you run wsl -l -v. Lastly, we’re excited to present that we are using Microsoft’s CBL-Mariner distribution for this system distro! CBL-Mariner is an internal Linux distribution used traditionally for Microsoft’s cloud infrastructure and edge products and services, and we are now extending its use to support GUI apps inside of WSL. You can view the diagram below to see an overall summary of the architecture of this feature.





For a full in depth view of what we did to make this feature possible and the deep technical details, please view this blog post written by the developers who made this feature possible.

Getting started with this feature

We are starting the rollout of this feature as an initial preview before we fully roll it into the WSL experience. To get started using Linux GUI app support, you’ll need to make sure you’re on Windows 10 Insiders preview build 21364 or higher. If you already have WSL installed, all you need to do is run wsl --update and you’ll be set to use GUI apps. If you don’t have WSL enabled, running wsl --install will install WSLg automatically as part of the initial WSL setup.

You can find the full install instructions at the GitHub repositories’ README: GitHub - microsoft/wslg: Enabling the Windows Subsystem for Linux to include support for Wayland and X server related scenarios . We also highly recommend that you have GPU compute support enabled in WSL for the best performance, please see this section of the install instructions to see how you can ensure that feature is enabled.

Feedback

Please file any technical issues, or feature requests for GUI application support on the WSLg Github repository. For general WSL issues, please file them at the WSL repository. You can also follow up with me on Twitter @craigaloewen and all WSL team members that are on Twitter using this list. Please stay tuned to this blog for more exciting WSL announcements, and we can’t wait to hear what you think about this new feature.

Craig Loewen
Program Manager, Windows Developer Platform


Source: https://devblogs.microsoft.com/comma...m-for-linux-2/

:)



Preview of GUI app support available for Windows Subsystem for Linux

I am getting these apt errors on a fresh install of WSL.



Preview of GUI app support available for Windows Subsystem for Linux

I managed to fix WSL and its currently running Kate the editor.





How are you getting on with yours @z3r010?



Preview of GUI app support available for Windows Subsystem for Linux

Hi there
Great stuff !!!

I did actually manage to get some "Windowed" apps working when WSL first appeared -- I couldn't though get a full desktop GUI.

Here's three old screenshots from a while back - was a bit tricky to get even this working as you needed to install some type of "X-Server" on Windows.













In the 3rd screenshot you can see the X-server for windows that I needed at the time -- this probably won't work any more as it uses x-org rather than the new (X)WAYLAND x-server. The X-server on Windows I was using at the time was XLAUNCH. The screenshop show the GNOME desktop app (from UBUNTU) - the system configuration panel.

This new system looks as if it will be a winner !!! (If it works). I don't think you need the XLAUNCH app either to get some GUI apps to work.

I'll have a test with this -- I'll do it first as a VM -- I can run "Nested VM's" So I'll have a Windows VM with WSL and have a go - initially I want this as a POC (Proof of Concept) test to see if it works so I'm not too bothered at this stage about performance so long as it's not rediculously bonkersly slow.

If this works it looks like the Windows kernel is going in the Linux KVM way using a "Kernel based Virtual Machine" and could be quite efficient - especially if it doesn't need an emulator like QEMU (although QEMU isn't too horrible).

Any people who have got this working - let's see some screenshots.

@swarfega - I'll mess around with this - would be great to have a whole desktop such as KDE working -=- GRSYNC would be a great app IMO to also have on this as it's a great archiving / data backup tool as opposed to disk cloning and imaging and you can connect devices to the WSL.

@mods - suggestion -- any chance to move this off the News section into say subsection of apps or equivalent -- I suspect quite a few will be messing around with this and there might be a few decent suggestions and tweaks -- it would also be nice to award rep points to good suggestions and ideas that work.

Cheers
jimbo
