Windows 10: Restore Using a System Image that I've Already Created

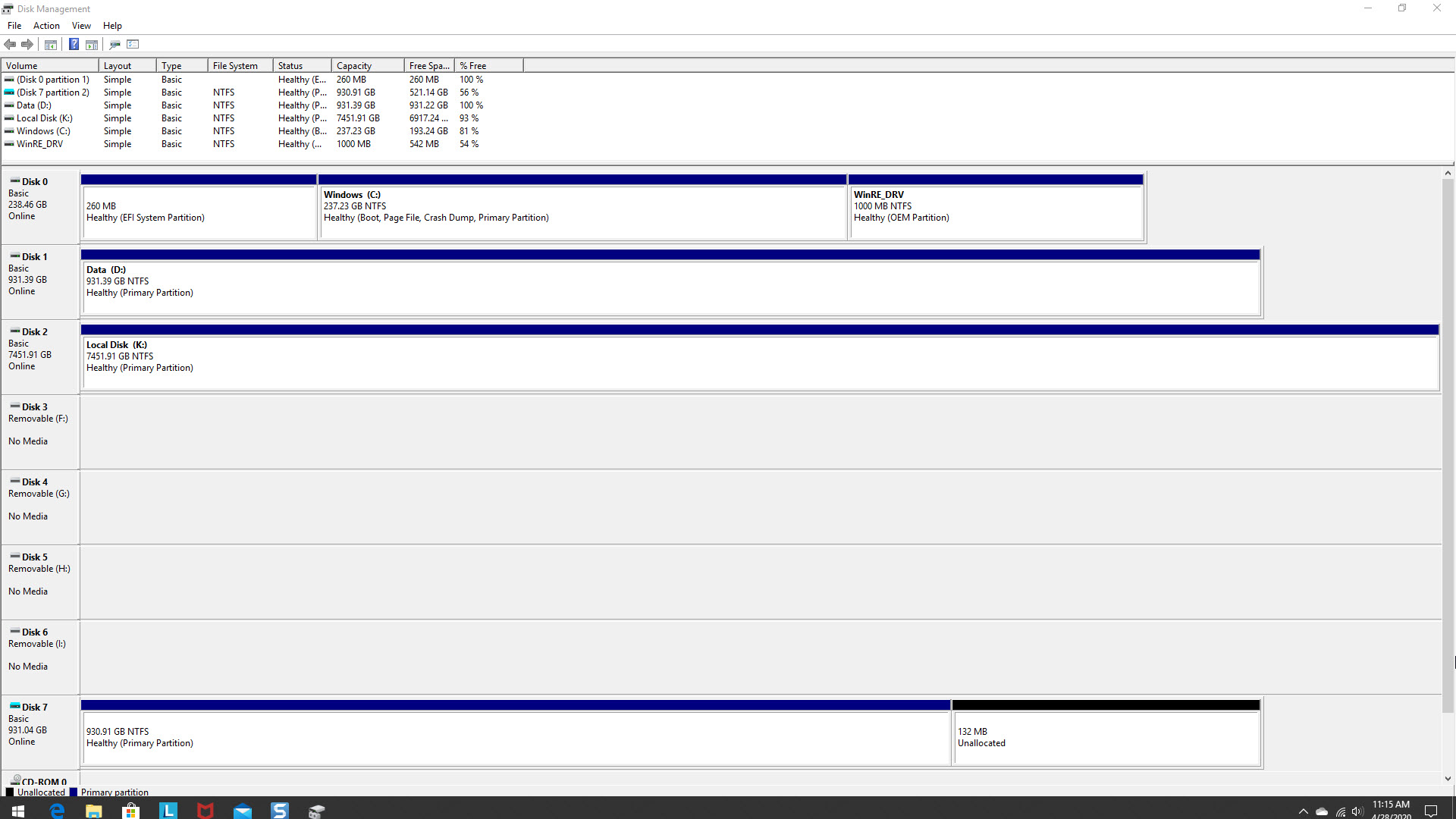

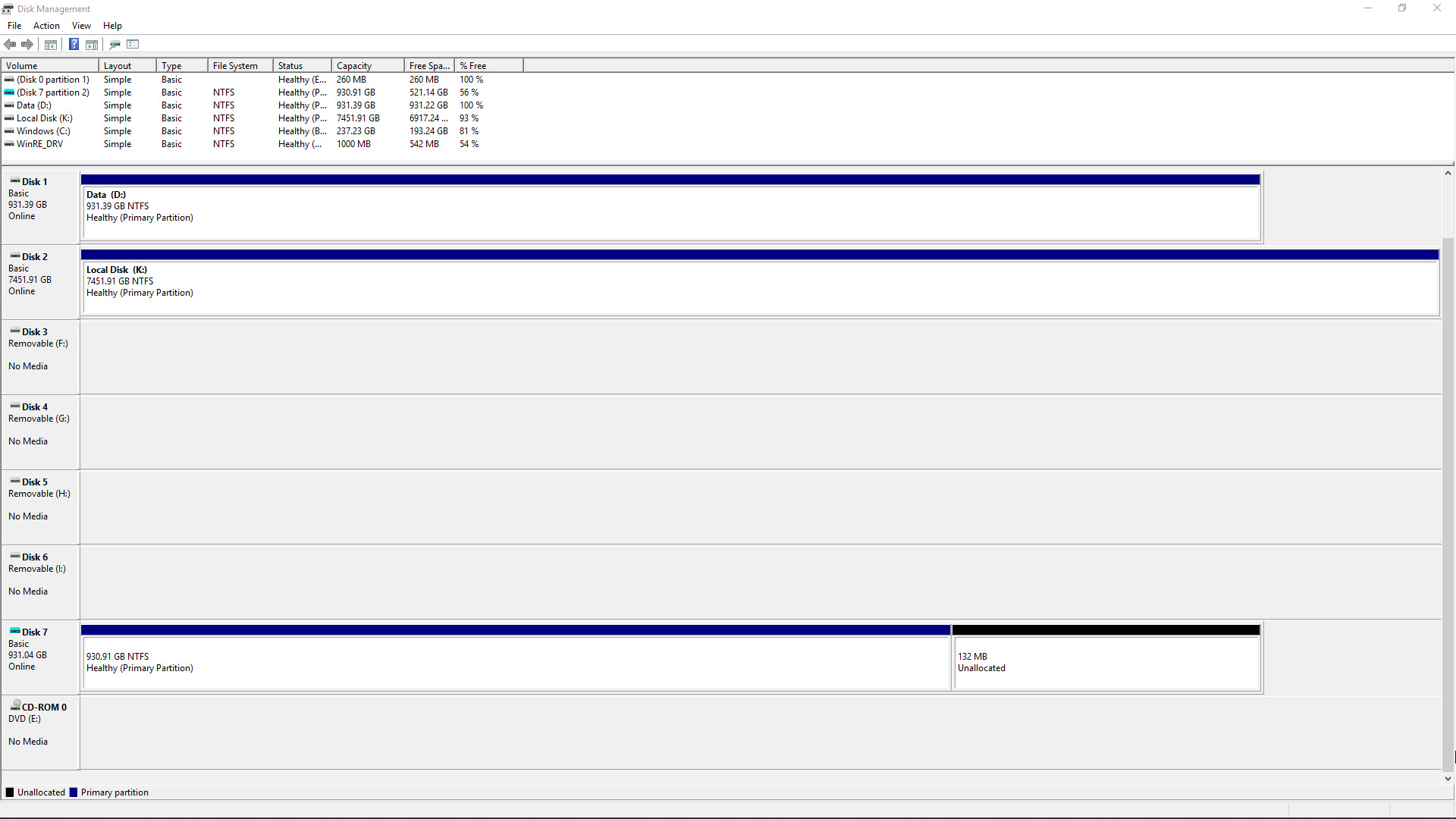

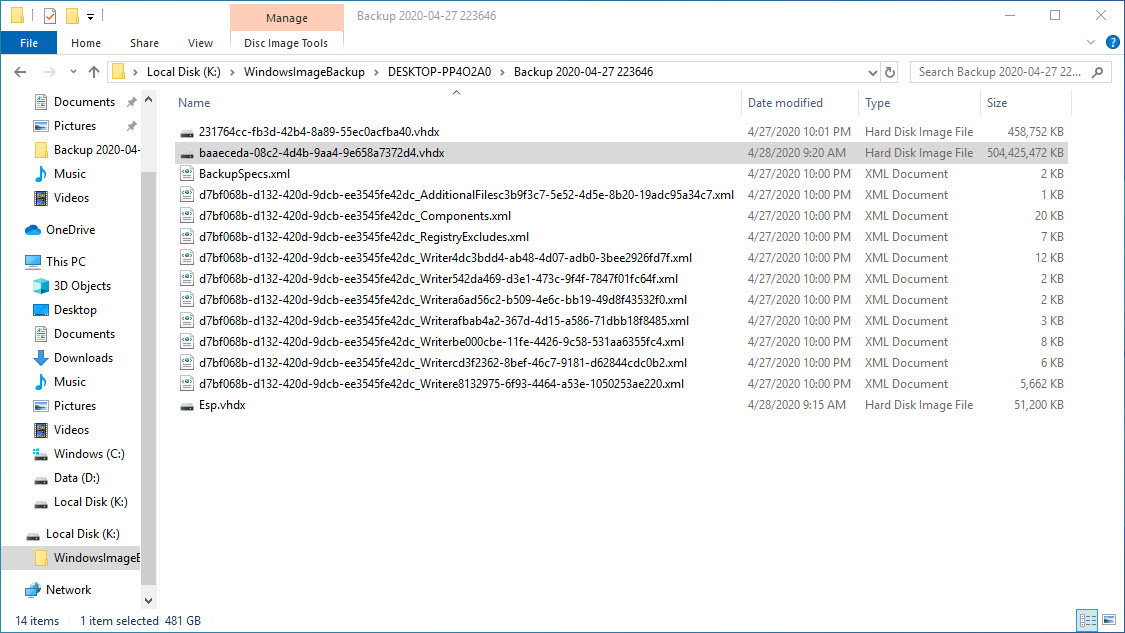

How can I determine where the vhdx is in Disk Management? I attached it to Disk Management, but I didn't pay attention to what was there before, so I don't want to delete anything if it was already there before I attached the vhdx

:)



restore system image from command prompt, drive d: not seen by system restore

Hi,



Thank you for writing to Microsoft Community Forums.



To be able to help you with the appropriate troubleshooting steps, please reply with the following details:

• Are you trying to restore the system image or create a system image?

• Are you able to see the external drive in File Explorer?

• Could you please briefly explain the procedure that you are following to initiate a system image restore?


In the meantime, I suggest you to refer the articles on
How to: Create a system image in Windows 10 and

How to restore a Windows 10 system image to an existing or larger storage device created by Andre Da Costa.



Please reply with the detailed information, to help you in a better way.



Regards,

Nikhar Khare

Microsoft Community - Moderator



System Image Restoration in Windows 10

Hi,

Thank you for posting the query on Microsoft Community.

I appreciate your interest on Windows 10.

Before we proceed, I would like you to answer the following questions:

• Could you please tell me are you facing any issue with your Windows 10 computer?
• Could you please explain in detail “Windows 10 restoration of system Image affects all the existing partitions instead of only C:\”?

When we create system image, by default, a system image includes the drives required for Windows to run. It also includes Windows and your system settings, programs, and files. You can use a system image to restore the contents of your computer
if your hard disk or computer ever stops working.

In Windows 10 We have an option to select other drives while creating System Image backup. If you have selected other drives too when creating System Image backup it will affect those drives too.

I suggest you to create a system image and check.

To create system image on Windows 10 follow the below methods.

•
  Type File history in the search area on the taskbar and select File history.

•
  Click on System image backup on the left bottom corner of the Window file history Window.

•
  Click on Create System Image on the left panel of the System Image backup windows.

•
  Select the driver, where you want to Create system Image.

•
  Follow on screen instruction.


Please get back to us with the updated information. WE will be happy to assist you further.



How to delete inactive System Image Restore Points in System Restore

AndreTen - I have tried Disk Cleanup but unfortunately the problem entries did not go away.
I feel certain Bree (VIP Member) has identified the correct cause of this problem as above and his adviced solution should also do the trick.

- - - Updated - - -

Bree - Thank you. I must admit that I did use 'Create system image' a few times in 'Backup & Restore (Windows 7)' instead of 'Backup now' and these ghost entries relate to those actions. You have rightly identified the cause of this issue.
It is crazy that Microsoft has put two different backup options causing the issue of these ghost restore points.

Regarding your advice on how to rectify the issue - I must add that I am not very computer savvy and feel reluctant to use Diskpart utility etc to delete 'WindowsImageBackup\SPPMetadataCache' and 'WindowsImageBackup\Catalog folders' from within 'System Volume Information' folder with command Prompt as I fear damaging the pc by making any mistakes, as I have never done this before.

Please advice if there may be another simpler method to delete the above folders OR if you are able and have time to post a step by step instructions (with pictures if possible) on how to follow your advice. Much appreciated.
