Windows 10: some of the folders in the navigation pane of file explorer not show an icon

some of the folders in the navigation pane of file explorer not show an icon

:)



File Explorer Navigation Pane Default Icons Have Changed

Hello! First time posting here.

I asked this question about a week ago on the HP community, and although a suggestion was offered, the problem persists.

I cannot give an exact date, but at some point my File Explorer Navigation Pane Icons changed from the default:





to this:





Notice they are folder icons with the unique icon picture 'overlay'

Brief history:

• I have had my HP Spectre x360 15 (4K touch display) for about 6 weeks.
• Initial file transfer was done using Windows (7) Easy Transfer (migwiz) which I have used on other machines without incident. Using the advanced selection; no settings were transferred, just Documents, Pictures, Music, Video.
• I do not use any outside themes; just experimented a few times using the built in HP themes.
• I have gone so far as to try overriding the current icons using the registry modifications mentioned in this Ten Forums post: Change Icons of Folders in This PC in Windows 10
• When I tried the suggestions in Option One, the only change which occurred was that the unique icon picture was removed and only the plain folder icon remained. Yet the registry entries outlined in Option 2 “Change Icons of Folders in This PC for All Users” all appear to be correct.
• There are no “exotic” programs on the computer – just Office 365, Adobe Photoshop/Premiere Elements, Bootstrap Studio, Inkscape, etc.

Purchased at the same time was an HP Envy x360 laptop which is almost identical in specifications and installed programs except it has a regular Full HD touch screen (1920x1080). The Navigation Pane icons there are the expected 'default' as shown in the second screenshot.

Any ideas what may have caused this and any suggestions how to get the default icons back?



Hide or Show User Profile's Personal Folders in Navigation Pane

Thank you in advance to everyone for your help and time. Hopefully this write-up is succinct.
I believe there has to be additional registry modifications to solve this issue.


Problem:
In the Navigation Pane, specifically regarding the Current User folder tree, a Personal Folder (i.e. 3D Objects, Contacts, Desktop, etc... ) continues to show even after making active the Hidden property for that Personal Folder.

Expected Results:

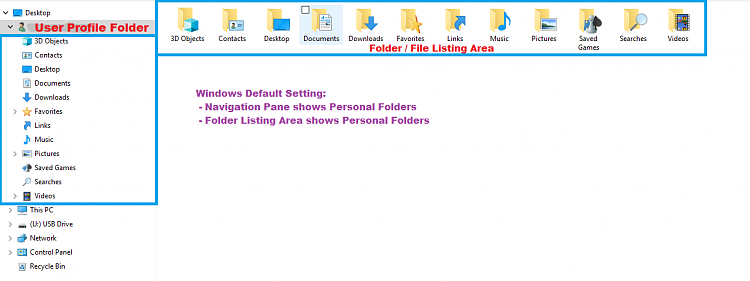

Any Personal Folder that is marked "Hidden" in the File/Folder Listings Area should also be hidden in the Navigation Pane specifically within the Current User folder tree.

Steps to recreate the issue: (the following steps assume that the option is deactivated to see hidden folders.)

1. Open File Explorer
2. Within Navigation Pane, Right-click over any blank area
3. Select menu-option "Show All Folders"
4. Select and Expand the Current User folder tree which is listed as a child object to the "Desktop" folder
5. Within the File/Folder Listings Area, Right-click on a Personal Folder
6. Select menu-option "Properties"

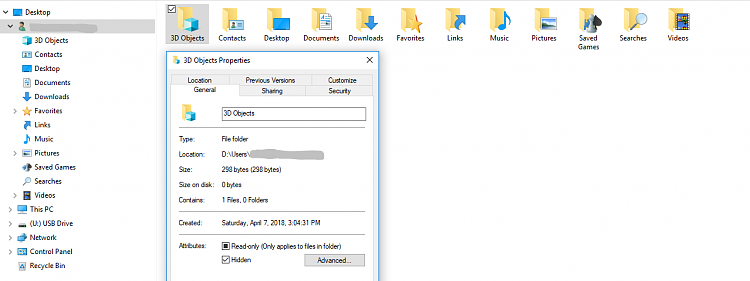

7. Within the new Dialogue window, Select the "General" tab, Select to Activate the Attribute "Hidden", Select the "OK" button
8. Close File Explorer and then Open File Explorer
9. Select the Current User folder in the Navigation Pane

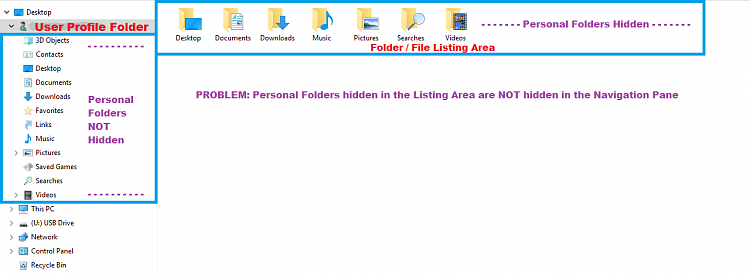

10. Notice the recently-hidden folder is still showing in the Navigation Pane even though it is hidden in the File/Folder Listings Area.

System Specs:

• Edition: Windows 10 Home 64bit
• Version: 1709
• OS Build: 16299.371
• Hard Drives: 2 (SSD & Mechanical)
• C:\ = SSD
• D:\ = Mechanical

Current Modifications of System:

• The %UserProfile% system folder was successfully transferred to D:\ by using Sysprep during Windows Setup. This is the only system folder moved to another drive.

Current Modifications of File Explorer in Navigation Pane: (using Regedit)

• Hidden = Quick Access
• Hidden = Libraries
• Hidden = OneDrive
• Hidden = Homegroup
• Hidden = This PC user personal folders

Current Modifications of File Explorer in Folder/File Listing Area:

• Each unwanted Personal Folder was changed to "Hidden" by Right-clicking the folder and Checking the Attribute checkbox marked "Hidden".

3rd-Party Software Installed:

• Classic Shell
• Mozilla Firefox
• IObit Driver Booster
• Macrium Reflect
