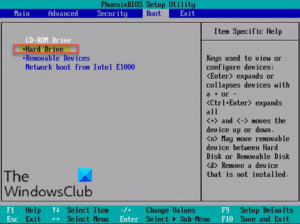

Windows 10: SSD is in BIOS, but Windows 10 won’t boot from it

Solid-state drives (SSD) are a faster upgrade to the traditional hard disk drives (HDD). […]

This article SSD is in BIOS, but Windows 10 won’t boot from it first appeared on TheWindowsClub.com.

read more...



Windows 10 SSD Boot and Sleep faliure

Windows cannot stop the BIOS recognising the SSD. If at any time you can go into the BIOS and the SSD is not listed then you have an (intermittent) hardware fault. It does not matter what the precursor steps are if the hardware was OK it must be listed

Step 6 is categorical, you have a hardware fault. BIOS device recognition is always before drivers load so they cannot affect the process



Sabertooth 990fx won't boot to windows logo, it shuts down

to boot and enter bios and load windows, any todays PSU (with the correct plugs) will work, AFAIK

to enter BIOS only low wattage is used.
Then, during boot, the HDD and a bit later the videocard card start to demand juice, then the other devices and periphericals... so the total demand during boot up is incrementing step by step, that's why a failure halfway could indicate a PSU problem....



Laptops can't boot from optical HDD\SSD caddy :-(

Hello
I have been investigating *a lot* and trying to boot a 2015 year HP Pavilion DV7 17-f076no (Serial: J1X05EA#UUW) from a Chinese Ebay optical drive HDD\SSD caddy:
Read multiple forum questions that had the same problem as I: ( Bios can't find a bootable SSD inside optical caddy )
https://forums.lenovo.com/t5/Lenovo...find-caddy-SSD-in-BIOS-boot-list/td-p/3278964
Tom's Hardware: For The Hardcore PC Enthusiast

Startup:

• Cloned a 1000gb HDD containing 100/1000gb of Windows 10 Home 64-bit to a 500gb SSD with a EZ Gig IV 4.6.2 cloning software and a USB-SATA transfer cable.
• Original 1000gb HDD is still inside the laptop.
• DVD-drive replaced with a 500gb SSD caddy.

So far:

• The SSD (=2018 Samsung 860EVO 500gb) can be used and seen inside Windows 10. ( As a storage only )
• The 2015 Bios F.43 Rev.A American Megatrends Inc. can not see the SSD from the BIOS boot order. Windows Boot Manager sees only the original HDD.
• UEFI Legacy boot-mode is disabled. I don't think enabling it would help since I'm starting up Windows 10.

Solutions:

• Faulty caddy ? Chinese sellers sell many multiple variations of different 9.7mm thick caddys with different micro switches. This one had only a 1 pc of micro switch with 2 position choices.
• Bios is just not flexible enough. Open the 20+pcs of laptop screws and put the SSD to the place of the original HDD.
• UEFI Legacy mode ?
• Modding the caddy. Someone said the caddy is in a "power saving sleep mode" when inside BIOS and it is therefore unseen and shortening some pins would help ? Any experience in soldering the caddy electronics so that it is constantly awake ? This sounds believable ?
• Cloned the HDD twice to minimize errors but no help I doubt it is because of the cloning process and if it is it is because the HDD and SSD were not the same size 1000gb and 1000gb and the partitions don't match or so...?

Laptops are not easy...
