Windows 10: Task Manager Performance tab doesn't show usage graphs

Discus and support Task Manager Performance tab doesn't show usage graphs in Windows 10 Performance & Maintenance to solve the problem; I would like to set my Task Manager's Performance tab to show the graphs for each of the logical processors, but when I set it to show Logical... Discussion in 'Windows 10 Performance & Maintenance' started by Meisha, May 21, 2019.

  1. Meisha Win User

    Task Manager Performance tab doesn't show usage graphs


    I would like to set my Task Manager's Performance tab to show the graphs for each of the logical processors, but when I set it to show Logical Processors, it only shows them as empty boxes with percentages in text on each one, and they flash between white, light blue and darker blue, according to the usage. However, in Windows 7, I could see graphs that gave me a much better idea of what was going on. I did a search, and the article I found said that just setting it to Logical Processors should show the graphs like Windows 7, but it doesn't. I'm just getting the empty boxes. I tried rendering a file to see if it was only because it wasn't busy enough, but no change. Could anyone please tell me if there's another setting I need to change somewhere to get the graphs to show, or what might be the problem? Thank you!

    :)

    Meisha, May 21, 2019
    #1
  2. carbonic Win User

    GPU graph in Task Manager's performance tab

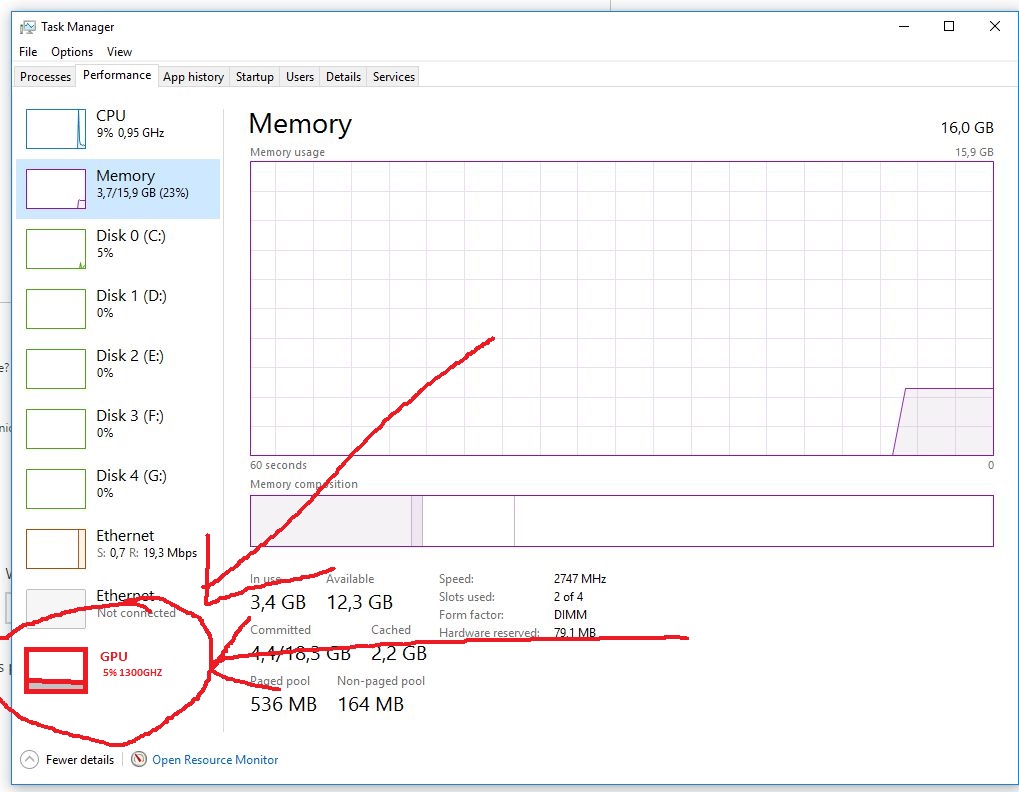

    I would like there to be a GPU graph in the task manager in the performance tab.

    Anyone know why there isn't any?

    Example:


    Task Manager Performance tab doesn't show usage graphs db7cb0cf-92b3-4b28-9043-e31a68bae0e2.jpg

    carbonic, May 21, 2019
    #2
  3. Light_Lz Win User
    Win 10 Task Manager Won't Show Performance Graph of Ethernet

    After upgrading from win 8.1 to win 10, the task manager a bit lag once switch to performance tab. Then, most of the time the graph won't show for ethernet but working for CPU, memory and disk (Only 1 time working, but I didn't do any changes).

    Is there any solution for this?

    Laptop model: ASUS A550L

    https://s32.postimg.org/tapam5tfp/image.png

    Light_Lz, May 21, 2019
    #3
  4. ruffin Win User

    Task Manager Performance tab doesn't show usage graphs

    Why are my Task Manager Performance tab mini-graphs dots?

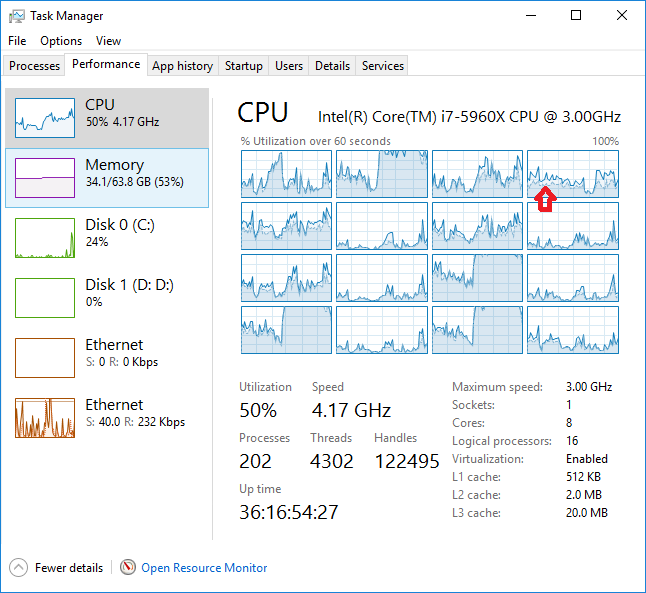

    In this question, you can see the Task Manager showing mini-graphs for all the metrics on the left (ignore the right arrow; that's germane to the question at the above URL).

    Task Manager Performance tab doesn't show usage graphs FGDJx.png

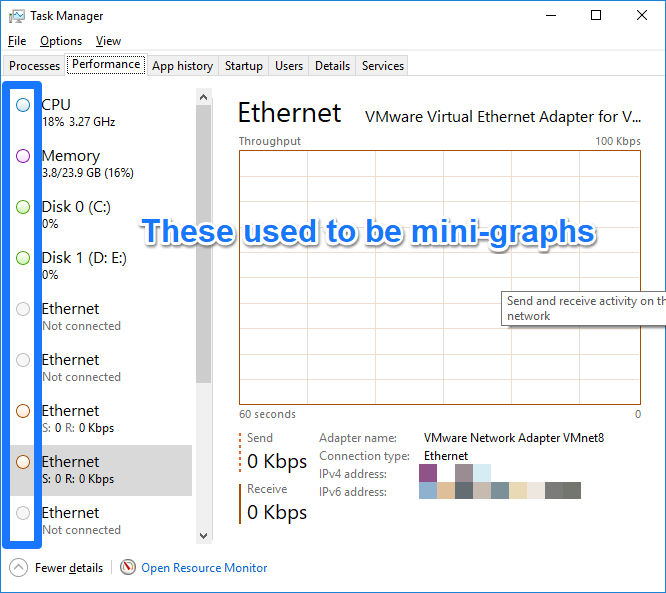

    Occasionally, Task Manager only shows me dots.

    Task Manager Performance tab doesn't show usage graphs veol3.png

    How do I get the mini-graphs back?

    ruffin, May 21, 2019
    #4
