Windows 10: Unable to create Hard disk partition

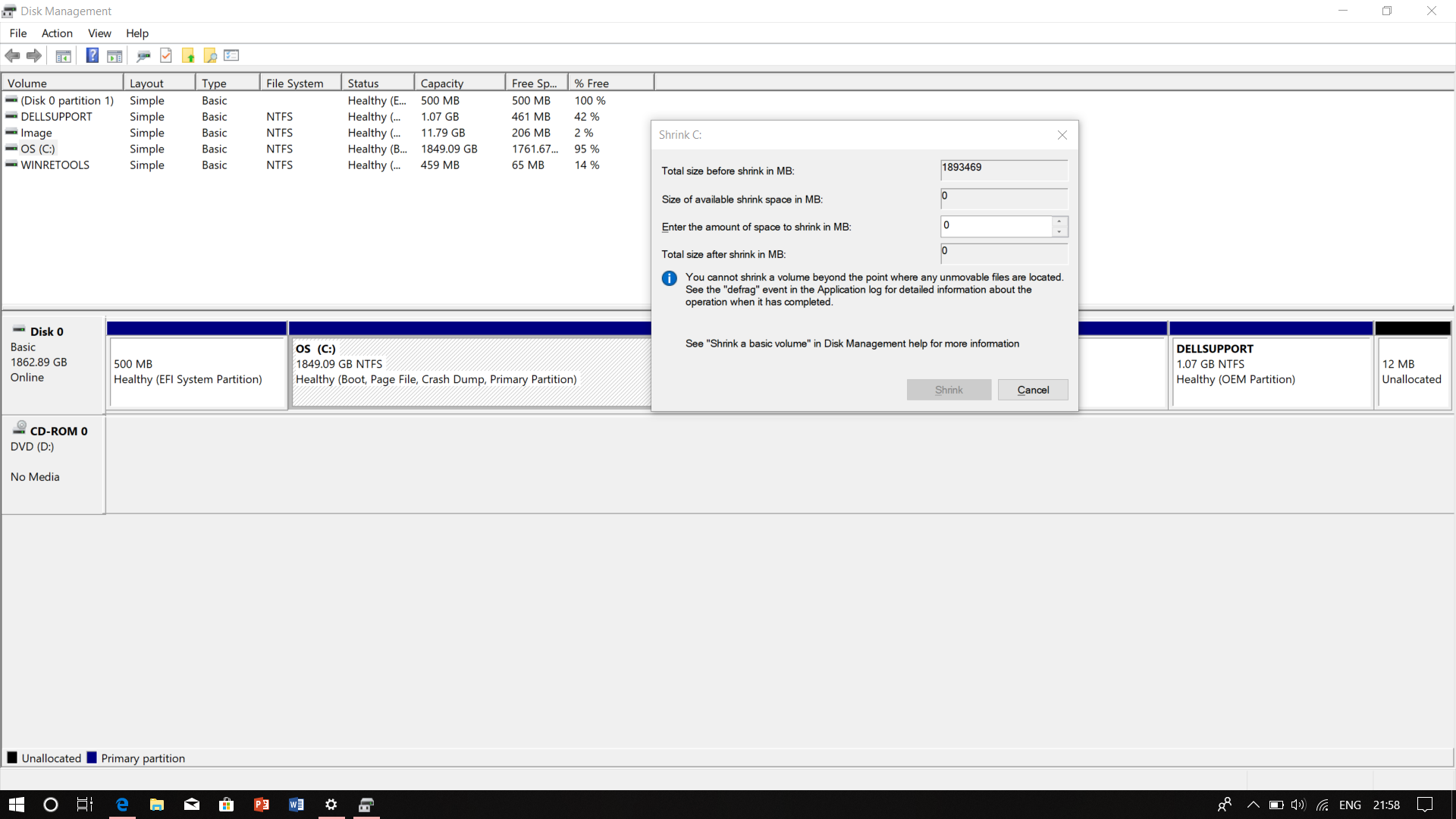

I brought new laptop from store, genuine windows 10 already installed. when I tried to create new partition in C Drive by shrinking volume, window appears says available volume for shrink is zero. Disk is of 2TB and only 5% is occupied. help me to fix this issue. how can I create new partition in drive C.

:)



W7 Hard drive partition issue

to get rid of that 100 meg windows partition that setup creates for you on a new install on a blank hdd:

- press shift+f10 when on the partition management screen in setup <-- this opens a command prompt
- diskpart <-- start the windows command line partition management tool
- list disk <--- list the installed hdds in this computer for the next step
- select disk 0 <- might have to replace 0 with the number of the correct disk
- clean <-- this will erase all data on the disk you selected one step up- dont use the wrong disk!
- create partition primary <- creates a primary partition taking up all space on the drive, adjust the command if necessary
- exit, exit to exit diskpart and the command prompt
- click refresh in partition manager and select your newly created partition and install to that



Hard disk partition not showing up.

Hi Muhammad,



Thank you for writing to Microsoft Community Forums.



This can happen if the Hard-disk drivers are not up-to date. I would suggest you to update the hard disk drivers first. To update the drivers, please follow the steps mentioned below:

1. Open Device manager.

2. Then Expand “Disk drives”.

3. Then Right click on the Hard-disk listed under this category.

4. Then click on Update drivers.

5. Alternatively you can also try to update the drivers from manufacturer’s website.


Once the hard-disk drivers are updated, you will need to allocate the last partition (it is not allocated according to the screenshot) and you will be able to view the partition.



Also note that sometimes the hard disk partitions/drives might be hidden in This PC or My Computer window due to a Registry key. If a DWORD with the name NoViewOnDrive or NoDrives is present under following key in Registry Editor:

HKEY_CURRENT_USER\Software\Microsoft\Windows\Current Version\Policies\Explorer

Delete the DWORD and your drives will become visible in My Computer window.



Hope this helps.



hard partition

Hi Prasad,

Thank you for posting in Microsoft Community.

I understand that you are trying to extend the Volume of Drives and create partitions from C: drive.

I would suggest you to follow the steps and check if it helps you.

• Press Windows + R keys, type diskmgmt.msc hit
  enter.
• Disk management will open. Right click on the C: drive
  below in the segments of the partitions.
• Select Shrink Volume. Select the Amount of space
  you want to extend in MBs (1GB = 1024MB).
• Follow the instruction and check if it creates a Unallocated Drive.

Later after the Unallocated drive is created follow the below steps to crate a partition.

• Right click on the Unallocated drive and select
  New Simple Volume.
• Select the Drive letter and follow the instructions and check if it
  creates a partition.
• Follow the same to Create partition.

Note: C: drive must be not less than 100GB if you are using a 1TB hard drive. partitions must not be more than 3 drives to have a better functioning of the system.

Keep us posted to help you better.
