Windows 10: Unable to Reset Microsoft Surface Pro 3 American Megatrends screen

Hi everyone,


I'm hoping that I can get some help. I've tried to completely wipe and reset my Microsoft Surface Pro 3 but was unsuccessful. I created a recovery drive, uploaded the recovery image onto the drive and then tried to reset using the drive. Once I did it for the first time, it made it to 95% and then said it failed. Then once I tried to restart, I got the American megatrends screen as seen below and the button "Recover from a USB drive or something like that" is no longer an option when I can somehow manage to make it to the blue troubleshoot screen. I also tried to recover using the recovery image, but it says it cannot locate it on the USB drive. Any help would be most appreciated!

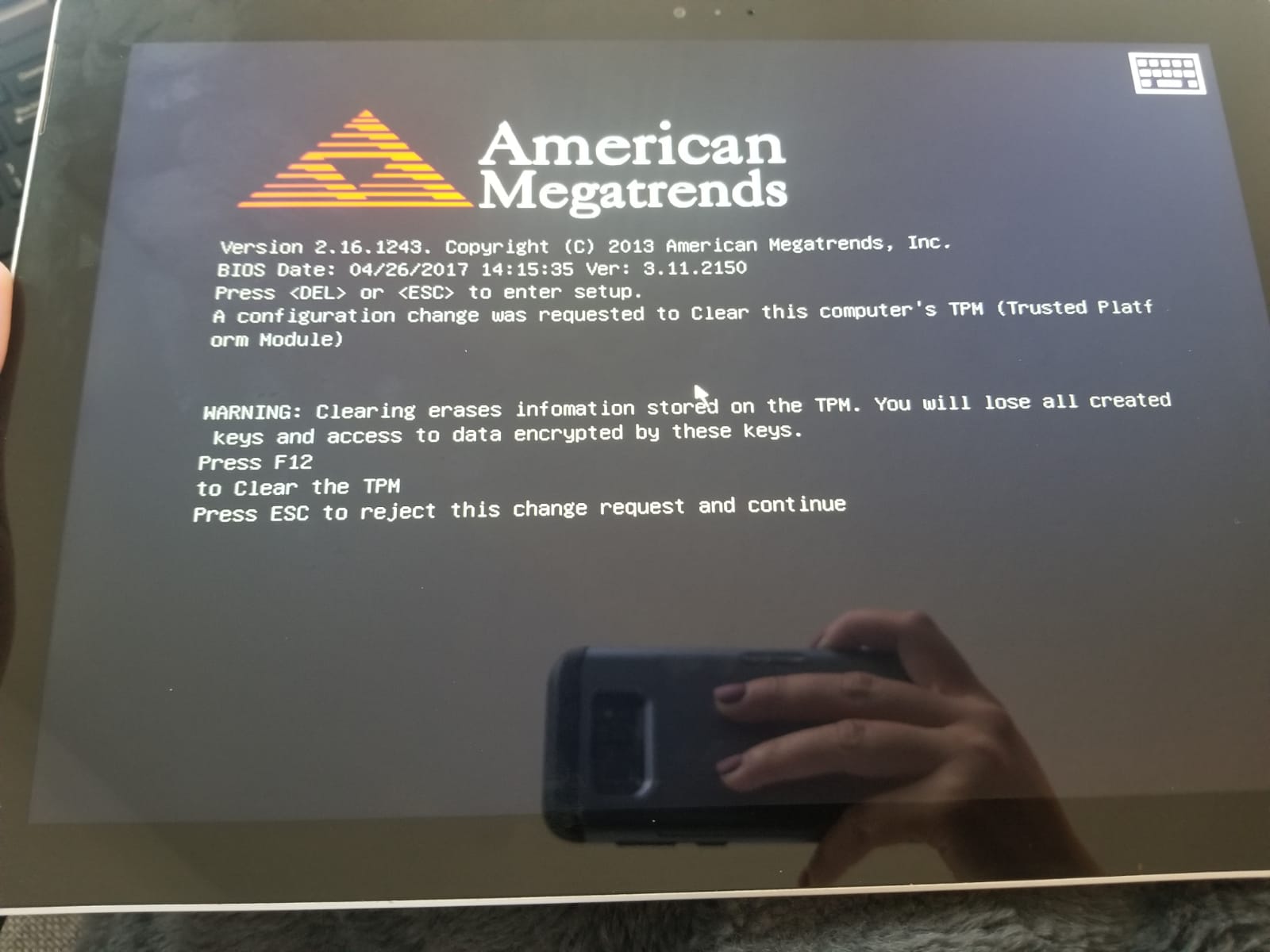

Please see below picture of screen.




Thanks!

:)



SURFACE PRO 3 RESET TO FACTORY DEFAULTS PROBLEM

The camera caused a system freeze every time it was activated so I thought why not restore.

• I attempted to reset my Surface Pro 3 to Factory defaults.
• The Surface Pro made it to 1% then crashed.
• Now it is in a reboot loop.

I have tried several times and now it gives an "Unable to reset your PC. A required drive partition is missing" error.

Do you have any suggestions on how to make it work again?



American Megatrend Mystery

Since the last updates on my Windows 10 computer, at start up the screen if filled with data and a large title American Megatrend at the top. Why is this suddenly starting to happe? I can see no need for it anyway.



Surface Pro 3

Hi ChrisWaters3,

Thank you for writing to Microsoft Community Forums.

Could you please help me with the below information:

1. Does the battery drain out, if the tablet is not connected to peripherals?


2. Which version of Windows you are using? (To check, type: winver in start menu and hit enter.)


I understand how something like this can try your patience. This issue is an indication of faulty drivers or incompatible driver.
However, I suggest you to follow the troubleshooting steps mentioned below:

Method 1: Check the drivers.

Step1: Battery driver

1. Press Windows andR
   key together on your Keyboard.
2. Type devmgmt.msc and hit enter.

3. Click on view on top > Select Show hidden devices.

4. Expand the Batteries option from the list.

5. Select the ACPI Compliant Control Method Battery> right click on the driver and click on
   Properties.
6. Click on Driver tab > check if you have the option to
   Roll Back Driver.
7. If yes, Roll back the driver or uninstall it and restart the computer.


Uninstalling the driver will be automatically installed after the system is restarted. Check if the issue is fixed.

Step 2: Keyboard driver.

1. In the Device manager, go to ‘Other devices’, you will find
   Unknown devices.

2. Double tap on the unknown device > click on
   Driver tab> click on update driver.

3. Select browse my computer for driver software> Click on Let me pick from a list of device drivers

4. Select keyboard, then click ‘Next’.

5. Select HID Keyboard device and click finish.


Method 2: Run the toolkit.


Note: If your Surface is managed by your work or school, check with your organization's IT department before running the tool.

I would suggest you to run the toolkit provided by Microsoft on
Fix common Surface
problems using the Surface Diagnostic Toolkit

If the above steps, doesn’t fix the issue. I would suggest you to follow the steps mentioned in the article on
Surface Pro 3 Battery
FAQ for the Surface Pro Embedded Controller Firmware update.


Hope it helps.

Roohi Taj S

Microsoft Community - Moderator
