Windows 10: USB Selective Suspend is not working

Greetings all,


Long story short:


No matter how many USB options I check in device manager (properties > power management > allow the computer to turn off this device to save power), and no matter how many Advanced power plan settings I adjust the USB selective suspend setting to "Enable" for, not a single USB port on my computer will turn off during a system shut down state.


(Relevant?) System Information

Operating System: Windows Home 64-bit

Motherboard: Asus Maximus XI Gene

CPU: Intel Core i7-9700K

GPU: Asus Nvidia GeForce 2080 Ti STRIX 11G

Ram: G.Skill TridentZ RGB Series 32GB (2 x 16GB)

OS Drive: Two 1TB Samsung 860 Evo SSDs in Raid 1

Back Story:


I've given up on reading articles and how-to's, and am finally just asking for help. The full situation is that I have hardware peripheral devices connected and powered by an external USB hub to my computer's rear IO USB ports. In order to avoid reaching over and through awkward spaces just to switch things on and off EVERYTIME, I need to have these devices turn on and off with the computer automatically. So I used the BIOS ErP and Onboard Device Management settings to fully turn off the ability to power USB ports when the computer is in Off States (S4 + S5). However, I also have external and internal RGB light strips, controllers, and things connected through internal USB ports that lose their memory/settings when the system shuts down, regaining those settings only after the OS and services/apps have loaded. Until then, the lights are wild and very unsightly during boot. As such, I decided not to use the BIOS for this and in comes Windows USB Selective Suspend.


Thank you very much for any time and consideration given to this inquiry!


Not sure if this should have been posted under "Sleep and Power on/off" or "Windows Settings." Feel free to move, or suggest a more appropriate location for me to move this to.

:)



USB selective suspend

Hi,

To better explain your concern, kindly refer to the support link below:

• Selective suspend in USB drivers (WDF).


Let us know if you need further help.

Best regards.



USB selective suspend settings not available?

Hello Grant,

To answer your question about USB Selective Suspend Settings, follow the steps below:

• Press Windows + X.
• Choose Power Options.
• Select Choose when to turn off the display.
• Open Change advanced power settings.
• Expand USB settings and USB selective suspend setting.
• Select Enabled (default) or Disabled.
• Click Apply, then OK.

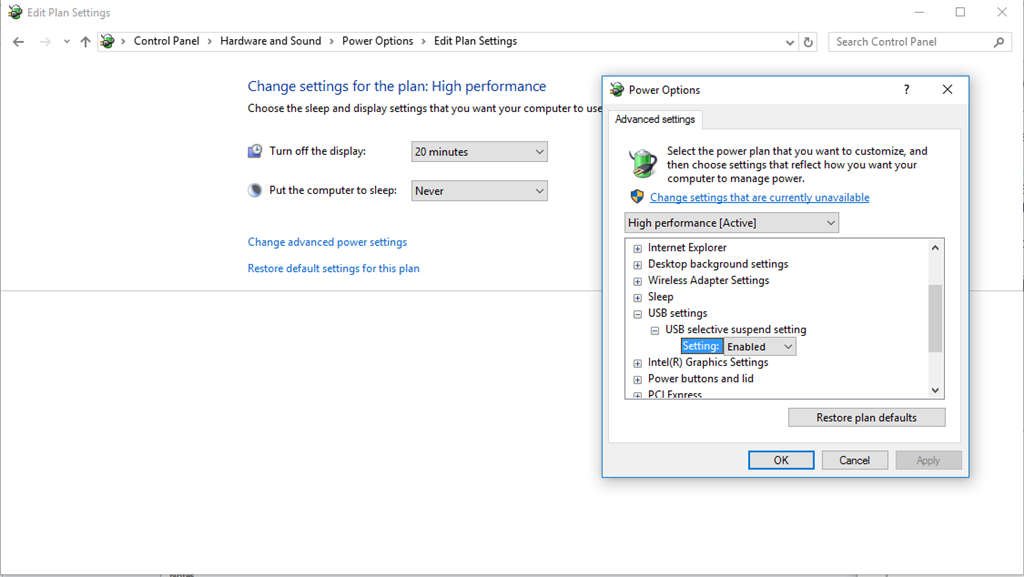

Please check out the image below for your reference:





Keep us informed about the outcome.

Thank you.



USB selective suspend

If I set USB Selective Suspend to DISABLED - Do the USB ports continue to be powered when the laptop is switched off or am I working the wrong way round ?
