Windows 10: What is 10gb OEM 'Image' partition (+ how to delete)?

Hi folks,
I've recently been doing prep to dual boot linux on my system, backing everything up, freeing space, etc.

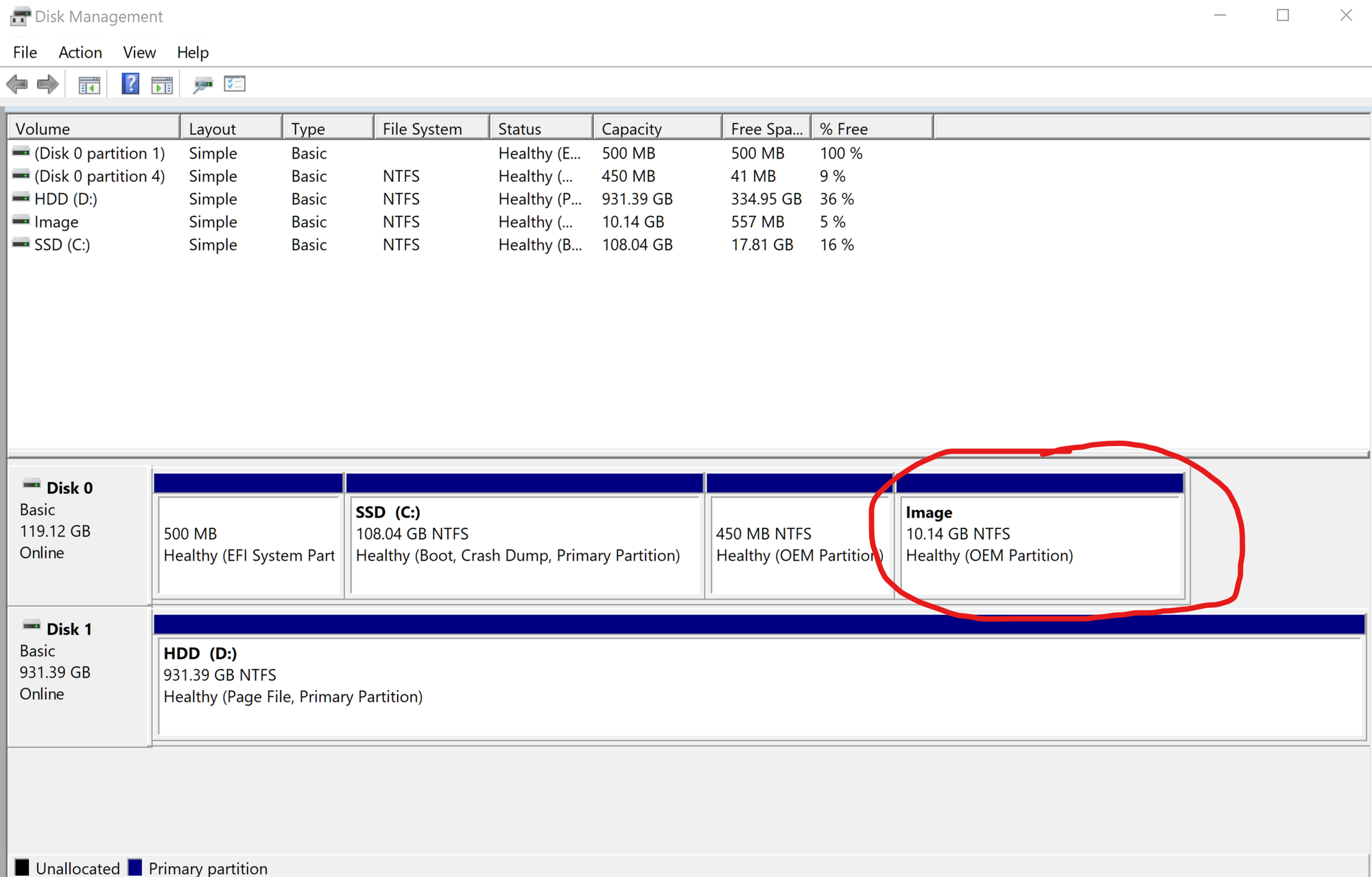

In the process, I've noticed this fairly large OEM partition on my machine simply labelled 'Image', the purpose of which I'm not 100% sure. I believe it's an image that shipped with my PC from Dell, which allows resetting the whole system to factory settings. I would really like to reclaim the space, but would prefer to backup stuff if it serves any appreciable purpose.


My questions:

• How do I delete this partition?
• If I just create a system recovery disk, is there even any point to having it?

This is all on a Dell laptop, Windows 10 - Home Edition.

Cheers in advance folks

:)



How to delete EOM Partition Image.

Good day ! I am an independent adviser here to help you!

I assume you mean OEM.

You can do this with the following steps. Do not include quotes when typing the commands:

1. press windows key + R and type "diskpart" then hit enter to open diskpart.

2. type: "list disk" to display all disks.

3. Type: "select disk X" where X stands for the drive where the partition is.

4. type "delete partition override" to remove the OEM partition then "exit" to leave.



[HELP]Image recovery issues

Guys i am trying to fix my cousins Asus Eee netbook. It has a backup image file that is partitioned on the hard drive but when I go to use it the app will run through a few steps and stop. It is running Vista . Any suggestions?



How to delete EOM Partition Image.

Hello TijsBeek

Thank you for participating in the Microsoft Community, My name is Miguel T. I'm an independent Advisor

Before delete it, be aware; OEM partition is designed for system recovery or factory restore. It allows users to easily and quickly restore the system to the original state when system failure or system crash occurs. This partition usually comes with Dell,
Lenovo or HP computer.

Delete OEM partition with Diskpart

* 1. Hit "Windows Key + R to open the run dialogue box, enter: diskpart and click "OK" to open a black command prompt window.

* 2. Type: list disk to display all the disks of your computer. Type: select disk n to identify which disk you need to work with. Here "n" stands for the disk letter.

* 3. Type: list partition to display all the volumes on the hard drive. Type: select partition n to identify which partition you want to remove. Here n stands for the volume letter.

* 4. Type: delete partition override to remove the OEM partition. Finally, type: exit to close the windows when you receive the message says, DiskPart successfully deleted the selected partition".

To get more info please follow third party web page below:

https://www.easeus.com/partition-master/delete-...

Note: This is a non-Microsoft website. The page appears to be providing accurate, safe information. Watch out for ads on the site that may advertise products frequently classified as a PUP (Potentially Unwanted Products). Thoroughly research any product advertised
on the site before you decide to download and install it.

I hope this information has been useful, please let me know if you still need assistance.
