  2. Install Driver on Windows PE Environment

    Hi,

    We are trying to install kernel-mode driver to Windows PE, but not able to do so.

    We checked using DevManView tool to check driver in windows PE. But we didn't see the Device object created.

    We suspect that the Driver Service didn't start.

    Given below are the details of the issue:

    Driver Details: SCSIAdapter class filter driver. (SdFilter)

    Steps followed:

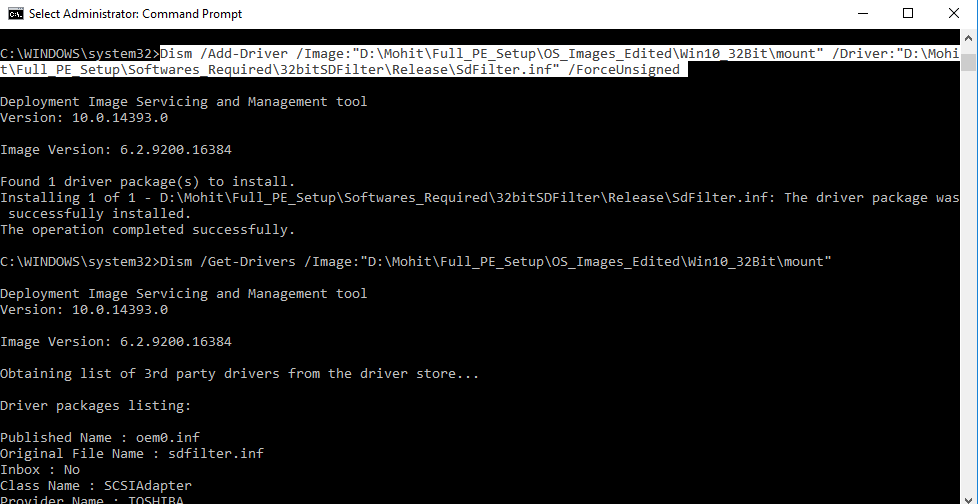

    • Used DISM to edit the Windows PE image offline. (Inset image below)

    What is Windows PE? Use, Limitations, Download and more 9b0b98a6-84db-4a3f-be54-b5725e2fb121.png

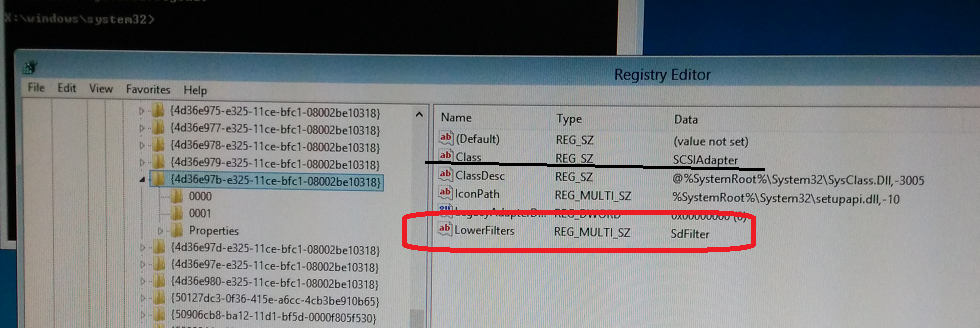

    • Manually added the Driver details to the registry. The registry change is visible after reboot
      (inset image below)

    What is Windows PE? Use, Limitations, Download and more 2c3da2e1-8ef6-4e68-9ba2-c69d1a6add0d.png

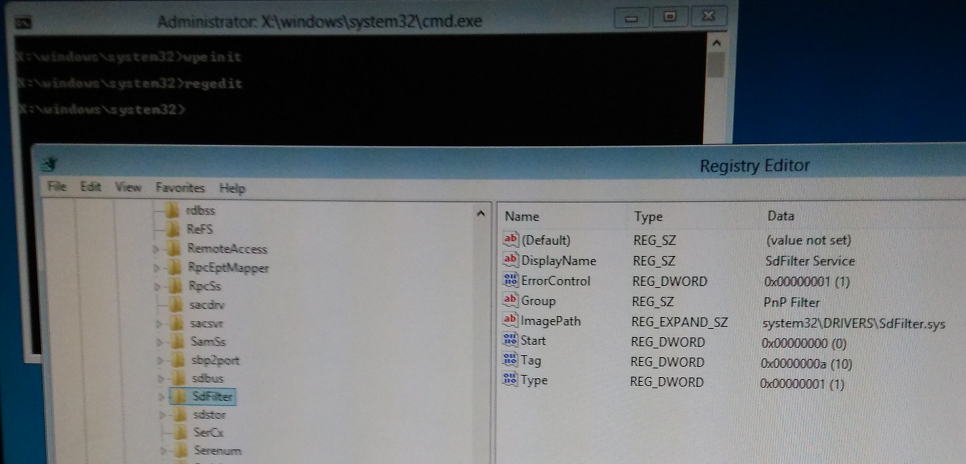

    • Manually added Service (ServicesActive database) to offline image. The registry change is visible after reboot (inset image below)

    What is Windows PE? Use, Limitations, Download and more 8130ca1d-e8b0-40b3-8d39-1b5ba1099c6b.png


    But we checked using DevManView tool to check driver in windows PE. But we didn't see the Device object created.

    We suspect that the Driver Service didn't start.

    Can someone please guide how can we add the driver to the Windows PE environment.

    PS: The given filter driver is test signed. So, we suspect that later we will face test signed issue but that will be our second step to debug. Right now, not able to get through the first step.

    Thanks and Regards,

    Rakendra

    rakendrathapa, Mar 10, 2019
    #2
  3. Psyclone Win User
    X800 Pro VIVO to XT PE Bios Mod

    I have a question. I have an x850 pro VIVO that I want to flash to a PE version. In the original post, in the steps listed to perform the flash, it says to download and use the NON PE bios if you are flashing an x850 pro and a x800 PE bios if you are flashing an x800 pro.

    I want to be clear before I do this that, you are in fact supposed to use the regular NON PE bios for the x850. I am just making sure that they are in fact different procedures for the x800 vs the x850, I don't want to mess up and hose my card.

    Psyclone, Mar 10, 2019
    #3
  4. Sasqui Win User

    What is Windows PE? Use, Limitations, Download and more

    Overclocking / Undervolting guide for Vega 56 or 64?

    Here's a quick laundry list:

    List of software to use for overclocking and testing
    Examples:
    Wattman (and how to find and use it, like an overview, including profiles)
    Unigine Valley or Heaven (use this for quick testing while changing settings in Wattman and checking for stability / artifacts) ...just suggesting this
    How to monitor cores / mem speeds and temps during testing (I've seen screen overlays, and others using GPUz)

    Step-by step overclocking in Wattman
    Fan speeds
    Power limit
    Temp limit
    Voltages
    Core speeds
    Memory speeds

    Sasqui, Mar 10, 2019
    #4
