Windows 10: WHEA ID 46

Hi!Recently i've changed the motherboard, CPU and RAM on my PC, after which, my computer has been randomly giving me the BSOD when playing games, when checking Event id for the cause of the crash the following error is produced with event id 46:A fatal hardware error has occurred.Component: MemoryError Source: Machine Check ExceptionThe details view of this entry contains further information.the following Minidump file was produced following the crash: 022624-7000-01.zipanyone has any idea whats causing t

:)



WHEA 46

Hello, I'm Greg, here to help you with this.

Try these fixes which work most often for Games Crashing in Windows 11:

https://answers.microsoft.com/en-us/windows/for...

In addition to those steps try these fixes for WHEA code 46 Machine Check Exception crashes on AMD:

https://www.reddit.com/r/Amd/comments/k316uh/ry...

https://www.reddit.com/r/Amd/comments/vfiln0/an...

https://www.bleepingcomputer.com/forums/t/76984...

https://forums.anandtech.com/threads/machine-ch...

https://www.techpowerup.com/forums/threads/new-...

Let me know if you have any questions or I can help performing any of the above steps. Based on the results you post back I will have other steps to try if necessary.

____________________________________________

Standard Disclaimer: There are links to non-Microsoft websites. The pages appear to be providing accurate, safe information. Watch out for ads on the sites that may advertise products frequently classified as a PUP (Potentially Unwanted Products). Thoroughly research any product advertised on the sites before you decide to download and install it.



WHEA ID 46

Hello,

I have recently build a custom PC.
My computer crashes very often, almost always while playing games.
Looking into the crash info using the Event Viewer tool, I have a few errors. I am not sure which one is the most relevant.

I noticed this related question: Redirecting

But I do not have a C:\Windows\Minidump or a %SystemRoot%\MEMORY.DMP directory, as specified in System Properties > Advanced > Startup and Recovery > Dump File.

Can anyone help with identifying the root cause of this issue ?

===== Event 46, WHEA-logger =====
A fatal hardware error has occurred.

Component: Memory

Error Source: Machine Check Exception

The details view of this entry contains further information.

===== Detailed view =====

- <Event xmlns="http://schemas.microsoft.com/win/2004/08/events/event">

- <System>

<Provider Name="Microsoft-Windows-WHEA-Logger" Guid="{c26c4f3c-3f66-4e99-8f8a-39405cfed220}" />

<EventID>46</EventID>

<Version>0</Version>

<Level>2</Level>

<Task>0</Task>

<Opcode>0</Opcode>

<Keywords>0x8000000000000000</Keywords>

<TimeCreated SystemTime="2022-08-15T17:09:25.1129551Z" />

<EventRecordID>14294</EventRecordID>

<Correlation ActivityID="{00f8e52c-c447-4062-a978-44713afbf3d5}" />

<Execution ProcessID="5144" ThreadID="6316" />

<Channel>System</Channel>

<Computer>BOBZILLA</Computer>

<Security UserID="S-1-5-19" />

</System>

- <EventData>

<Data Name="ErrorSource">3</Data>

<Data Name="FRUId">{00000000-0000-0000-0000-000000000000}</Data>

<Data Name="FRUText" />

<Data Name="ValidBits">0x2</Data>

<Data Name="ErrorStatus">0x0</Data>

<Data Name="PhysicalAddress">0x36f2ee1c0</Data>

<Data Name="PhysicalAddressMask">0x0</Data>

<Data Name="Node">0x0</Data>

<Data Name="Card">0x0</Data>

<Data Name="Module">0x0</Data>

<Data Name="Bank">0x0</Data>

<Data Name="Device">0x0</Data>

<Data Name="Row">0x0</Data>

<Data Name="Column">0x0</Data>

<Data Name="BitPosition">0x0</Data>

<Data Name="RequesterId">0x0</Data>

<Data Name="ResponderId">0x0</Data>

<Data Name="TargetId">0x0</Data>

<Data Name="ErrorType">0</Data>

<Data Name="Extended">0</Data>

<Data Name="RankNumber">0</Data>

<Data Name="CardHandle">0</Data>

<Data Name="ModuleHandle">0</Data>

<Data Name="Length">1019</Data>

<Data Name="RawData">435045521002FFFFFFFF04000100000002000000FB0300000D0911000F0816140000000000000000000000000000000000000000000000000000000000000000BDC407CF89B7184EB3C41F732CB57131FE6FF5E89C91C54CBA8865ABE14913BB31AA85BDC9B0D801020000000000000000000000000000000000000000000000A00100005000000000030000010000001411BCA5646FDE4EB8633E83ED7C83B100000000000000000000000000000000010000000000000000000000000000000000000000000000F0010000C00000000003000000000000ADCC7698B447DB4BB65E16F193C4F3DB00000000000000000000000000000000010000000000000000000000000000000000000000000000B0020000240100000003000000000000011D1E8AF94257459C33565E5CC3F7E800000000000000000000000000000000010000000000000000000000000000000000000000000000D4030000270000000003000000000000A13248C3C302524CA9F19F1D5D7723FC0000000000000000000000000000000003000000000000000000000000000000000000000000000002000000000000000000000000000000C0E12E6F0300000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000007F010000000000000002010100010000120FA200000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000090000000000000000000000000000000000000000000000000000000000000000000000000000000300000002000000AF3380BEC9B0D80109000000000000000000000000000000000000000000000035010101000800BCC0E12E6F0300000000000000FE0F1AD00A0000000900000000000000B00010000000000000000000FD010000270000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000003B00000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000010000000000000000000000FF00000000000000000000000000000000000000000000000000</Data>

</EventData>

</Event>

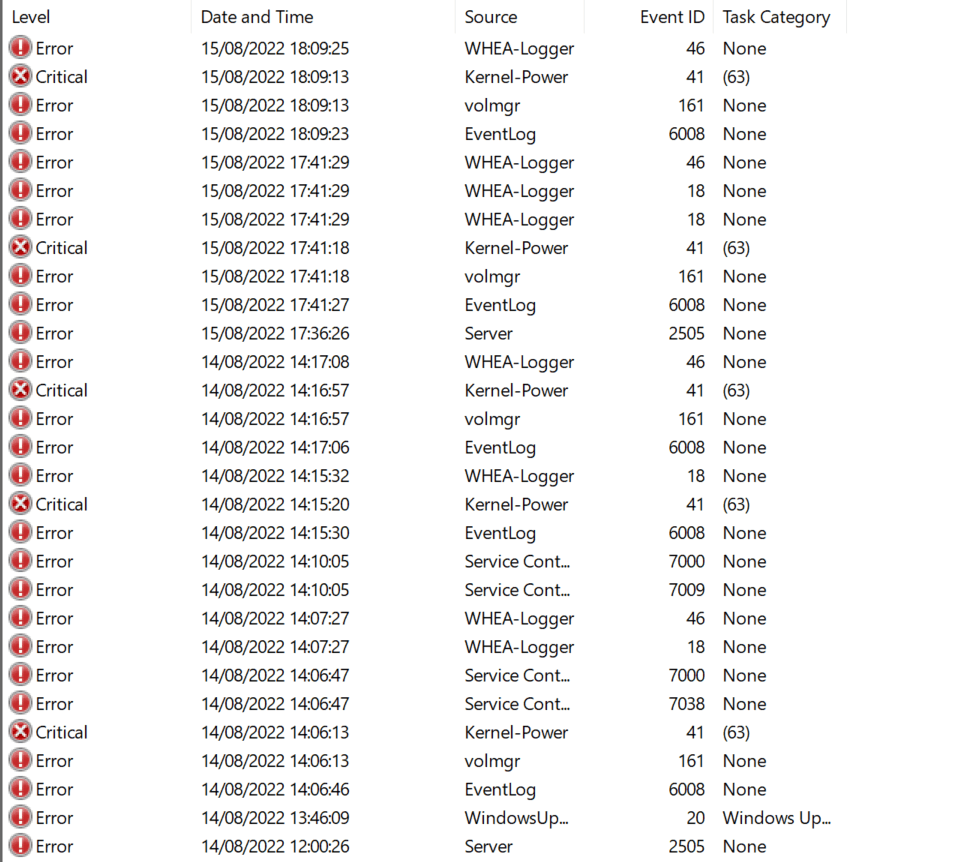

Here is a list of previour filtered errors and critical event in the past 24H, if that helps.



WHEA Event ID 46 - system crash without BSOD

Hi all,

For the last few weeks, I have been experiencing lock ups with my PC. The screen goes black and the CPU LED illuminates on the motherboard. The front panel becomes unresponsive and the only way to power the locked system down is by switching off at the PSU.

WHEA Logger generates an error with Event ID 46 and states the following;

A fatal hardware error has occurred.

Component: Memory

Error Source: Machine Check Exception

The details view of this entry contains further information.

I have tested my RAM with memtest86 and all seems in order.

I have disabled PBO and C-States in BIOS. Updated BIOS and turned off XMP, the fault still stands.

Does anyone have any other suggestions or recommendations or does it seem like my CPU is faulty?

Here is a link to my latest MiniDump if anyone is able to analyse it for me - 070123-11562-01.zip
