Windows 10: When I open settings, the ethernet option does not show up.

I use to have a LAN cable up and running on my windows 10. After an update, I looked at my taskbar and the ethernet icon turned into a wifi icon. I went into settings trying to figure out what happened, I searched ''ethernet'', but the option was not showing up. I went back and looked around the network & internet settings, but could not seem to find anything.

:)



IP configuration not valid - interference from ethernet adapter?

Solution 1: No Internet Access In Windows 8.1or Windows 10

Step 1:

Go to Device Manager → Network adapters.
Step 2:

Expand it (Network adapters).


Step 3:

Select your network adapter


Step 4:

Right click on your wireless network adapter or Ethernet adapter and then tap “Update Driver Software”.
(in this case your network adopter is Ethernet adopter so tap your Ethernet adapter)
Step 5:

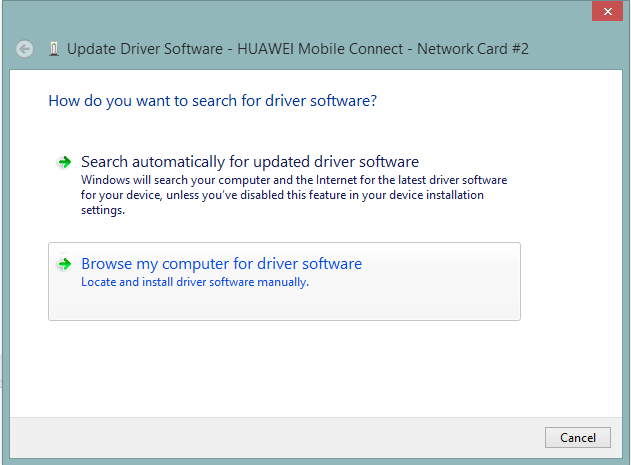

Now on a new window you will need to click on “Browse my computer for driver software”.




Step 6:

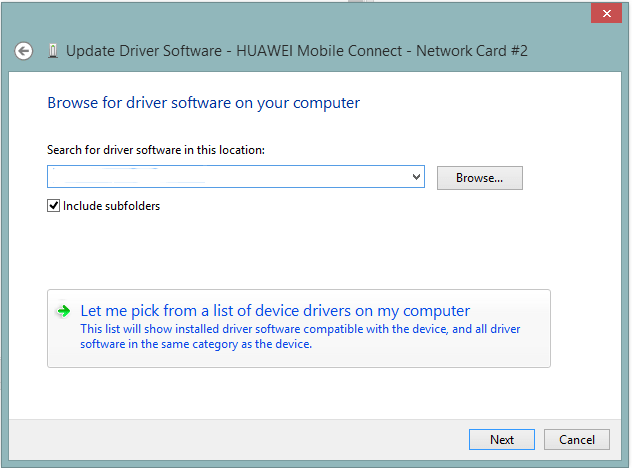

Then select “Let me pick from a list of device drivers on my computer”.



Step 7:

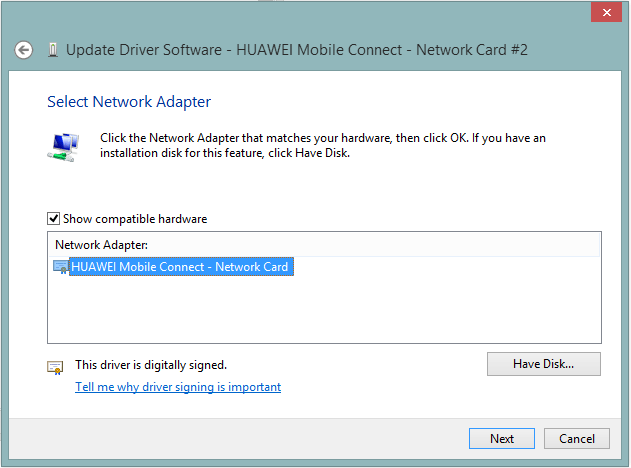

Now choose the “Manufacturer’s drivers” from the list of two and then click next.



Step 8:

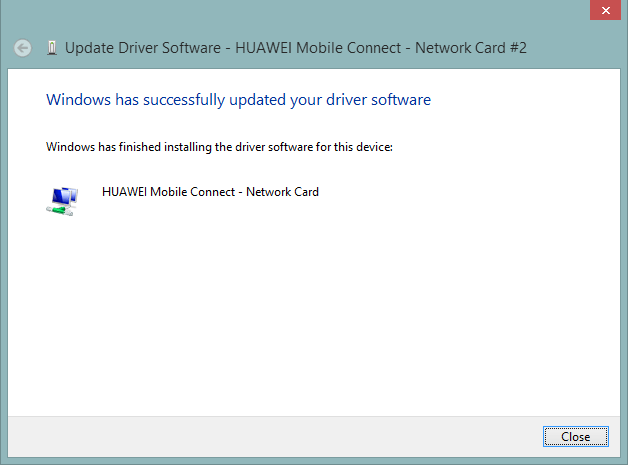

After the completion of the process just restart your PC and check if the problem is solved or not. If not, goto solution 2.



Solution 2: No Internet Access In Windows 8.1,windows10

Step 1:

Open command prompt.
Step 2:

Just go on hitting the enter after typing the each command.
netsh int tcp set heuristics disabled
netsh int tcp set global autotuninglevel=disable
netsh int tcp set global rss=enabled
Step 3:

Now to check if the settings are disabled type:
netsh int tcp show global
then hit enter.
Step 4:

Now the thing left is just rebooting your system and just check if the problem is solved or not and just give feedback.*chuckle*Thumbs



Ethernet shows red X and does not appear in settings, but still works


Not sure why this is happening. I have working ethernet and am connected, it works fine. But the taskbar icon shows a red X over it, and the tooltip says "Not Connected - No connections are available". Looking in "Network & Internet", ethernet is not even listed there. And before anyone suggests wireless interference .. this PC does not have a wireless card or integrated wireless.



Ethernet shows red X and does not appear in settings, but still works

Are you using an Insider build? This is a known issue in one recent one (can't remember which one). I believe the latest preview build fixes it.
