Windows 10: Which recovery partitions and folders can safely be removed?

v1903 installed on a ~256GB MBR disk.
Code: C:\Recovery [folder] 4.86 GB used <unnamed> [partition] 534 MB "Healthy, (Recovery Partition)" Recovery Image [partition] 11.72 GB "Healthy, (Primary Partition)"[/quote] I'm hoping to tidy up this hard drive.
Please could someone indicate which if any of the above three items can be removed.
I'm fairly certain the small Recovery Partition can be deleted, but I haven't been able to find much about the Recovery Image partition.
Thanks!

:)



Windows 10: Can I safely remove WINRE or RECOVERY partitions?

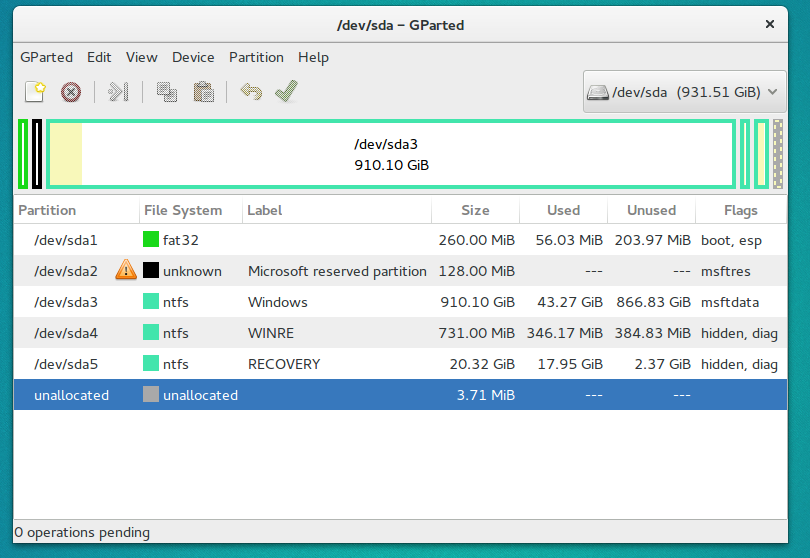

I'm attempting to install Ubuntu Linux alongside Windows 10 in a dual-boot configuration. However, my hard drive comes with four Primary partitions already created, as seen here in gParted:





Thus, I must remove a partition to allow for an extended partition, in which I can place my logical partitions for Linux. I'll shrink the Windows partition to create space.

• I created a recovery USB drive using the HP Recovery Media Creation tool desktop app. Does this drive fully replace the functionality of either the WINRE or RECOVERY partitions? If so, can I safely remove either partition without messing up my Windows 10 installation in any way (including boot process), voiding any warranties, or preventing myself from restoring Windows 10 in the future?

• I know that holding Shift while clicking the Restart button will restart your computer into a special menu where you can change certain settings or boot from removable media (source, step 4 in the article). Is this special menu reliant on either the WINRE or RECOVERY partitions? Is the computer in fact booting into one of these partitions to display this menu?

• What exactly are the purposes of these two partitions?


NOTE: I've read other questions regarding hard drives with four primary partitions already created. They don't resolve my issue, as they don't address the WINRE and RECOVERY partitions on a Windows 10 system specifically.



Remove Recovery Partition and Go to Recovery Drive During HDD to SSD Upgrade

What I wanted

• Remove the recovery partition
• Use a recovery drive

My view now is that the best solution is

• The migration software will not copy the recovery partition - effectively removing it from the SSD
• Use a recovery drive. (I will use the control panel utility to put recovery tools on a usb flash drive - giving me a recovery drive to use.)

I believe my question is answered. Thank you for your help.



How To: Create recovery partition.

it worked when i copied all the files of the disk to the recovery partition i created, but i had to use WinPE tab to add the entry.

Type: WIM Image (Ramdisk)
Name: Recovery
Path: Z:\Sources\boot.wim
and hit Add Entry
I tried it in VirtualBox and it worked.
At first, it would add a second "Windows 7" entry to the list, but when the installation is finished, the old one is deleted. (I formatted only C: partition)
