Windows 10: Wi-Fi 6E AX210 can't detect any wifi signals

Nelson Alex · Jan 26, 2023

Hello,I used to use a usb wifi and bluetooth adapter, however the speeds have been reallybad. Though I just put in an Intel M.2 WiFi/Bluetooth card specifically the WiFi 6E AX210, because my motherboard has space for one, and I thought it would be much better I have a Lenovo ThinkCentre m720s. I installed it normally, however on windows, it can't seem to detect any wifi signal at all. And neither can the bluetooth part detect any bluetooth signals around it. I doubt it's a hardware issue because I just bought it brand new. And know it's designed to work with wifi 6, but I don't have wifi 6

:)

EdTittel · Jan 26, 2023

Is Windows 10 Pro 20H2 FULLY Compatible with Wi-Fi 6E Yet?

FWIW, Tim Higgins says that basic Wi-Fi6 functionality works from Windows 10 Version 2004 forward. I'm sure that more bells and whistles will keep showing up as newer versions of Windows and Wi-Fi technologies become available.

Here are some relevant quotes from his recent Wi-Fi 6E Preview article

<begin quote>
The other part of the puzzle in getting the AX210 connected is that your Windows 10 machine must be updated to at least version 2004 (aka May 2020 update) or higher. Intel's latest Wi-Fi Driver installation includes the 22.30.0.11 driver you'll need. But you'll also need to do a registry edit. I posted instructions for all this over in this SNBForums thread.

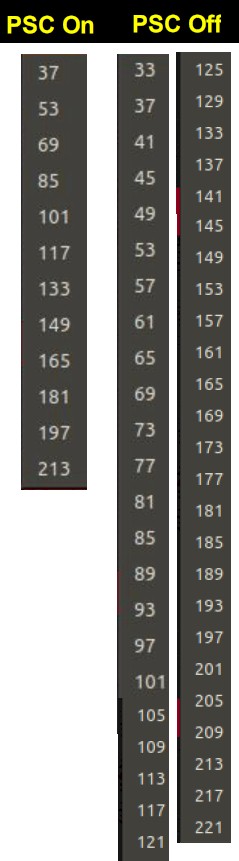

The Wi-Fi 6E: The Basics article says there are 59 @ 20 MHz, 29 @ 40 MHz, 14 @ 80 MHz and 7 @ 160 MHz wide channels available. However, you won't see that many listed in the AXE. With PSC enabled, the lowest channel is 37 and with it off, it's 33. The graphic below shows all 6 GHz channels available in both PSC modes.

</end quote>

HTH,
--Ed--

fugadug‌ ‌ · Jan 26, 2023

Does Windows 10 Pro 64-bit support Wi-Fi 6e and all of it's features?

No. Win10 does not support wifi-6e. Particularly, it does not support the 6GHz band.

Does not according to Netgear, Intel, and even Microsoft support articles.

Does my Microsoft Windows PC support WiFi 6E? | Answer | NETGEAR Support

I'm having problems connecting my Intel AX210 WiFi 6E adapter to my WiFi 6E router or access point. What can I do? | Answer | NETGEAR Support

https://www.intel.com/content/www/us/en/support/articles/000059385/wireless.html

Wi-Fi problems and your home layout - Microsoft Support

I can't imagine why that totally unfounded incorrect CmdKeene post is marked answer here.

Nor why Microsoft Community would host such totally wrong misinformation.

Maybe it's due to MVP nepotism or some reason like that.

There is however one single backdated Intel AX210 driver ver 2.45.1.1 which does enable the 6GHz band on Win10.

It can be found circulating the internet.

Here's one such download for it, from a trustworthy site, Intel's forum.

It's packed in a zip intel-wireless-2.45.1.1.zip at the bottom of this post:

Solved: Re: ax210 window 10 21h2 not showing 6GHz networks - Intel Communities

Use at your own risk.

Brink · Jan 26, 2023

Wi-Fi 6E extends Wi-Fi CERTIFIED 6 into 6 GHz

Capacity, efficiency, and performance for advanced connectivity

Wi-Fi CERTIFIED 6™, the industry certification program based on the IEEE 802.11ax standard, enables next generation Wi-Fi connectivity providing the capacity, coverage, and performance required by users—even in environments with many connected devices such as stadiums and other public venues. Wi-Fi CERTIFIED 6 networks enable lower battery consumption in devices, making it a solid choice for any environment, including smart home and Internet of Things (IoT) uses.

Key benefits of Wi-Fi CERTIFIED 6 technology include:

Higher data rates

Increased capacity

Performance in environments with many connected devices

Improved power efficiency

Wi-Fi CERTIFIED 6 provides the foundation for a host of existing and emerging uses from streaming ultra high-definition movies, to mission-critical business applications requiring high bandwidth and low latency, to staying connected and productive while traversing large, congested networks in airports and train stations.

Wi-Fi 6E extends Wi-Fi CERTIFIED 6 into 6 GHz

Wi-Fi operation in the 6 GHz frequency band enables Wi-Fi to continue delivering positive experiences for the most bandwidth-intensive applications. Wi-Fi 6E certification as part of Wi-Fi CERTIFIED 6 offers the features and capabilities of Wi-Fi 6, extended to the 6 GHz band. Several nations around the globe are making the 6 GHz band available for unlicensed use, and Wi-Fi CERTIFIED 6 provides worldwide interoperability certification for devices in these markets.

COUNTRIES ENABLING WI-FI 6E

Wi-Fi 6E can utilize up to 14 additional 80 MHz channels or seven additional superwide 160 MHz channels in 6 GHz for applications such as high-definition video streaming and virtual reality. Wi-Fi 6E devices leverage these wider channels and additional capacity to deliver greater network performance and support more Wi-Fi users at once, even in very dense and congested environments. Wi-Fi 6E will bring greater technology advancements in Wi-Fi that will introduce new use cases, such as unified communications, cloud computing, and telepresence, and accelerate the next generation connectivity with 5G networks.

Innovation and performance in challenging environments

The ubiquity of Wi-Fi and its ability to complement other wireless technologies helps bring the promise of connecting everyone and everything, everywhere, closer to reality. Wi-Fi popularity has also created very diverse and densely populated Wi-Fi conditions, requiring technological advances to meet the needs of users. Wi-Fi CERTIFIED 6 delivers improvements and new features that enable Wi-Fi devices to operate efficiently in the most dense and dynamic connectivity settings.

Key capabilities:

Orthogonal frequency division multiple access (OFDMA) effectively shares channels to increase network efficiency and lower latency for both uplink and downlink traffic in high demand environments

Multi-user multiple input, multiple output (multi-user MIMO) allows more downlink data to be transferred at one time, enabling access points (APs) to concurrently handle more devices

160 MHz channel utilization capability increases bandwidth to deliver greater performance with low latency

Target wake time (TWT) significantly improves network efficiency and device battery life, including IoT devices

1024 quadrature amplitude modulation mode (1024-QAM) increases throughput for emerging, bandwidth intensive uses by encoding more data in the same amount of spectrum

Transmit beamforming enables higher data rates at a given range to increase network capacity

Wi-Fi CERTIFIED 6 devices bring enhanced performance to emerging applications such as virtual and augmented reality used in e-Learning, telepresence, and healthcare. Wi-Fi CERTIFIED 6 also provides carriers and public Wi-Fi operators with more capabilities to support advanced connectivity in retail, stadiums, and transportation hubs, including a growing array of location-based applications and services.

Click to expand...

Source: Wi-Fi CERTIFIED 6 | Wi-Fi Alliance

See also: Wi-Fi Alliance® brings Wi-Fi 6 into 6 GHz as Wi-Fi 6E
