Windows 10: Wi-Fi Alliance brings Wi-Fi 6 into 6 GHz as Wi-Fi 6E

Brink · Jan 4, 2020

Wi-Fi 6E will rapidly deliver benefits in 6 GHz once available

Wi-Fi Alliance® is introducing new terminology to distinguish forthcoming Wi-Fi 6 devices that are capable of 6 GHz operation, an important portion of unlicensed spectrum that may soon be made available by regulators around the world. Wi-Fi 6E brings a common industry name for Wi-Fi® users to identify devices that will offer the features and capabilities of Wi-Fi 6 – including higher performance, lower latency, and faster data rates – extended into the 6 GHz band. Wi-Fi 6E devices are expected to become available quickly following 6 GHz regulatory approvals, utilizing this additional spectrum capacity to deliver continuous Wi-Fi innovation and valuable contributions to consumers, businesses and economies.

Wi-Fi is ready to utilize 6 GHz spectrum as it becomes available around the world. Wi-Fi Alliance continues to support international advocacy efforts to make this additional spectrum available to Wi-Fi users, while also protecting existing devices in the band. Wi-Fi has been recognized as a foundational technology for the Internet of Things, a necessary complement to delivering 5G, an important tool bringing communication networks to underserved areas, and a strong contributor to global economies. 6 GHz is well suited to facilitate Wi-Fi’s continued growth in these areas due to its adjacency to 5 GHz where Wi-Fi already operates, greater availability of wider channel sizes, and accessibility to clear spectrum with less interference from legacy Wi-Fi 4 or Wi-Fi 5 devices.
Click to expand...

Source: Wi-Fi Alliance(R) brings Wi-Fi 6 into 6 GHz | Wi-Fi Alliance

:)

Brink · Jan 4, 2020

Wi-Fi Alliance announces Wi-Fi 6 certification program

The Wi-Fi CERTIFIED 6™ certification program from Wi-Fi Alliance® is now available and delivers the best user experience with devices based on IEEE 802.11ax. The certification program brings new features and capabilities that enable substantially greater overall Wi-Fi® network performance in challenging environments with many connected devices such as stadiums, airports, and industrial parks. With adoption of the latest Wi-Fi generation increasing, product vendors and service providers can trust Wi-Fi CERTIFIED™ will distinguish Wi-Fi 6 products and networks that meet the highest standards for security and interoperability. Wi-Fi CERTIFIED 6 provides significant capacity, performance, and latency improvements to the entire Wi-Fi ecosystem, while ensuring products across vendors to work well together to deliver greater innovation and opportunity.

Wi-Fi CERTIFIED 6 supports a more diverse set of devices and applications, from those requiring peak performance in demanding enterprise environments to those requiring low power and low latency in smart homes or industrial IoT scenarios. Wi-Fi CERTIFIED 6 delivers nearly four times the capacity of Wi-Fi 5, and is an evolutionary advancement for Wi-Fi’s ability to deliver high-performance infrastructure and optimized connectivity to all devices on a network simultaneously – bringing noticeable improvements in densely connected Wi-Fi environments. Wi-Fi CERTIFIED 6 delivers critical connectivity that supports cellular networks, and leverages high speeds, low latency, power efficiency, greater capacity, and enhanced coverage to deliver many advanced 5G services.

“Wi-Fi CERTIFIED 6 is ushering in a new era of Wi-Fi, building on Wi-Fi’s core characteristics to provide better performance in every environment for users, greater network capacity for service providers to improve coverage for their customers, and new opportunities for advanced applications,” said Edgar Figueroa, president and CEO, Wi-Fi Alliance. “Wi-Fi CERTIFIED 6 will deliver improvements in connectivity, including in high density locations and IoT environments.”

Wi-Fi CERTIFIED 6 delivers advanced security protocols and requires the latest generation of Wi-Fi security, Wi-Fi CERTIFIED WPA3™. Advanced capabilities available in Wi-Fi CERTIFIED 6 include:

Orthogonal frequency division multiple access (OFDMA): effectively shares channels to increase network efficiency and lower latency for both uplink and downlink traffic in high demand environments

Multi-user multiple input multiple output (MU-MIMO): allows more downlink data to be transferred at once and enables an access point to transmit data to a larger number of devices concurrently

160 MHz channels: increases bandwidth to deliver greater performance with low latency

Target wake time (TWT): significantly improves battery life in Wi-Fi devices, such as Internet of Things (IoT) devices

1024 quadrature amplitude modulation mode (1024-QAM): increases throughput in Wi-Fi devices by encoding more data in the same amount of spectrum

Transmit beamforming: enables higher data rates at a given range resulting in greater network capacity

“Wi-Fi 6 brings greater speeds and more efficiency to Wi-Fi networks, expanding its role as a critical communication platform,” said Phil Solis, research director at IDC. “Wi-Fi CERTIFIED 6 drives a higher quality experience for all Wi-Fi’s many use cases, further propelling the Wi-Fi market and ensuring Wi-Fi maintains its strong position as the connectivity landscape evolves.”

Wi-Fi CERTIFIED 6 expands on Wi-Fi’s core strengths including affordable performance, efficient operation, commitment to security, ease of use, self-deployment, and long-term compatibility, while also supporting a more reliable user experience in areas of high user demand. Wi-Fi CERTIFIED 6 leverages Wi-Fi’s global ubiquity to more efficiently connect users in more environments, support growing data requirements, and expand advanced use cases including augmented and virtual reality (AR/VR), streaming high-definition content, real-time monitoring, and mission critical applications. As more spectrum is made available for Wi-Fi, Wi-Fi CERTIFIED 6 will only continue to drive greater global Wi-Fi innovation and economic contributions.

The Samsung Galaxy Note10 is the first Wi-Fi CERTIFIED 6 smartphone, and Wi-Fi Alliance expects most leading phones and access points will soon support the latest generation of Wi-Fi. The first products designated Wi-Fi CERTIFIED 6 which comprise the test bed for certification include:

Broadcom® BCM4375

Broadcom® BCM43698

Broadcom® BCM43684

Cypress CYW 89650 Auto-Grade Wi-Fi 6 Certified

Intel® Wi-Fi 6 (Gig+) AX200 (for PCs)

Intel® Home Wi-Fi Chipset WAV600 Series (for routers and gateways)

Marvell 88W9064 (4x4) Wi-Fi 6 Dual-Band STA

Marvell 88W9064 (4x4) + 88W9068 (8x8) Wi-Fi 6 Concurrent Dual-Band AP

Qualcomm® Networking Pro 1200 Platform

Qualcomm® FastConnect 6800 Wi-Fi 6 Mobile Connectivity Subsystem

Ruckus R750 Wi-Fi 6 Access Point

For more information on Wi-Fi CERTIFIED 6 please visit: Wi-Fi CERTIFIED 6 | Wi-Fi Alliance
Click to expand...

Read more: Wi-Fi CERTIFIED 6™ delivers new Wi-Fi(R) era | Wi-Fi Alliance

See also: Wi-Fi CERTIFIED 6 | Wi-Fi Alliance

Brink · Jan 4, 2020

Wi-Fi Alliance announces Wi-Fi 6 certification program

The Wi-Fi CERTIFIED 6™ certification program from Wi-Fi Alliance® is now available and delivers the best user experience with devices based on IEEE 802.11ax. The certification program brings new features and capabilities that enable substantially greater overall Wi-Fi® network performance in challenging environments with many connected devices such as stadiums, airports, and industrial parks. With adoption of the latest Wi-Fi generation increasing, product vendors and service providers can trust Wi-Fi CERTIFIED™ will distinguish Wi-Fi 6 products and networks that meet the highest standards for security and interoperability. Wi-Fi CERTIFIED 6 provides significant capacity, performance, and latency improvements to the entire Wi-Fi ecosystem, while ensuring products across vendors to work well together to deliver greater innovation and opportunity.

Wi-Fi CERTIFIED 6 supports a more diverse set of devices and applications, from those requiring peak performance in demanding enterprise environments to those requiring low power and low latency in smart homes or industrial IoT scenarios. Wi-Fi CERTIFIED 6 delivers nearly four times the capacity of Wi-Fi 5, and is an evolutionary advancement for Wi-Fi’s ability to deliver high-performance infrastructure and optimized connectivity to all devices on a network simultaneously – bringing noticeable improvements in densely connected Wi-Fi environments. Wi-Fi CERTIFIED 6 delivers critical connectivity that supports cellular networks, and leverages high speeds, low latency, power efficiency, greater capacity, and enhanced coverage to deliver many advanced 5G services.

“Wi-Fi CERTIFIED 6 is ushering in a new era of Wi-Fi, building on Wi-Fi’s core characteristics to provide better performance in every environment for users, greater network capacity for service providers to improve coverage for their customers, and new opportunities for advanced applications,” said Edgar Figueroa, president and CEO, Wi-Fi Alliance. “Wi-Fi CERTIFIED 6 will deliver improvements in connectivity, including in high density locations and IoT environments.”

Wi-Fi CERTIFIED 6 delivers advanced security protocols and requires the latest generation of Wi-Fi security, Wi-Fi CERTIFIED WPA3™. Advanced capabilities available in Wi-Fi CERTIFIED 6 include:

Orthogonal frequency division multiple access (OFDMA): effectively shares channels to increase network efficiency and lower latency for both uplink and downlink traffic in high demand environments

Multi-user multiple input multiple output (MU-MIMO): allows more downlink data to be transferred at once and enables an access point to transmit data to a larger number of devices concurrently

160 MHz channels: increases bandwidth to deliver greater performance with low latency

Target wake time (TWT): significantly improves battery life in Wi-Fi devices, such as Internet of Things (IoT) devices

1024 quadrature amplitude modulation mode (1024-QAM): increases throughput in Wi-Fi devices by encoding more data in the same amount of spectrum

Transmit beamforming: enables higher data rates at a given range resulting in greater network capacity

“Wi-Fi 6 brings greater speeds and more efficiency to Wi-Fi networks, expanding its role as a critical communication platform,” said Phil Solis, research director at IDC. “Wi-Fi CERTIFIED 6 drives a higher quality experience for all Wi-Fi’s many use cases, further propelling the Wi-Fi market and ensuring Wi-Fi maintains its strong position as the connectivity landscape evolves.”

Wi-Fi CERTIFIED 6 expands on Wi-Fi’s core strengths including affordable performance, efficient operation, commitment to security, ease of use, self-deployment, and long-term compatibility, while also supporting a more reliable user experience in areas of high user demand. Wi-Fi CERTIFIED 6 leverages Wi-Fi’s global ubiquity to more efficiently connect users in more environments, support growing data requirements, and expand advanced use cases including augmented and virtual reality (AR/VR), streaming high-definition content, real-time monitoring, and mission critical applications. As more spectrum is made available for Wi-Fi, Wi-Fi CERTIFIED 6 will only continue to drive greater global Wi-Fi innovation and economic contributions.

The Samsung Galaxy Note10 is the first Wi-Fi CERTIFIED 6 smartphone, and Wi-Fi Alliance expects most leading phones and access points will soon support the latest generation of Wi-Fi. The first products designated Wi-Fi CERTIFIED 6 which comprise the test bed for certification include:

Broadcom® BCM4375

Broadcom® BCM43698

Broadcom® BCM43684

Cypress CYW 89650 Auto-Grade Wi-Fi 6 Certified

Intel® Wi-Fi 6 (Gig+) AX200 (for PCs)

Intel® Home Wi-Fi Chipset WAV600 Series (for routers and gateways)

Marvell 88W9064 (4x4) Wi-Fi 6 Dual-Band STA

Marvell 88W9064 (4x4) + 88W9068 (8x8) Wi-Fi 6 Concurrent Dual-Band AP

Qualcomm® Networking Pro 1200 Platform

Qualcomm® FastConnect 6800 Wi-Fi 6 Mobile Connectivity Subsystem

Ruckus R750 Wi-Fi 6 Access Point

For more information on Wi-Fi CERTIFIED 6 please visit: Wi-Fi CERTIFIED 6 | Wi-Fi Alliance
Click to expand...

Read more: Wi-Fi CERTIFIED 6™ delivers new Wi-Fi(R) era | Wi-Fi Alliance

See also: Wi-Fi CERTIFIED 6 | Wi-Fi Alliance

Brink · Jan 4, 2020

Wi-Fi CERTIFIED 6 - Next generation Wi-Fi connectivity

Wi-Fi CERTIFIED 6™, the industry certification program based on the IEEE 802.11ax standard, enables next generation Wi-Fi connectivity providing the capacity, coverage, and performance required by users—even in environments with many connected devices such as stadiums and other public venues. Wi-Fi CERTIFIED 6 networks enable lower battery consumption in devices, making it a solid choice for any environment, including smart home and Internet of Things (IoT) uses.

Key benefits of Wi-Fi CERTIFIED 6 technology include:

Higher data rates

Increased capacity

Performance in environments with many connected devices

Improved power efficiency

Wi-Fi CERTIFIED 6 provides the foundation for a host of existing and emerging uses from streaming ultra high-definition movies, to mission-critical business applications requiring high bandwidth and low latency, to staying connected and productive while traversing large, congested networks in airports and train stations.

Innovation and performance in challenging environments

The ubiquity of Wi-Fi and its ability to complement other wireless technologies helps bring the promise of connecting everyone and everything, everywhere, closer to reality. It also creates very diverse and densely populated Wi-Fi environments, requiring technological advances to meet the needs of users. Wi-Fi CERTIFIED 6 delivers improvements and new features that enable Wi-Fi devices to operate efficiently even in dynamic environments involving a large variety of device types.

Key capabilities:

Uplink and downlink orthogonal frequency division multiple access (OFDMA) increases efficiency and lowers latency for high demand environments

Multi-user multiple input, multiple output (MU-MIMO) allows more data to be transferred at one time, enabling access points (APs) to handle larger numbers of devices simultaneously

Transmit beamforming enables higher data rates at a given range to increase network capacity

1024 quadrature amplitude modulation mode (1024-QAM) increases throughput for emerging, bandwidth-intensive use cases

Target wake time (TWT) significantly improves battery life in Wi-Fi devices, including IoT clients

Wi-Fi CERTIFIED 6 devices bring enhanced performance to users in demanding environments, from IoT and smart home, to businesses running large-scale, mission critical deployments. Virtual and augmented reality applications such as e-Learning, telepresence, and healthcare monitoring become more attainable using Wi-Fi CERTIFIED 6 technology. Wi-Fi CERTIFIED 6 also provides carriers and public Wi-Fi operators with more capabilities to support next generation connectivity uses in retail settings, stadiums, and transportation hubs, including a growing array of location-based applications and services and bandwidth intensive applications.

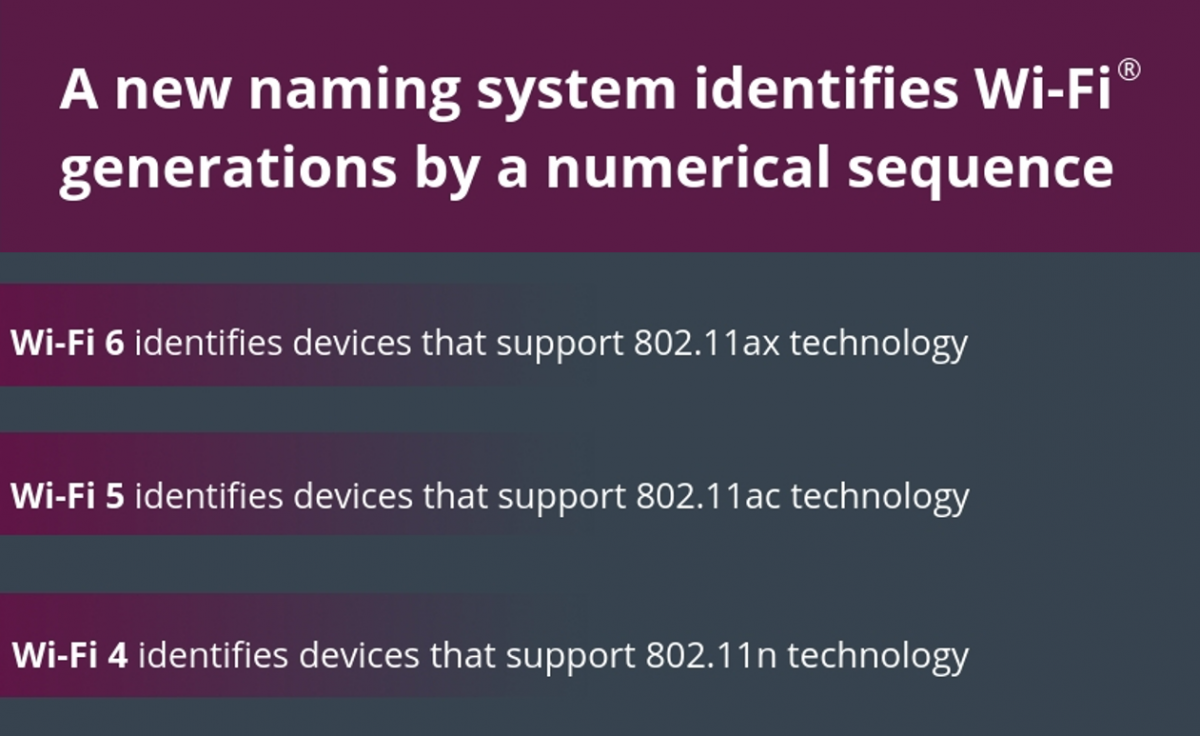

Wi-Fi generations

Identifying device technology

To help users identify devices that provide the latest Wi-Fi experience, Wi-Fi Alliance has introduced simplified generational names that may appear in device names and product descriptions. Wi-Fi devices supporting the latest generation of connectivity are based on the 802.11ax standard and are known as Wi-Fi 6 devices.

Identifying network connections

Wi-Fi devices may also use a user interface (UI) icon on the display to identify the generation of a network connection. The icons will display a Wi-Fi signal indicator and a numerical representation of the connection. Icons will adjust as users move between Wi-Fi networks that provide a different user experience. When a user device displays a signal indicator icon accompanied by the number 6, indicating a Wi-Fi 6 connection, that device is utilizing the most advanced version of Wi-Fi available.

Wi-Fi 6 at CES 2019

Download Additional Resources

Wi-Fi CERTIFIED 6™ Highlights

Next Generation Wi-Fi® Highlights

Next generation Wi-Fi®: The future of connectivity

Wi-Fi 6: High performance, next generation Wi-Fi®

Generational Wi-Fi® User Guide

Generational Wi-Fi UI Visuals

Click to expand...

Source: Wi-Fi CERTIFIED 6 | Wi-Fi Alliance
