Windows 10: Win10 System Image Trouble + Possible Partition Problems

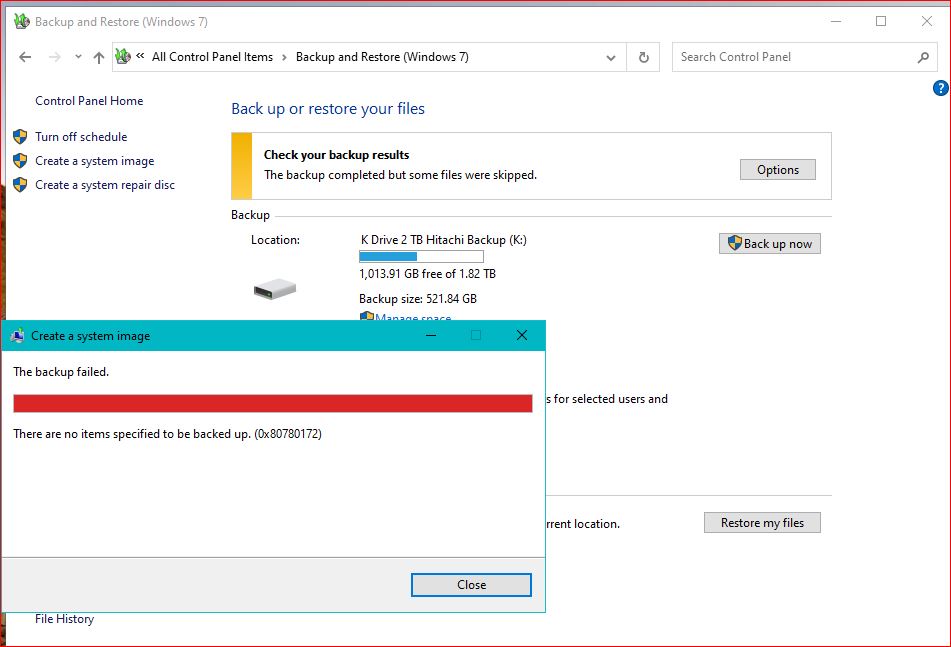

After a recent mobo/proc/ram upgrade I can no long do a System Image. I get the error "No items specified to be backed up."


Previously my PC crashed and failed to boot after my attempt to fix this with some partition tool, not sure which or what I did. After recovering the PC starts with a blue screen asking me which Win10 I want to boot. One Win10 fails, the other is totally normal just like it was before the mystery crash and fail to reboot.

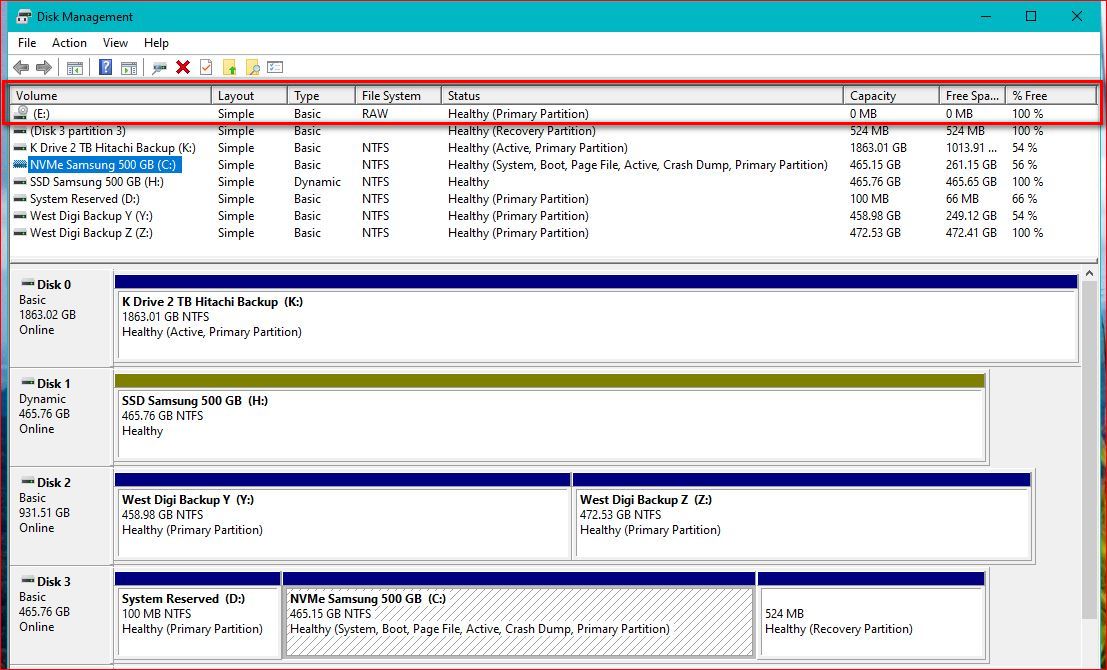

Some illustrative snips.









:)



System Image Problem

I'm getting a head start in case you get on early.

Can you post camera pics to your thread from your phone?

There will be steps later that require attention to detail and I'd feel better if I could see what's on your screen. I had to try the steps more than once when I tested the process and I'd like to avoid that on your machine.

Here's what I'd like to do for the Macrium Rescue steps later on in the process
I'll post the the step, you'll post an picture of the Macrium screen,
I'll echo same screen back if I see something that needs changing or I'll just say Go Ahead

When I confirm that the Macrium screen, you'll make any changes I've highlighted and THEN execute the step

Here's where you begin today's session, we'll get as far as we get and then pick up when you get back home.

Step 1: Safeguard the System Image by moving it to a new folder

1. Connect the Seagate exp drive


2. File Explorer: Navigate to the Seagate drive


3. Create a new Folder named 1_sysImage


4. Move WindowsImageBackup to 1_sysImage

Step 2: List the VHDs in the System Image

1. File Explorer: Navigate to 1_sysImage\WindowsImageBackup\machineName\Backup date-time


2. Press the Type column to sort by Type


3. Post a screen shot



System Image Problem

Hi Nick,

No need to stress.
Since the dl of the windows install media failed twice in a row already we are going to do as Bill suggests.
No use wasting another day on it at this point.

Here is a description of the steps to follow:

- Connect the external drive that contains the Macrium images we made.

-Boot off of the Macrium rescue CD. Make the necessary changes in bios so booting from CD is the highest on the boot order priority list or use the machine's bootmenu (Fn key ? ) to select to boot off of CD.

- From within Macrium select restore. Browse for image 0_SysRes etc. and load it in Macrium.

- Select the drive to restore to: your c: drive. Make sure it is the correct drive. Only one internal drive should be connected at this point.

-Drag and drop the loaded backup image to the beginning of the C:\ partition. It must be fully at the left of the partition.

- Click restore and confirm.

- Once it has finished close Macrium. It will automatically reboot.

-Boot again off of the CD.

-Macrium loads and select restore again.

-Browse for and select 1_Windows from the backup drive. Select the same destination drive and drag and drop it right next to the small partition we just restored. Click restore, confirm the overwrite and let it finish.

-Again close Macrium and reboot once more off of the cd.

-In Macrium on the top left hand side there a menu option that reads something along these lines (I'll load it in a few minutes to verify and correct if necessary) : "Fix Windows boot problems".
Click it.

-Let it finish and reboot off the main hard drive this time.

- Cross your fingers and hopefully Windows will start up.


I suggest not doing this immediately. I hope Bill will have a look at the suggested steps and correct any if need be.

Best, *Wink



System Image Problem

[table][tr][td]Version[/td] [td]Date[/td] [/tr] [tr][td]5.05[/td] [td]8/03/2009[/td] [/tr] [tr][td]5.08[/td] [td]7/21/2009[/td] [/tr] [/table]
Which one is newer?
Only 5.05 was offered on HP for the machine I linked.
The description danced around some of the anomalies we're seen with drives.

Since only 5.05 was offered, I questioned 5.08
Guess we know the answer now - 5.05 failed to flash.
We could spend time trying to figure that out, but IMO it's better on the back burner for now

I think the next step is to try the Macrium sleight of hand to get the System Image restored.
I'd like to get the System Image up and running to do the follwoing

• Copy Nick's data to a folder off of the restored System Image C: drive


• run a Belarc Advisor audit to collect license keys for Nick's software


• there might be other data collection that Nick can do in preparation for the final step

The final step is a clean install, install up-to-date MS and 3rd party software, and restore the copied personal data.

Nick was having difficulty locating the outlook files in the System Image - so getting it back running live is the best I can think of.

Thoughts, suggestions, and objections are always welcome and considered
