  2. Install Driver on Windows PE Environment

    Hi,

    We are trying to install kernel-mode driver to Windows PE, but not able to do so.

    We checked using DevManView tool to check driver in windows PE. But we didn't see the Device object created.

    We suspect that the Driver Service didn't start.

    Given below are the details of the issue:

    Driver Details: SCSIAdapter class filter driver. (SdFilter)

    Steps followed:

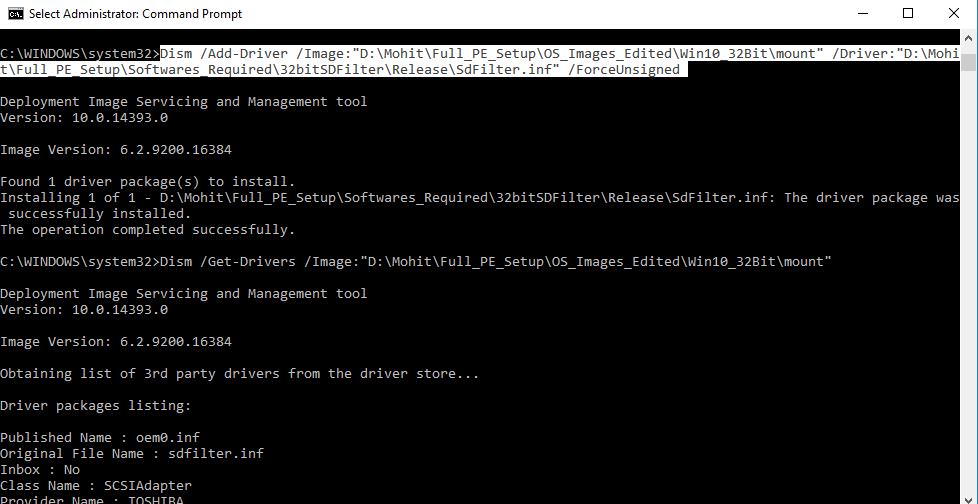

    • Used DISM to edit the Windows PE image offline. (Inset image below)

    Win10Win PE 9b0b98a6-84db-4a3f-be54-b5725e2fb121.png

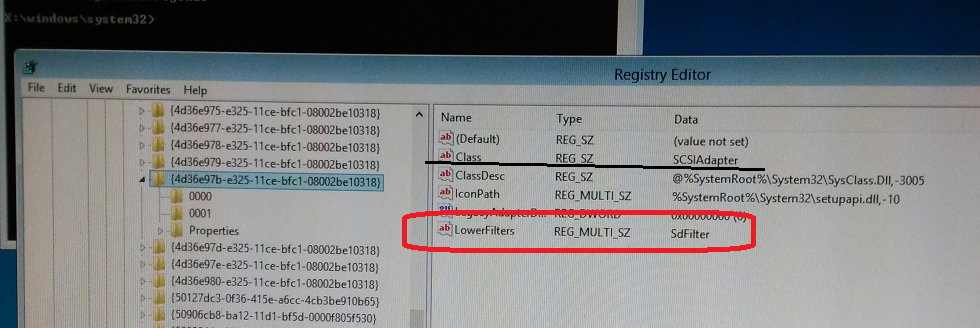

    • Manually added the Driver details to the registry. The registry change is visible after reboot
      (inset image below)

    Win10Win PE 2c3da2e1-8ef6-4e68-9ba2-c69d1a6add0d.png

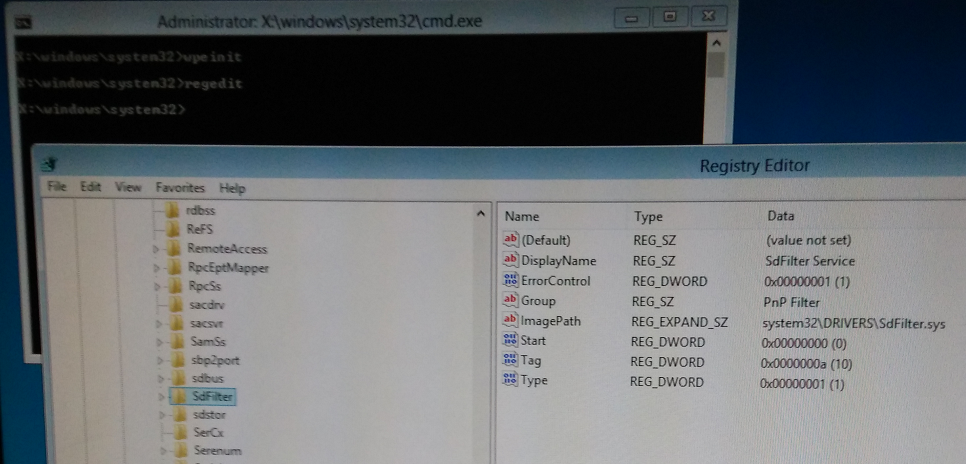

    • Manually added Service (ServicesActive database) to offline image. The registry change is visible after reboot (inset image below)

    Win10Win PE 8130ca1d-e8b0-40b3-8d39-1b5ba1099c6b.png


    But we checked using DevManView tool to check driver in windows PE. But we didn't see the Device object created.

    We suspect that the Driver Service didn't start.

    Can someone please guide how can we add the driver to the Windows PE environment.

    PS: The given filter driver is test signed. So, we suspect that later we will face test signed issue but that will be our second step to debug. Right now, not able to get through the first step.

    Thanks and Regards,

    Rakendra

    rakendrathapa, Jul 29, 2020
    #2
  3. Psyclone Win User
    X800 Pro VIVO to XT PE Bios Mod

    I have a question. I have an x850 pro VIVO that I want to flash to a PE version. In the original post, in the steps listed to perform the flash, it says to download and use the NON PE bios if you are flashing an x850 pro and a x800 PE bios if you are flashing an x800 pro.

    I want to be clear before I do this that, you are in fact supposed to use the regular NON PE bios for the x850. I am just making sure that they are in fact different procedures for the x800 vs the x850, I don't want to mess up and hose my card.

    Psyclone, Jul 29, 2020
    #3
  4. alvin Win User

    Win10Win PE

    How to mod my GeCube X850XT to PE

    Guys hi there, I'm new to flashing the GPU's bios. Currently I just bought X850XT and I wanna mod into PE, so pls guys help me by explaining how to mod in step by step.

    alvin, Jul 29, 2020
